Carson 1/14 3-Axle Stanchion Trailer New edition C907629

Carson 1/14 3-Axle Stanchion Trailer New edition C907629

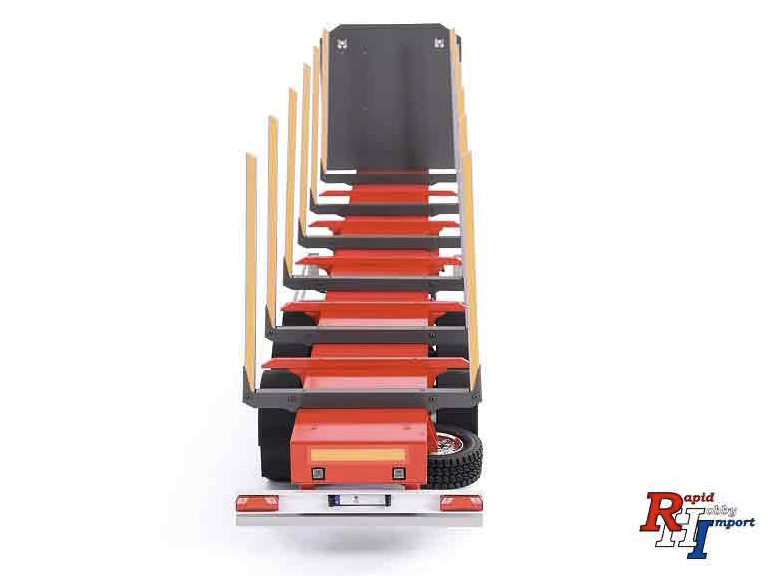

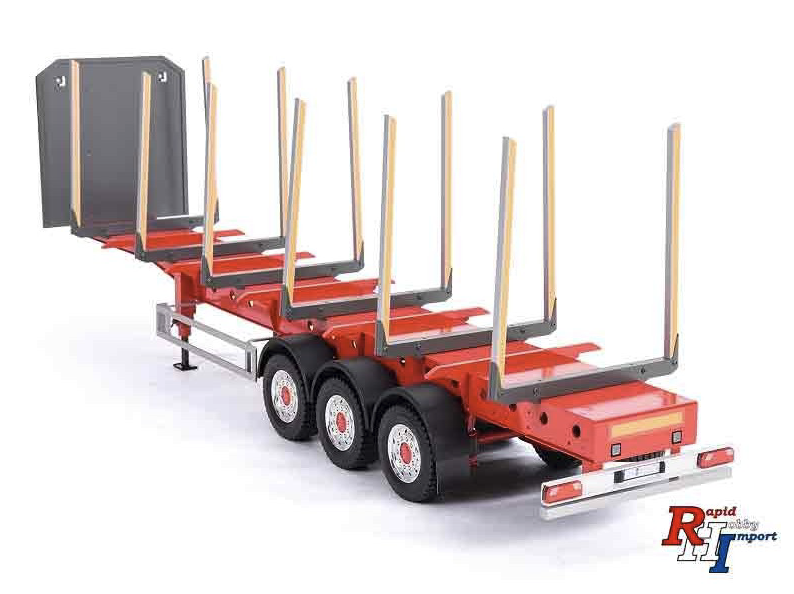

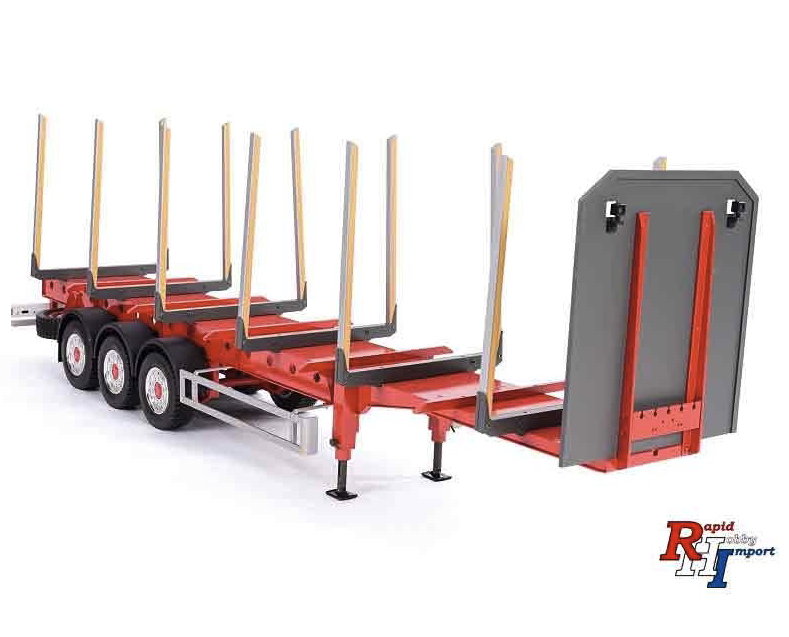

he 3-axle stanchion trailer from CARSON for transporting logs or similar long loads is a perfect complement to the TAMIYA tractors. The basis for the trailer is a newly developed, torsion-resistant frame (sandwich construction) made of 3 and 1 mm laser-cut sheet steel. A new suspension is also included, this can optionally be raised by 8 mm and thus balances the level of the saddle to a higher tractor. This can also be installed without a lift, both suspension variants are included in the kit. The built-in shock absorbers and air spring dummies function as on / off spring travel limiters. This enables a higher axle articulation and reproduces a driving image true to the original. Depending on the load and requirements, the six aluminum stanchions can be steplessly positioned on the chassis or removed. These are loosened or fixed using the two countersunk grub screws. A massive steel front wall secures the load to the front of the tractor. Two work lights (500907144) can be optionally mounted on the front wall and also on the rear frame, the fixings are already provided. A stable underrun protection and a spare wheel holder made of steel complete the detailing of the model.

Optional accessories:
– 500907071 1:14 trailer 7-chamber lighting set (TAMIYA MFC-03/01 compatible)
– 500907144 rectangular headlights (2) 7.2 volts
(Reversing lights and work lights front wall) *
– 500907387 1:14 7.2V 7-chamber LED board Uni (2) *
– 500907381 1:14 7.2-14V license plate light (1) *
* Not compatible with TAMIYA MFC-03/01

– 500907155 1:14 aluminum fifth wheel SAF (MFC compatible)
– 500907159 1:14 alloy rim set wide / round hole (2) running along
– 500907351 1:14 alloy wheel set wide / elongated hole

Technical details:
– Torsion-resistant steel frame in sandwich construction
– Frame made of 3 and 1 mm sheet steel, laser cut and CNC bent
– Solid steel front wall
– Stakes (one-piece) milled from solid aluminum
– The stanchion holder can be loosened using two grub screws and repositioned or removed as required.

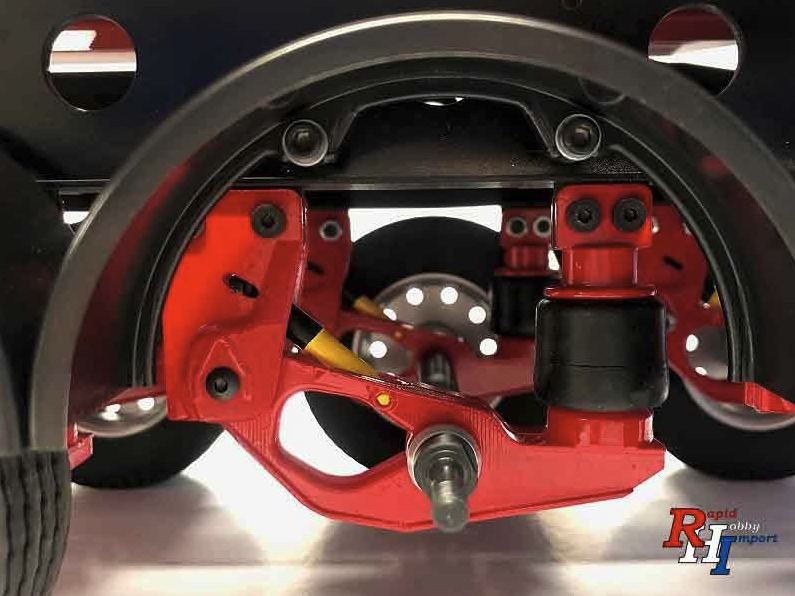

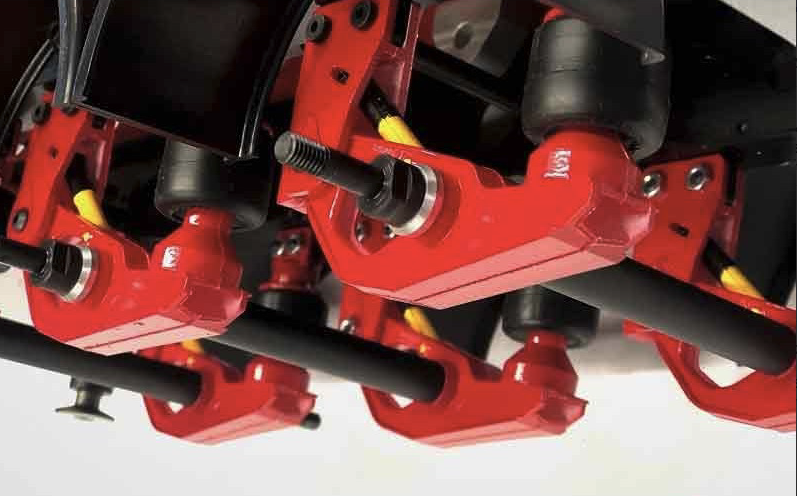

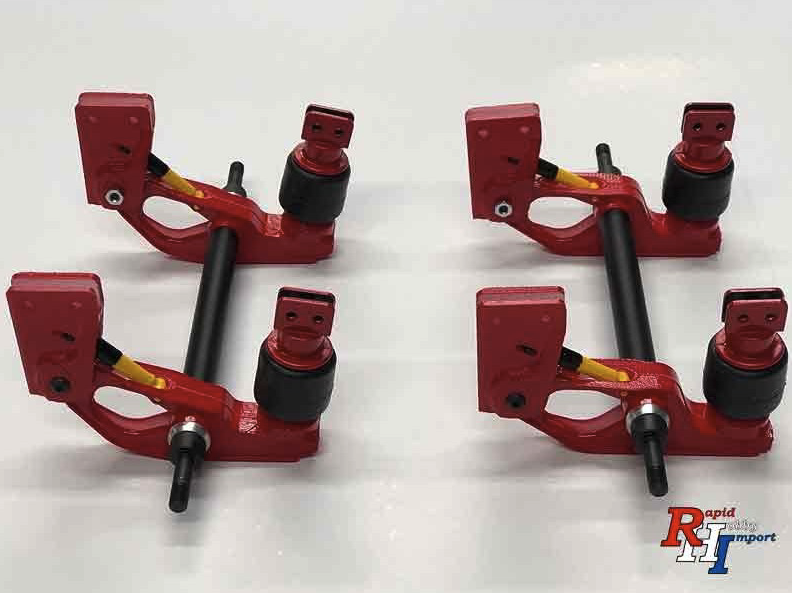

– Detailed semi-trailer axles with dummy air springs, optionally with a height of + 8mm
– Solid underrun protection made of steel (left / right)

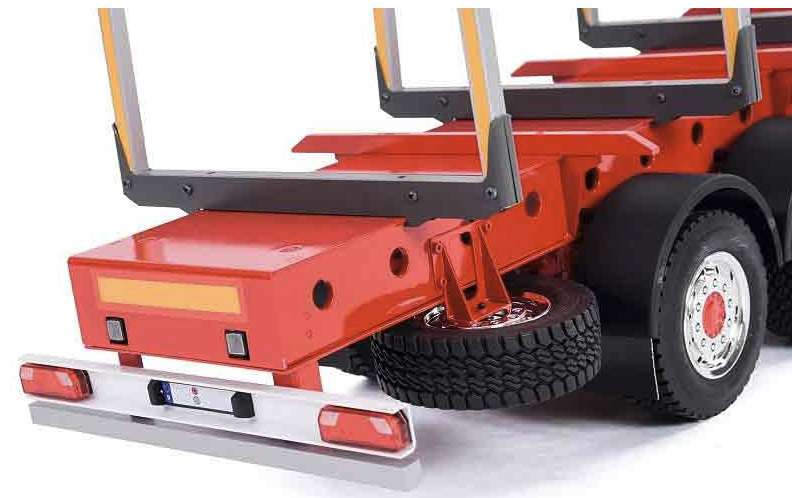

– One-arm spare wheel holder made of steel with spare wheel

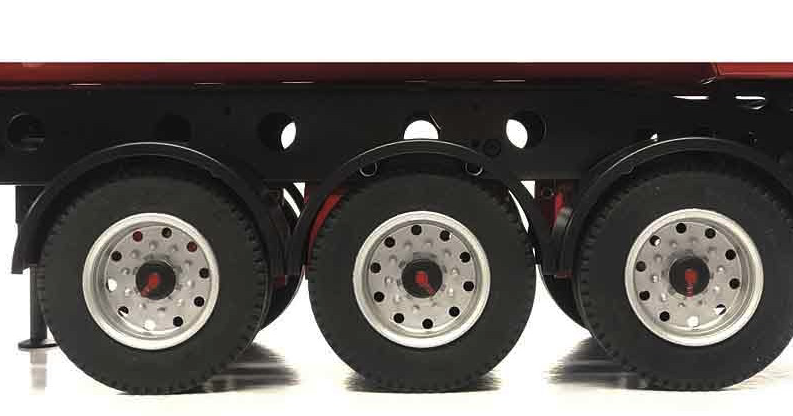

– Chrome rims with ball bearings and wide off-road tires
– 7-chamber rear lights and license plate holder included
– Decor set, detailed building instructions

Dimensions: LxWxH: 980 x 190 x 310 mm, weight: 5,100 g
