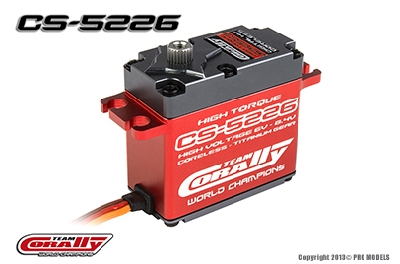

Corally CS-5226 HV Coreless Titanium Gear Servo 6V-8.4V C-52001

Corally CS-5226 HV Coreless Titanium Gear Servo 6V-8.4V C-52001

€ 79,94 inc. BTW

Leverbaar

Qty
Stel een vraag over dit product
Corally CS-5226 HV Coreless Titanium Gear Servo 6V-8.4V C-52001

Ball Beared: Ball Beared
Brandname: TC – Corally
Connector type: JR
Gear Material: Titanium Gears
Height (mm): 36.0 mm
Input Voltage (V): 6.0V – 8.4V
Length (mm): 40.5 mm
Motor Type: Coreless Motor
Protection: Waterproof
Servo Case: CNC alloy
Servo Power – Torque Kg/cm: > 25 Kg/cm
Servo Speed 60°/sec: 0.05 – 0.10 Sec/60°
Servo Technology: Digital Ultra High Voltage
Servo Type / Size: Standard
Speed 60°/Sec @ 6.0V: 0.09 Sec/60°
Speed 60°/Sec @ 7.4V: 0.08 Sec/60°
Speed 60°/Sec @ 8.4V: 0.07 Sec/60°
Spline size: 25T Spline
Torque kg/cm @ 6.0V: 18.3 Kg/cm
Torque kg/cm @ 7.4V: 22.6 Kg/cm
Torque kg/cm @ 8.4V: 25.6 Kg/cm
Weight (g): 72 g
Width (mm): 20.5 mm
