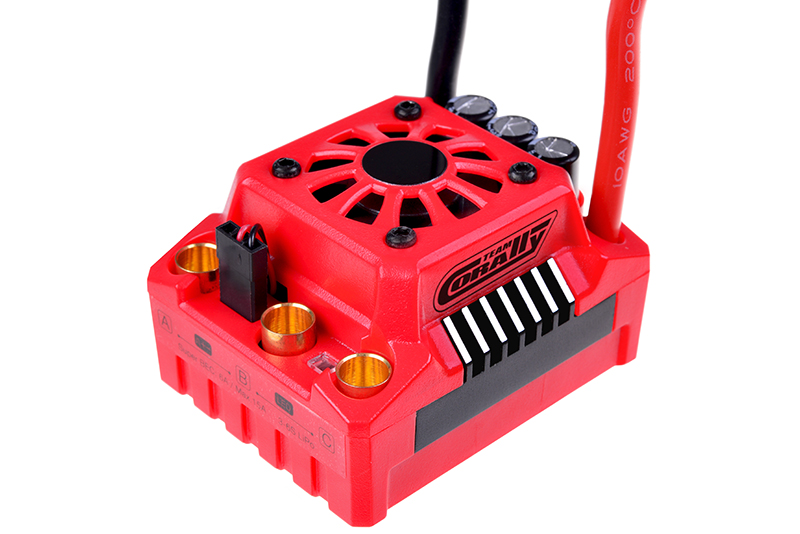

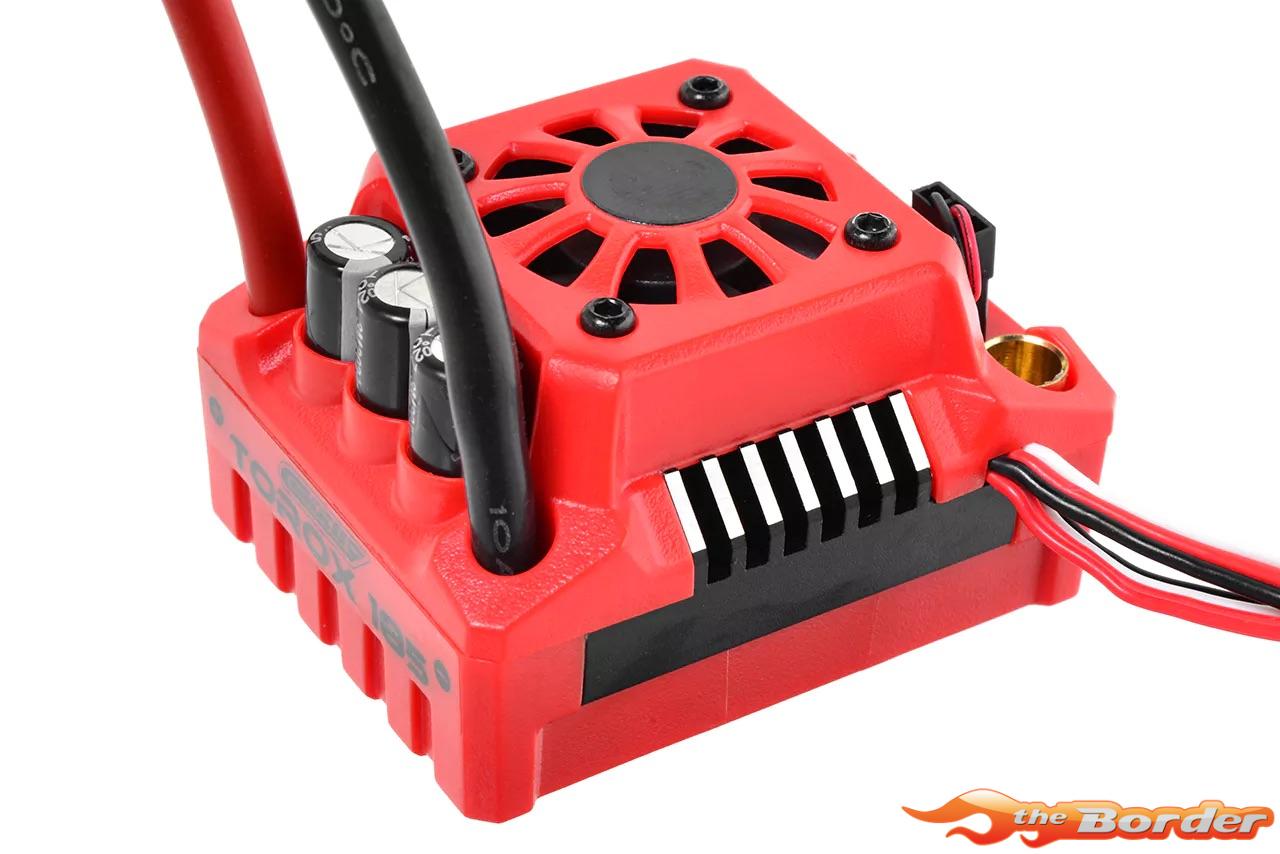

Corally Torox 185 Brushless Speed Controller 2S-6S C-54011

Corally Torox 185 Brushless Speed Controller 2S-6S C-54011

€ 159,95 inc. BTW

Leverbaar

Qty
Stel een vraag over dit product

Corally Torox 185 Brushless Speed Controller 2S-6S C-54011

Max. Cont. Current (A) 185 A
Max. Current (A) 950 A
Input Voltage (V) min. – max. 11.1-22.2
Nr of Li-xx Cells 3-6S
Nr of Ni-xx Cells 9-18 Cell NiMH
Motor Type Sensored / Sensorless Brushless Motor (only in sensorless mode)
Motor Limit 4S LiPo = 3000 Kv (5892 size motor) 6S LiPo = 2400 Kv (5892 size motor)
BEC Voltage (V) 6-7.4 V programmable
BEC Current (A) 6 A
Length (mm) 60.0 mm
Width (mm) 48.0 mm
Height (mm) 36.2 mm
Weight incl. wire (g) 189 g
Programmable Yes
Programming Card Hobbywing LED (optional)
Throttle Mode Forward / Reverse programmable Reverse lockout
Drag Brake 0-16% programmable
Battery Mode NiMH/LiPo programmable
Lipo Cut off programmable
Thermal Protection Temperature 105°C / 125°C programmable
Water Protection Yes
Cooling Fan 30x30x10 mm
Connector (Motor) 6.5 mm female
Connector (Battery) XT90-connector
Battery wire size 10 AWG Car Type
Use 1/8th scale
