CrossRC Crawling JT4 EMO 1/10 RTR Orange/ White 90100091

CrossRC Crawling JT4 EMO 1/10 RTR Orange/ White 90100091

Complete builded included Light and Radio

Ready to run

need battery + charger

The JT4 model originated in the 1950s. It has a very powerful off-road vehicle chassis. The non-load-bearing body structure has evolved many important vehicles in different fields. It can be easily controlled whether it is military or civilian, long-distance rally, and off-road travel.

EMO JT4 features a front engine (motor), door bridge, two-speed, and differential lock.

The chassis is full of materials to meet a variety of different gameplays. A low speed climbing car is a step-by-step amplification of the motor torque through multi-stage gears, so that the control can be more linear and easier to climb obstacles. Very important, crossrc uses a large number of powder metallurgy teeth made of high-carbon steel raw materials to match with integrated cutting gears. The first-stage deceleration adopts imported nylon material, injection-molded large teeth, and has added a limited slip mechanism. The vehicle transmission is both rigid and flexible, and the running noise is also well controlled.

In order to cope with various harsh environments, ABEC3 level (competitive RC off-road vehicle use level) rubber seal cap bearings are selected as standard for all vehicle bearings. Under normal climbing off-road scenes, the bearings are basically maintenance-free.

The shock absorber is an important assembly that affects the attitude and support strength of a climbing car. The cylinder body of the EMO JT4 shock absorber is made of high-quality aluminum alloy CNC processing. The spring adopts a double-pitch integrated spring. The standard 15W 375CST is suitable for the original vehicle powered mountain climbing and outdoor climbing. If you need to cross at high speed or climb the site, you need to change the damping oil mark appropriately.

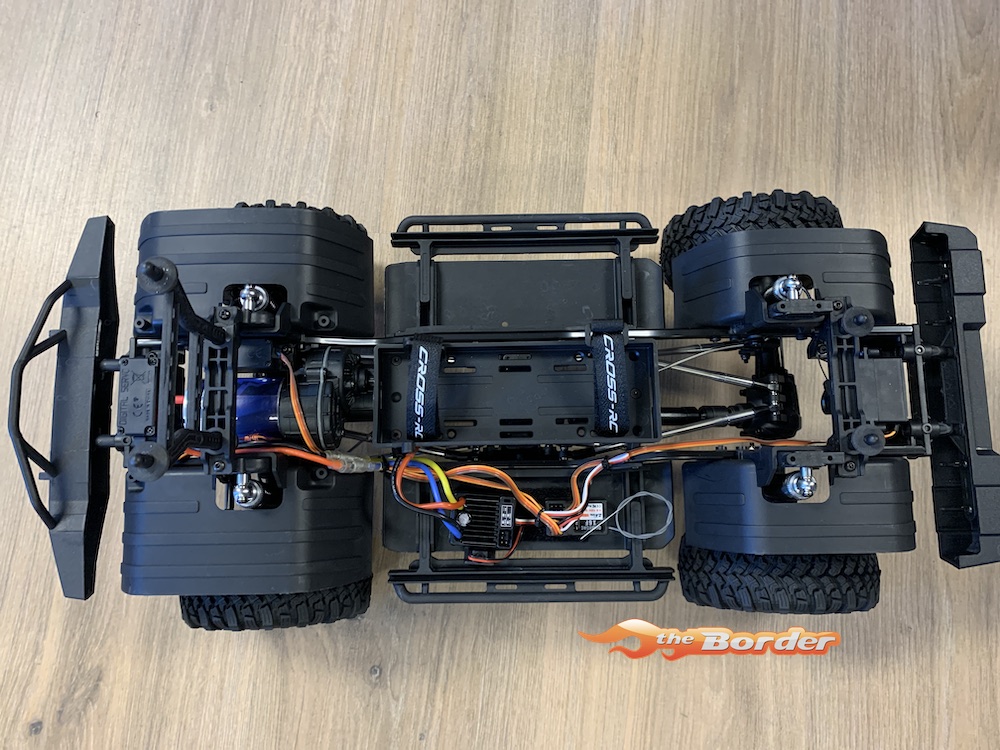

The JT4 chassis uses a more simulated Panhard-style multi-link connection with the bridge body, and the steering gear is installed at the beam to further simulate the position of the steering gear of the car and better hide it. In order to improve the climbing performance and the reliability of the tie rod, JT4 uses a stainless steel integrated tie rod, which is directly connected to the ball stud, eliminating the need for washers and screws to install, and at the same time lowers the center of gravity of the chassis.

In order to improve the grip performance during climbing, the inner and outer tires of EMO JT4 are made of specially formulated professional materials to achieve the softest level under the premise of ensuring support. At the same time, the RTR and KIT versions are equipped with metal tire wheels as standard.

EMO JT4 can also be upgraded and modified according to different gameplay requirements.

• Original 1950s styling
• Realistic portal style axles
• Remote locking diffs
• ABEC3 rubber sealed bearings
• Scale aluminum shocks
• Metal wheels
