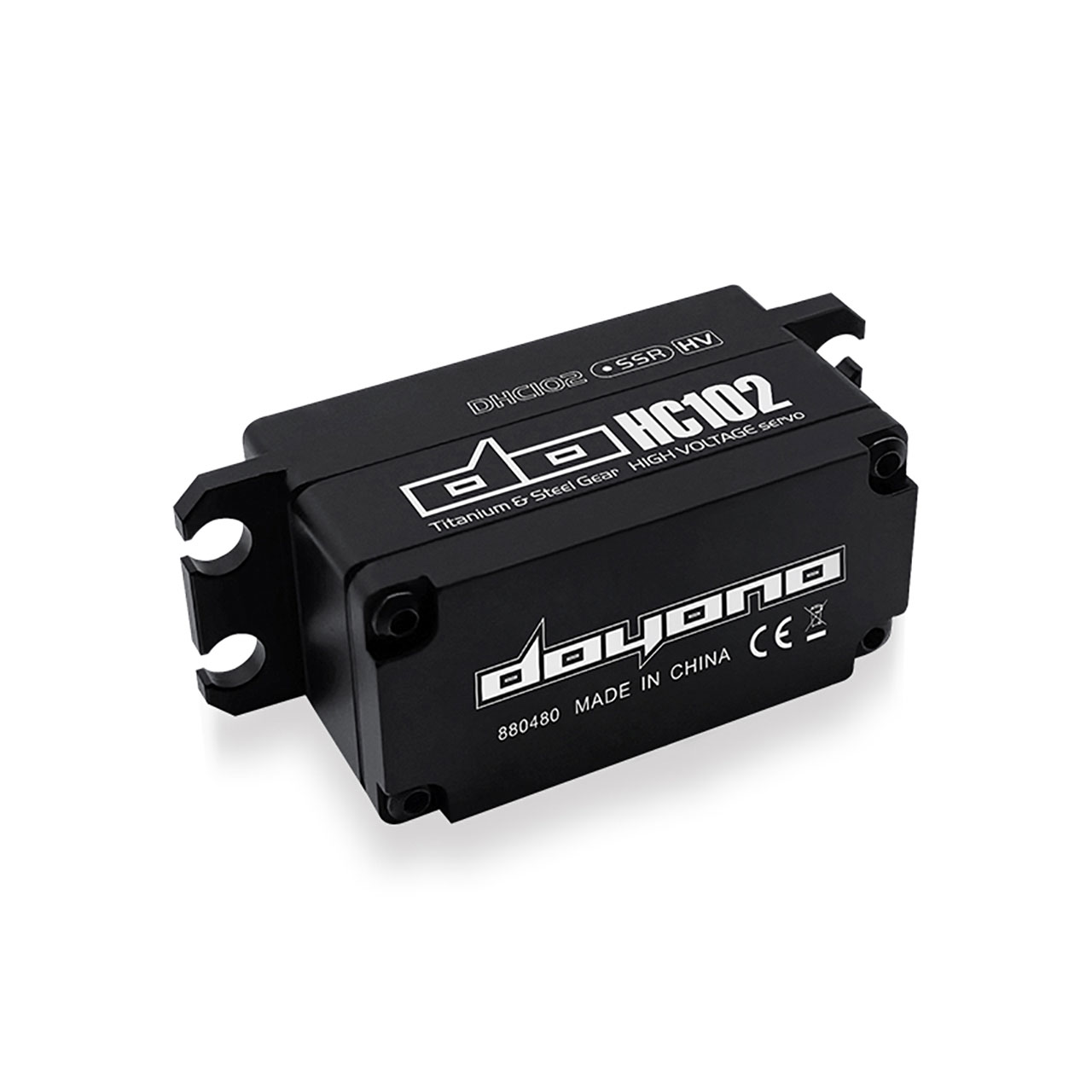

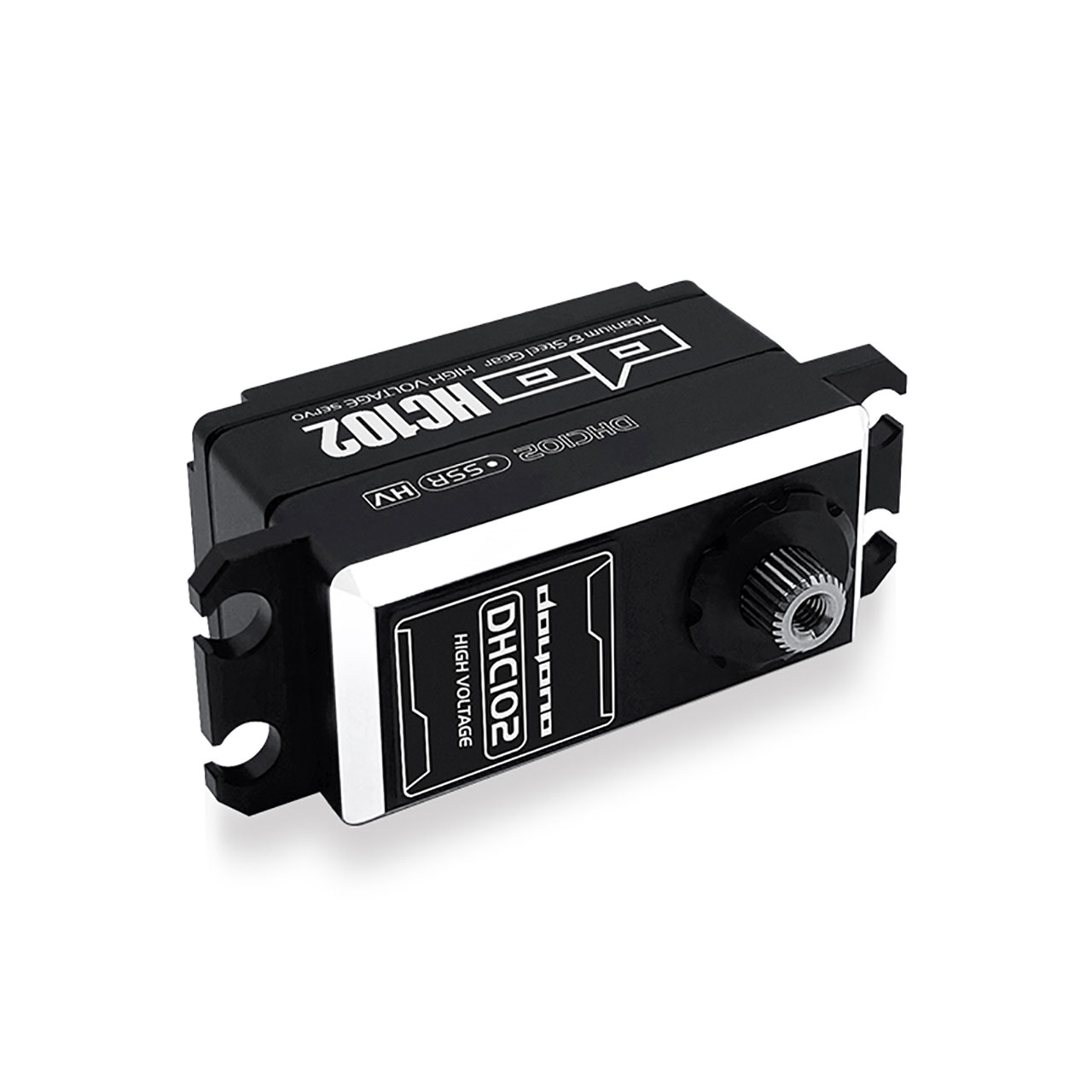

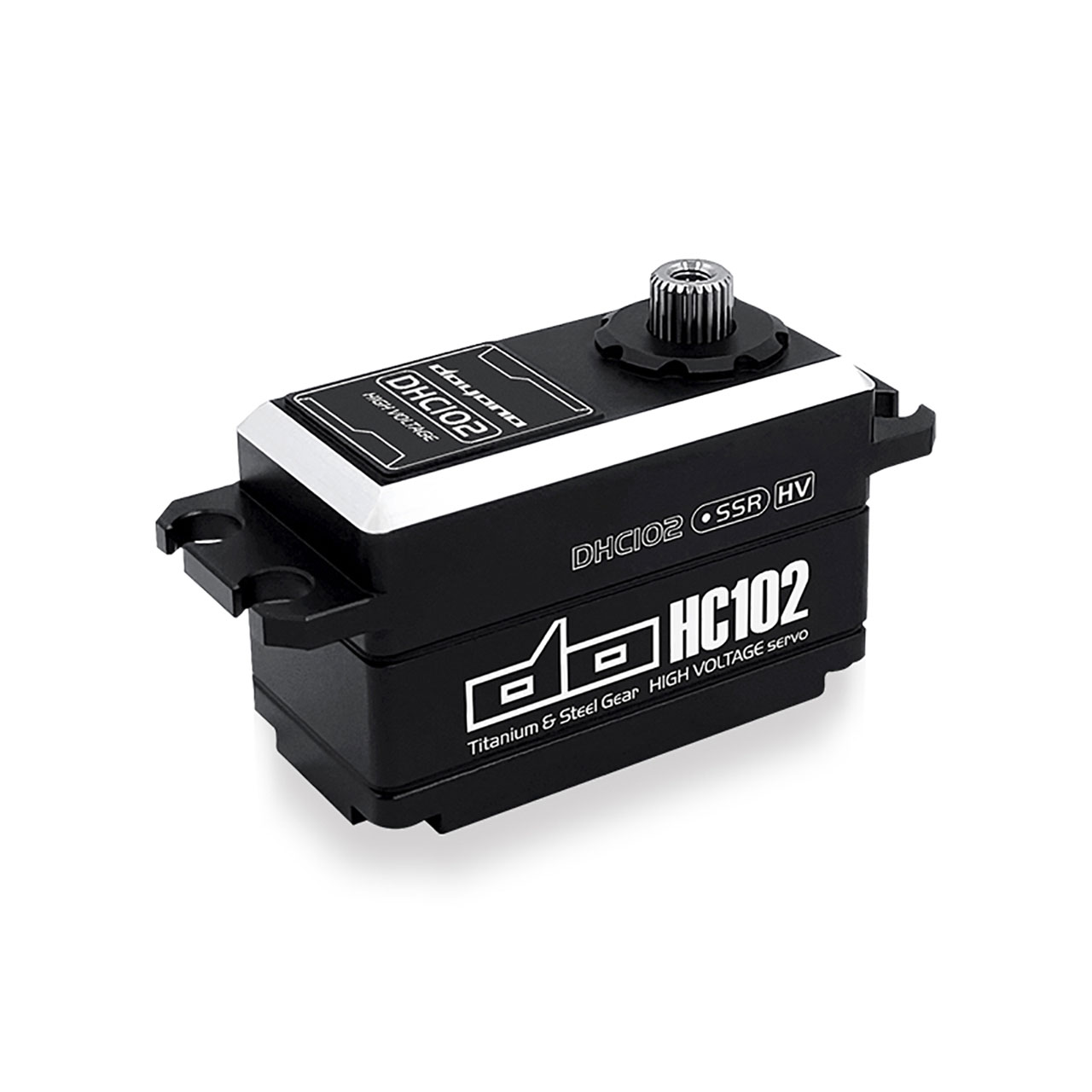

Doyono High Voltage Low Profile Servo full Metal 15KG/0.05sec DHC102

Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 15kgcm and coreless motor has a titanium steel gear and an aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure.

Features:

  • High Voltage Servo
  • Gears made of durable titanium and steel
  • Lightweight aluminum housing
  • Operating Voltage: 6.0-8.4V
  • 2µs dead band, 1520µs neutral point
  • 180mm connection wire length

Technical Specifications:

Voltage: 6.0V 8.4V
Speed: 0.073sec 0.054sec
Torque: 11.0kgcm 15.0kgcm
Motor: Coreless
Gear: Titanium / Steel
Bearing: yes, dual
Max. Travel: ~115° (bei 800: 2200µs)
Quiescent Current: 4mA @6.0V
Rated Current: 0.2A @6.0V
Blocking Current: 2.6A @6.0V
Dimensions: 41.0×20.0x26.3mm
Weight: 55.0g
Output Gear: 25T
Application: 1/10 On-Road and Off-Road
