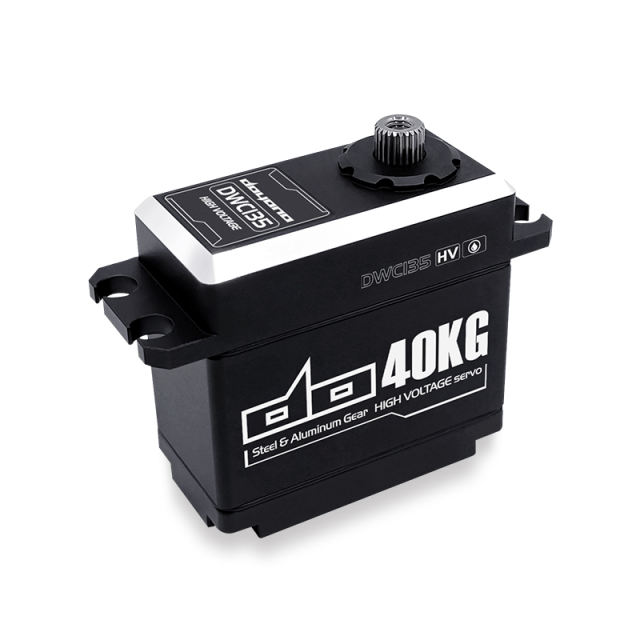

Doyono High Voltage Servo full Metal 40KG/0.18sec DWC135

Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 40kgcm and coreless motor has a aluminium steel gear and an aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure.

Features:

  • High Voltage Servo
  • Gears made of durable aluminium and steel
  • Lightweight aluminum housing
  • Waterproof
  • Operating Voltage: 6.0-7.4V
  • 2µs dead band, 1520µs neutral point
  • 360mm connection wire length

Technical Specifications:

Voltage: 6.0V 7.4V
Speed: 0.21sec 0.18sec
Torque: 33.0kgcm 40.0kgcm
Motor: Coreless
Gear: Aluminium / Steel
Bearing: yes, dual
Max. Travel: ~110° (bei 800: 2200µs)
Quiescent Current: 40mA @6.0V
Rated Current: 0.2A @6.0V
Blocking Current: 2.5A @6.0V
Dimensions: 40.7×20.5×38.9mm
Weight: 84.0g
Output Gear: 25T
Application: RC Crawler, 1/10 and 1/8 Off-Road, Electric Boats
