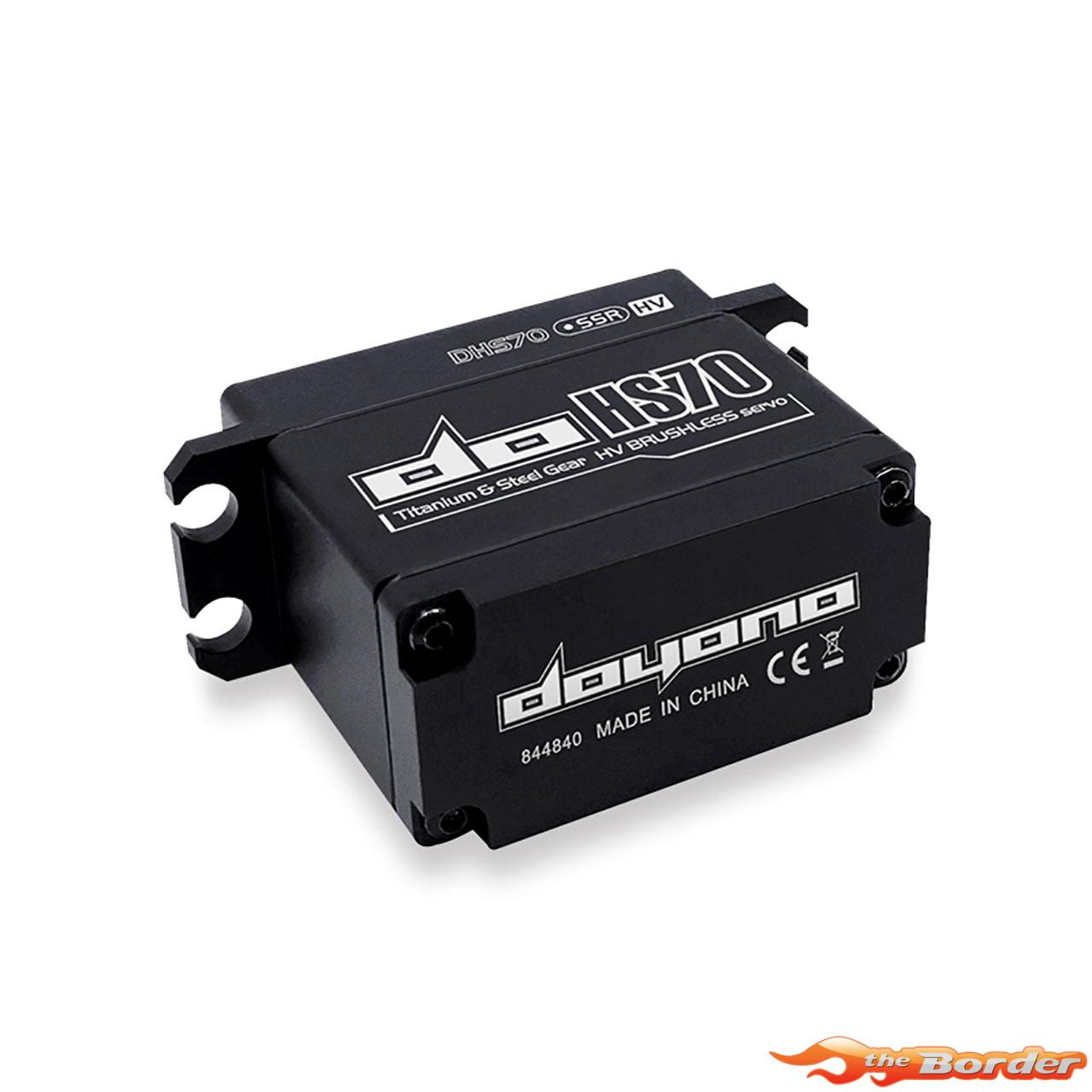

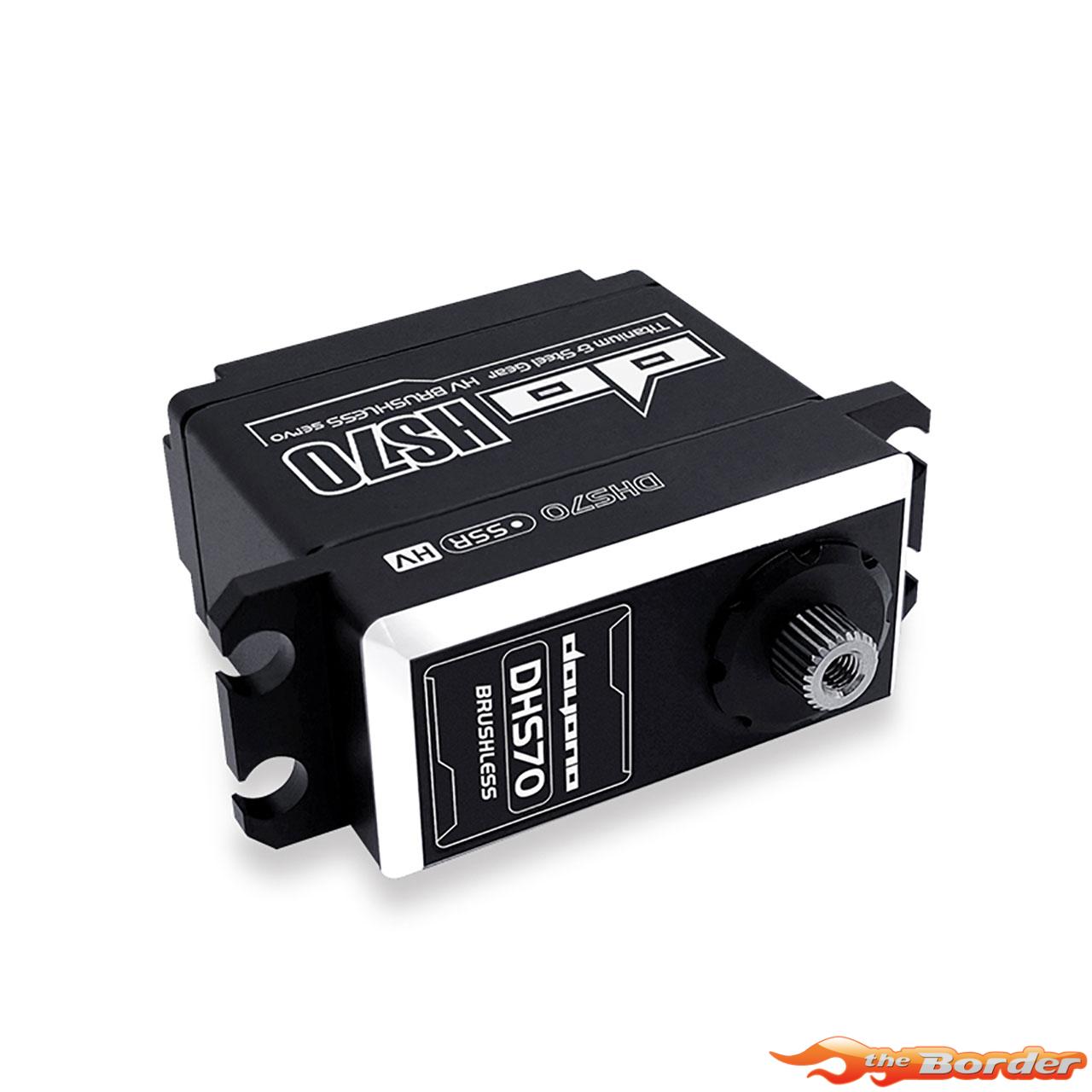

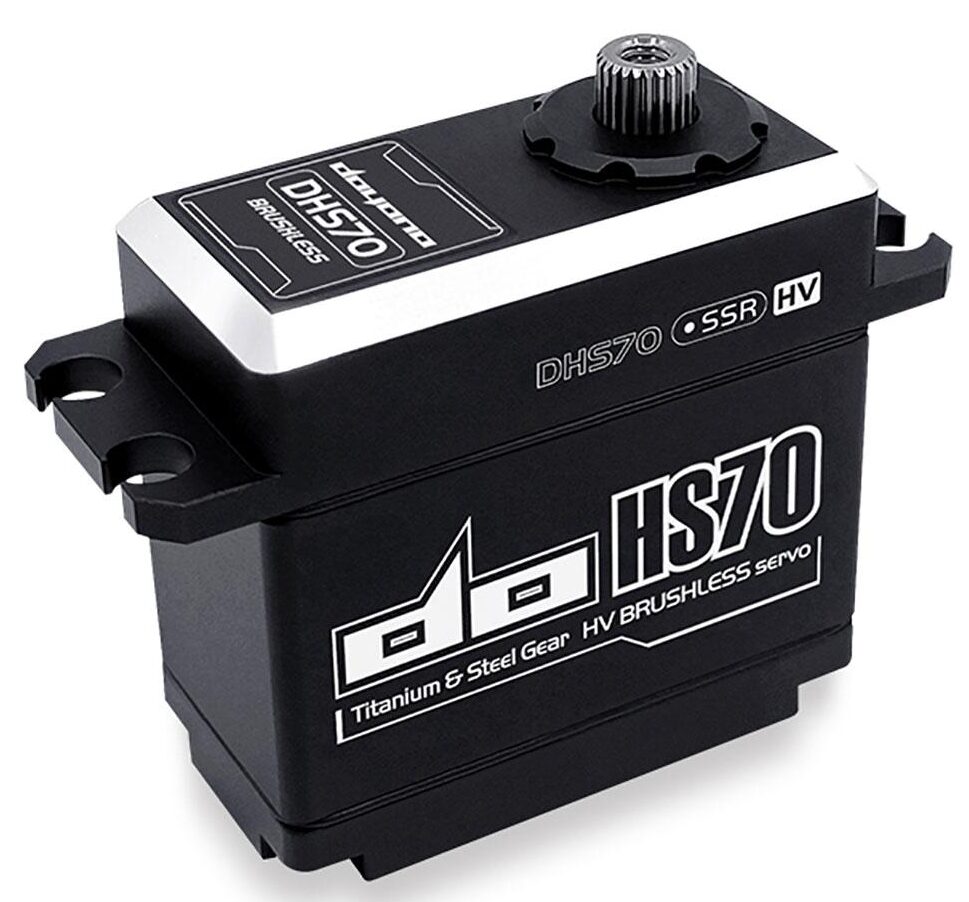

Doyono HV Brushless Servo full Metal 70KG/0.012sec DHS70

Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 70kgcm and coreless motor has a aluminium steel gear and an aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure.

Features:

  • High Voltage Servo
  • Gears made of durable aluminium and steel
  • Lightweight aluminum housing
  • Waterproof
  • Operating Voltage: 6.0-7.4V
  • 2µs dead band, 1520µs neutral point
  • 360mm connection wire length

Technical Specifications:

Voltage: 6.0V 7.4V
Speed: 0.165sec 0.12sec
Torque: 56.0kgcm 70.0kgcm
Motor: Brushless
Gear: Aluminium / Steel
Bearing: yes, dual
Max. Travel: ~110° (bei 800: 2200µs)
Quiescent Current: 60mA @6.0V
Rated Current: 0.2A @6.0V
Blocking Current: 3.8A @6.0V
Dimensions: 40.7×20.5×38.9mm
Weight: 84.0g
Output Gear: 25T
Application: 1/5 & 1/8 Off-Road
