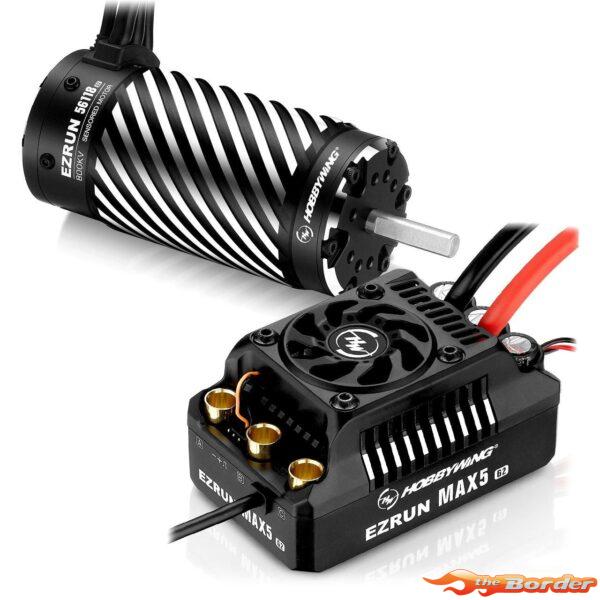

Hobbywing Combo EZRUN MAX5 G2 56118SD/800KV 1/5th ESC 38010602
HobbyWing Combo EZRUN MAX5 G2 56118SD/800KV 1/5th ESC 38010602
This is a great replacement ESC for the Traxxas X-Maxx or XRT for example. It can handle 8S and 1000KV motors.
Sensored mode, enhanced performance
The motor is strong, explosive, and has a stable output power with an excellent linearity at low speed to allow the vehicle to easily realize various maneuvers.
The control is easy when there power is limitless be it violent start-up, straight-line high-speed, flying slopes, etc.
Perfect match for EzRun MAX5 HV G2 ESC
The motor achieves perfect compatibility when used together with the EzRun MAX5 HV G2 ESC.
The ESC/Motor combination is sensored and provides a smooth and percise control experience to the users.
It is equipped with overheat thermal protection function to avoid overheating the motor.

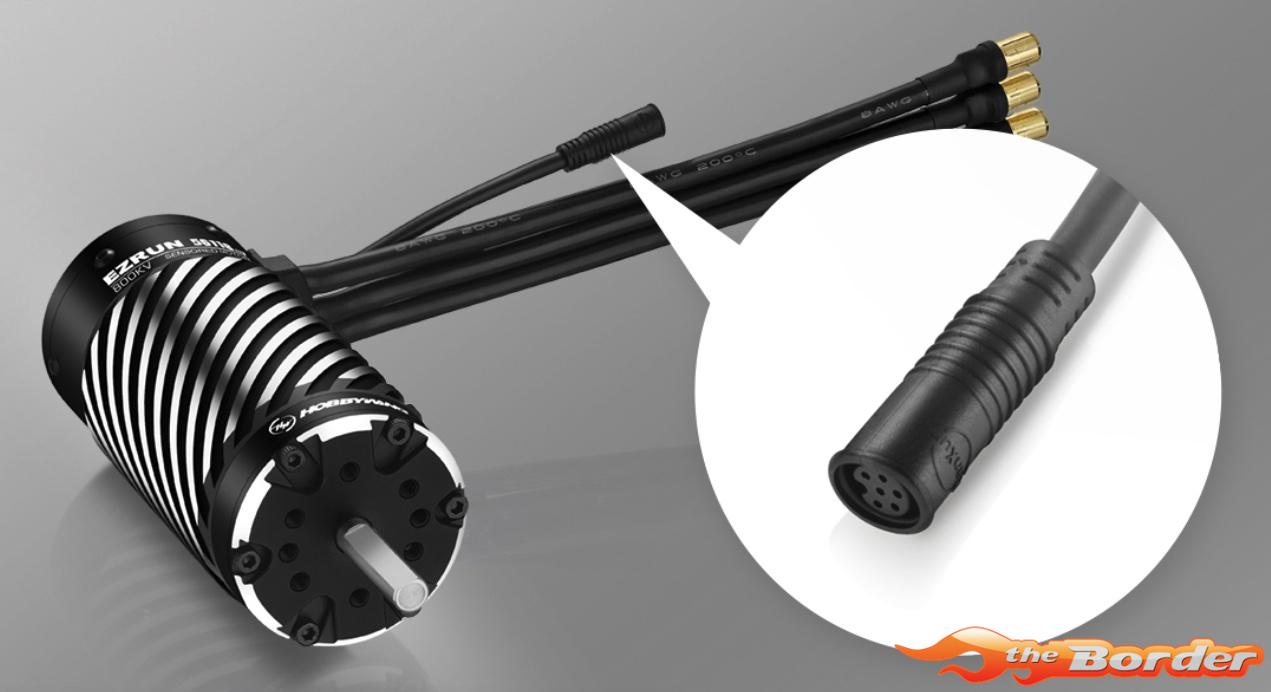

New sensor wire interface, upgraded waterproof protection
The new sensor wire interface enhances the motor protection level and solves waterproof problems faced by traditional interfaces.
Detachable module design for easy maintenance
The motor adopts a modular detachable structure design, which is convenient for daily cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.
Product Name | EZRUN MAX5 HV G2 | |
Product Number | 30104200 | |
Type | Scale
Brushed/Brushless Sensored/Sensorless Waterproof |
1/5th
BL SD Yes |
Specifications | Cont./Peak Current
Input Voltage BEC Output |
250A/1600A
6-12S Lipo 6V/7.4V/8.4V adjustable, continuous current 8A (Switch-mode) |
Wires & Connectors | Input Wires
Input Connectors |
Black-8AWG-200MMmm*1/Red-8AWG-200MMmm*1
8.0mm Bullet Connectors (Female) |
ESC Programing via | SET Button on ESC
LED Program Box LCD Program Box OTA Programmer Program Port |
Not Supported
Supported Supported Supported Independent programming port |
Fan | Size
Output Wires Input Connectors |
45x45x10mm
5-8.4V Powered by BEC |
Data Recording | Extreme value
Real-time Data Historical data (Graph) |
Supported(LCD)
Supported Supported |
Firmware | Firmware Upgrade | Supported |
Size & Weight | Size
Weight |
94.5*59.4*50.9mm
428.5g (Included input wires) |
