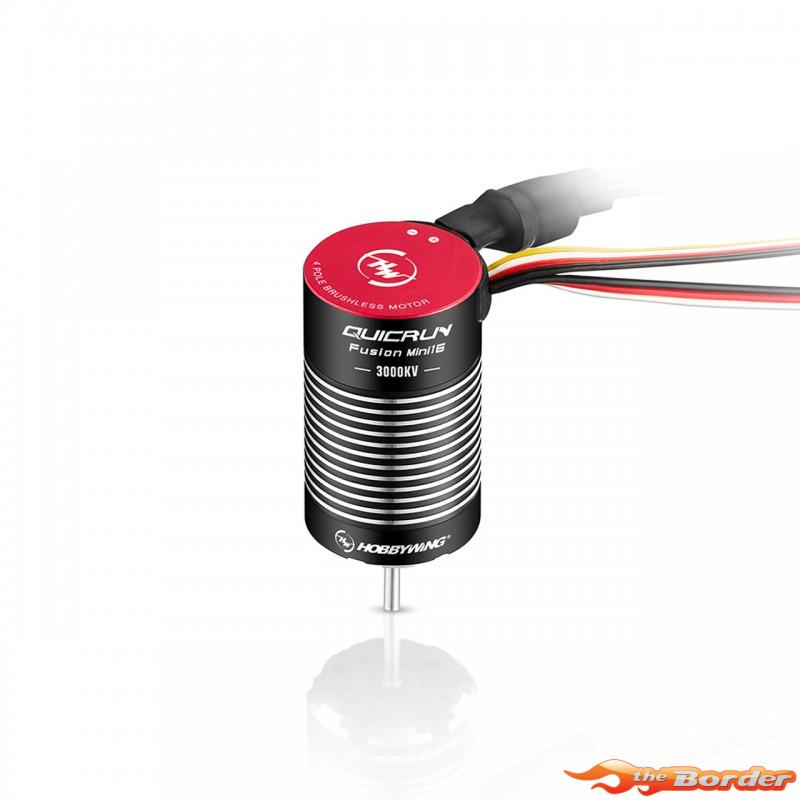

Hobbywing Quicrun Fusion Mini16 370Spec 3000KV for 1/16 Crawler 30120403
Dit is een Quicrun Fusion motor & ESC combo: de ESC zit ingebouwd in deze motor, nóg ruimte besparender in je 1/16 crawler!
Integrated design
The Fusion mini16 is the first commercialized FOC integrated power system suitable for 1/18th and 1/16th scale models in the industry.
The frame layout is compact 24*42mm and lightweight 72g (including wires and plugs).
The petite size of the fusion mini16 is aesthetically beautiful and solves wiring issues on smaller crawling vehicles.
Adjust drag brake force in real time

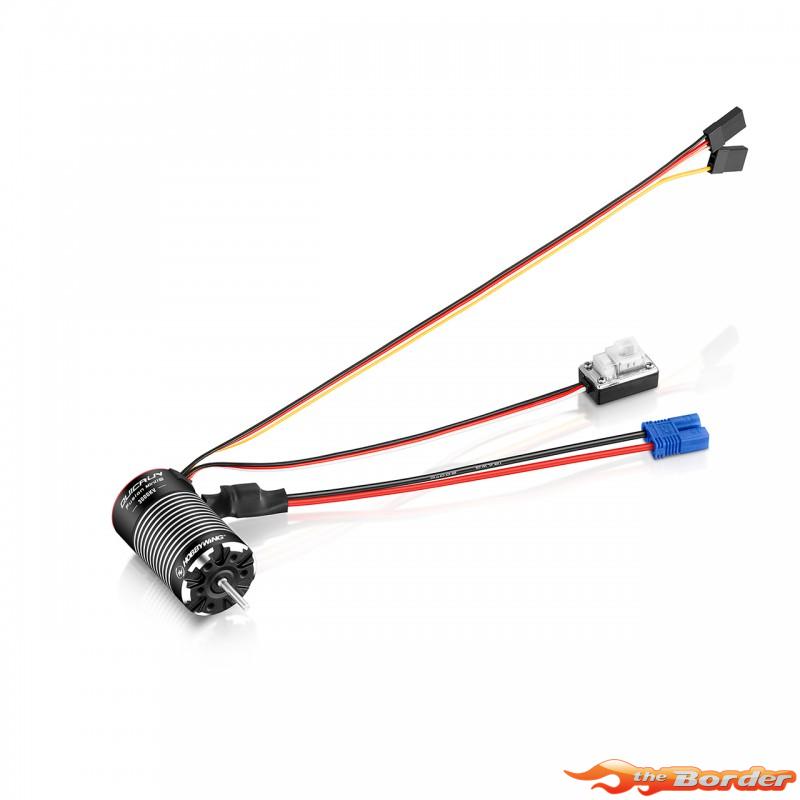

Connect the yellow signal wire to the open channel on the receiver to adjust the drag brake force in real time.
Adjusting drag brake on the fly can be achieved to meet various application environments.
Note: The yellow signal wire is also the programming wire.
Please refer to the instruction manual for the connection method.
FOC drive, good linearity, high torque, nearly silent
The Fusion mini16 is equipped with a FOC drive method.
The large torque and excellent linearity when operating at low speed further
exceeds standard brushless systems, and matches the feel and control of brushed systems.
The Fusion mini16 is nearly silent.
Smart Torque Output & Closed-loop
Speed Control for Easy Control
Up the hill
The Fusion mini16 system automatically increases the torque output to overcome resistance and accelerate up the hill.
Going down the hill
The ESC automatically reduces the torque output and stabilizes the vehicle speed when going down the hill.
Note: When the operating mode is set to normal mode, there is no fixed speed function, which is similar to a brushed effect.
Supports optional motor adapter, compatible with 25.4mm mounting holes
The motor built in a set of mounting holes.14mm-M2.51 16mm-M2.52 17mm-M33When the frame mounting hole is 25.4mm,
an optional motor mounting conversion plate is available
for purchase to adapt to more large-scale vehicle models.
Wide applicability
The power system is not only suitable for 1/16th and 1/18th climbing models also suitable for 1/14th, 1/12th and 1/10th lightweight single-speed scale models.
(≤1.8kg, gear ratio ≥60).
Note: Since the proportions and sizes of each manufacturer are different, please check whether there is enough space for the motor in the frame before purchasing. For example, Traxxas 1/18 TRX-4M is not suitable for this power system.
Supports three running modes
The Fusion mini16 meets a variety of application needs.
-
1 fixed speed mode
(direct forward and reverse)
-
2 No fixed speed function normalÂ
mode
(forward and reverse with brake)
-
3 No fixed speed functionÂ
normal mode
(direct forward and reverse)
Specificaties:
Sensored
Waterproof
Brushless
Continuous Current: 30A
Peak Current: 80A
Input Voltage: 2S – 3S LiPo, 6-9 Cells NiMH
BEC Output: 6V/7.4V Adjustable, 4A Current (4A continous, 10A peak)
KV: 3000KV
Motor Poles: 4
Input connectors: EC2
Input wires: Black 18AWG 150mm, Red 18AWG 15mm
LED Program Box: supported
LCD G2 Program Box / LCD Pro: Supported
OTA Programmer: Not Supported
Firmware upgrade: Not Supported
Diameter: 24mm
Lenght of Motor: 42mm
Shaft diameter: 2.3mm
Exposed Shaft Length: 13.5mm
Weight: 72g (including wires & Connectors)
