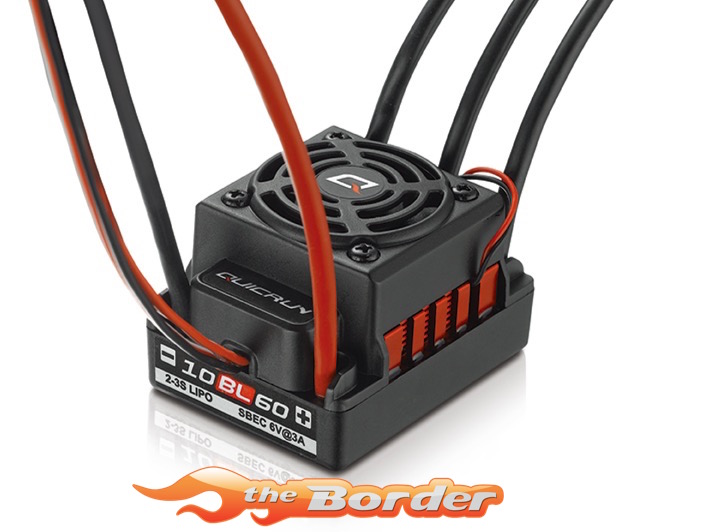

Hobbywing QUICRUN WP10BL60 waterproof 30107100

Hobbywing QUICRUN WP10BL60 waterproof 30105060004
Hobbywing QUICRUN WP10BL60 waterproof 30105060004

€ 67,95 inc. BTW

Leverbaar

Qty
Stel een vraag over dit product

Hobbywing QUICRUN WP10BL60 waterproof 30107100

Efficient Cooling System
Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRN WP-10BL60,
which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum
heat sink housing, combined with reticulate heatsink and high-performance cooling fan can keep
your ESC as cool as possible.

Type
Scale
1/10th
Brushed/Brushless
BL
Sensored/Sensorless
SL
Waterproof
WP
Specifications
Cont./Peak Current
60A/360A
Input
2-3S LiPo/6-9 Cells NiMH
BEC Output
Switch Mode:6V/3A
Wires & Connectors
Input Wires
Red-14AWG-150mm*1/Black-14AWG-150mm*1
Output Wires
Black-14AWG-100mm*3
Input Connectors
No
Output Connecotors
4.0 Gold Connector (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)
Fan
Size
30.0×30.0x10.0mm
Voltage Range
5-7.4V
Powered by
Powered by BEC
ESC Programing via
SET Button on ESC
Supported
LED Program Box
Supported
LCD Program Box
Not Supported
WiFi Module
Not Supported
Program Port
FAN/Program Port
Firmware
Firmware Upgrade
Not Supported
Size & Weight
Size
48.5×38.0x32.0mm
Weight
90g
Applications
Motors
SL BL Motors/SD BL Motors(only in SL mode)
Vehicles
1/10th Touring Cars/Buggies/Trucks/Monster Trucks
KV Rating/T Count
2S LiPo: 1/10th Touring Cars KV≤6000, 1/10th Buggies KV≤4000
3S LiPo: 1/10th Touring Cars KV≤4000, 1/10th Buggies KV≤3000
(36XX Series of Motors)
