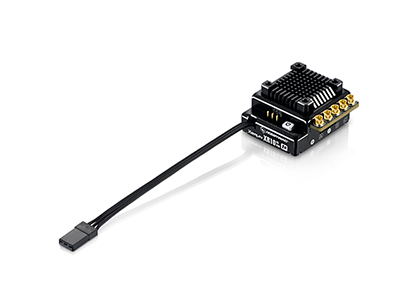

Hobbywing XeRun XR10 PRO-1S Heavy Duty 30112609

Special Design for 1/12 th Scale Top Racing

Reliable hardware combined with great software (contains 5 common ready-to-use profiles) creates an ideal power solution to 1/12 th scale top touring car racing.

High reliable heat dissipation system

Internal power board covered with copper heat conducting confluence strip which is HobbyWing’s patent technology. The strip is convenient for transferring the internal heat rapidly to an integrated shell radiator, together with a high-speed heat dissipation fan, which build a high reliability heat dissipation system, to ensure the ESC is always in the best state of heat dissipation.
Super BEC

Internal BEC features booster circuitry can output the current/voltage of up to 6A/6V and power various servos without connecting any extra receiver battery.

Built-in Electronic Switch & Capacitor Module

Built-in electronic switch (with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design) and capacitor module save space and make the wiring simple and neat.

Programming/Upgrading/Data Reading Wirelessly

With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.

Adjustable Throttle & Brake PWM Frequencies

Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).

Separate Programming/Fan Port

The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LCD program box or WiFi module for ESC programming.

Innovative Data-logging Function

This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows users to check those data via a LCD program box to analyze .

Scale – 1/12th

Brushed/Brushless – BL

Sensored/Sensorless – SD

Waterproof – No

Specifications

Cont./Peak Current – 120A/830A

Input Voltage – 1S Lipo/3-4 Cell NiMH

BEC Output – Switch Mode: 6V@3A

Wires & Connectors

Input Wires

Red-12AWG-200mm*1 Black-12AWG-200mm*1
Red-14AWG-200mm*1 Black-14AWG-200mm*1

Output Wires

Black-12AWG-200mm*3 Black-14AWG-200mm*3

Input Connectors – No

Output Connectors – No

ESC Programing via

SET Button on ESC – Not Supported

LED Program Box – Not Supported

LCD Program Box – Supported

WiFi Module – Supported

Program Port

Separate Program Port

Firmware

Firmware Upgrade – Supported

Size & Weight

Size – 37.5x31x31mm
Weight – 46.7g
Motors – SL BL Motors / SD BL Motors

KV Rating/T Count
1S LiPo: =3.0T(* ESC in Zero-timing/Blinky Mode)
