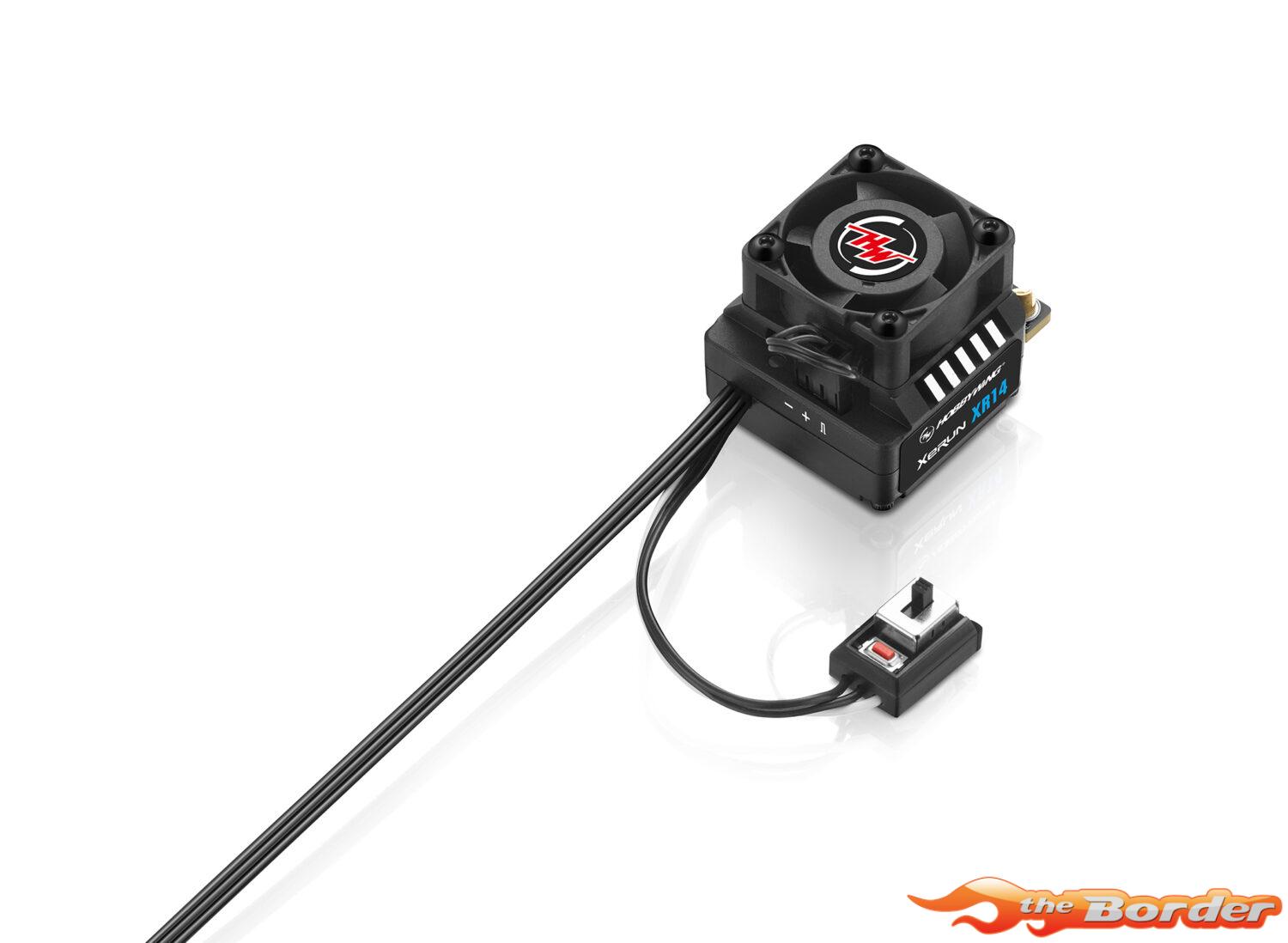

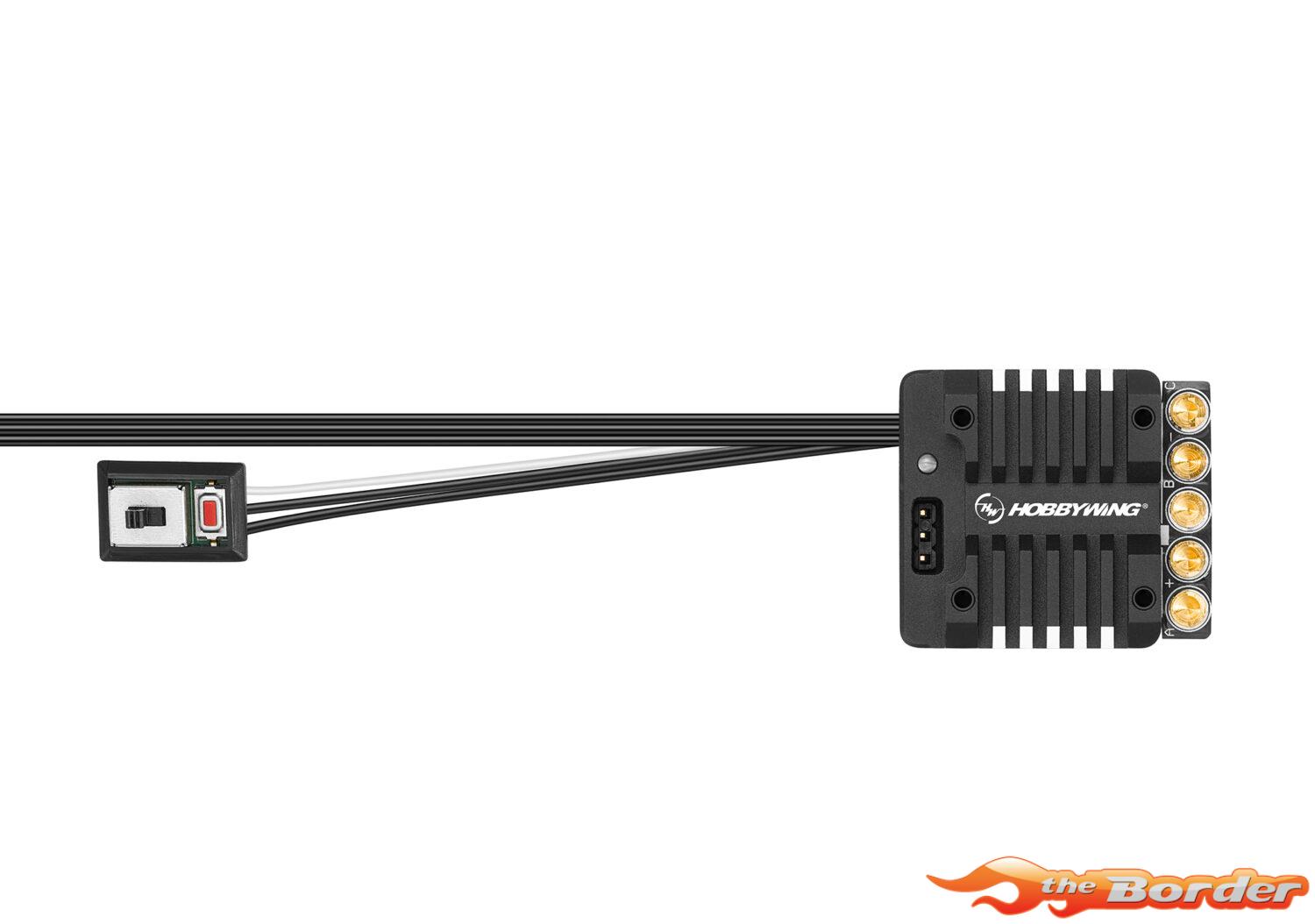

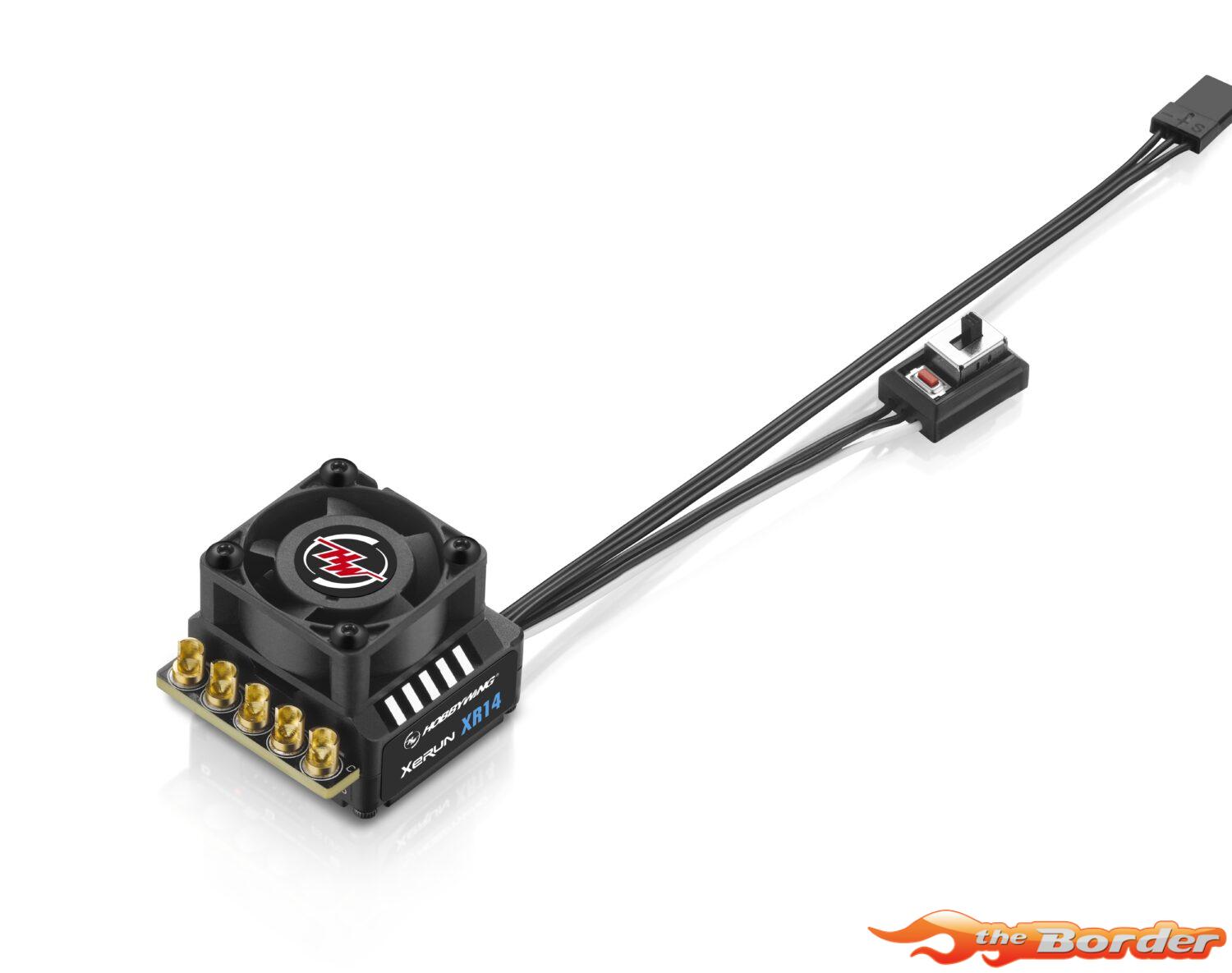

Hobbywing XeRun XR14 70A Sensored Brushless ESC 2S 30112622

Built for Competition
An all-round competition-grade ESC, meticulously designed with advanced software to deliver peak performance for both 1/14th on-road and off-road vehicles.
High power output, excellent cooling
The maximum continuous output current of the ESC is as high as 70A
The full-metal heat sink top ensures efficient heat dissipation, keeping the ESC within safe operating temperature, even during intense use.
Built-in reverse polarity protection circuit
Built-in reverse polarity protection prevents damage from incorrect battery connection, safeguarding your ESC from potential issues caused by reverse battery polarity.
Note: The reverse polarity protection of the entire power system can be achieved only by using the non-polarity capacitor sold as an option.
The standard capacitor of the ESC does not have this protection. Reverse connection of the battery will damage the capacitor,
but the ESC should not be damaged. Replacement of the capacitor is needed immediately.
High-Voltage Servo Support with Built-in BEC
Equipped with a built-in switch mode BEC, A maximum continuous current of 4A A peak of 8A Switchable output voltages of 6V/7.4V This ensures ample power supply to high-torque, high-voltage servos.
Extensive Parameter Adjustments
The ESC offers 26 adjustable parameters, including PWM frequency, softening, initial throttle response, and Boost/Turbo timing. This provides precise control over power delivery, enhancing the driving experience with fine-tuned customization.
Versatile Compatibility
While optimized for 1/14th Blinky and Boost racing, this ESC is also compatible with 1/10th Blinky competitions, offering flexibility across different racing formats.
Product Name
XERUN XR14
Product Number
30112622
Type
Scale 1/14th、1/12th、 1/10th
Brushed/Brushless Brushless
Sensored/Sensorless Sensored
Waterproof NO
Specifications
Cont./Peak Current 70A/300A
Input Voltage 2S Lipo
BEC BEC Output Switch Mode 6V/7.4V @4A
Wires & Connectors
Input Wires Black-10AWG-200mm*1 Black-14AWG-175mm*2
Output Wires Black-14AWG-175mm*3
Input Connectors No
Output Connectors No
ESC Programing via
SET Button on ESC Not Supported
LED Program Box Not Supported
LCD G2 Program Box Supported
LCD PRO Supported
OTA Programmer Supported
Program Port Shared with Fan port
Data Recording
Extreme value Supported
Real-time Data Supported
Historical data (Graph) Supported
Firmware
Firmware Upgrade Supported
Size & Weight
Size 35.2*31.3*28.5mm
Weight 66g (Included wires)
Applications
Motors Sensored/Sensorless Brushless Motors
Vehicles 1/14 Scale Racing, 1/12&1/10 Light load vehicles with zero-timing(blinky) mode
KV Rating/T Count XERUN 2848
