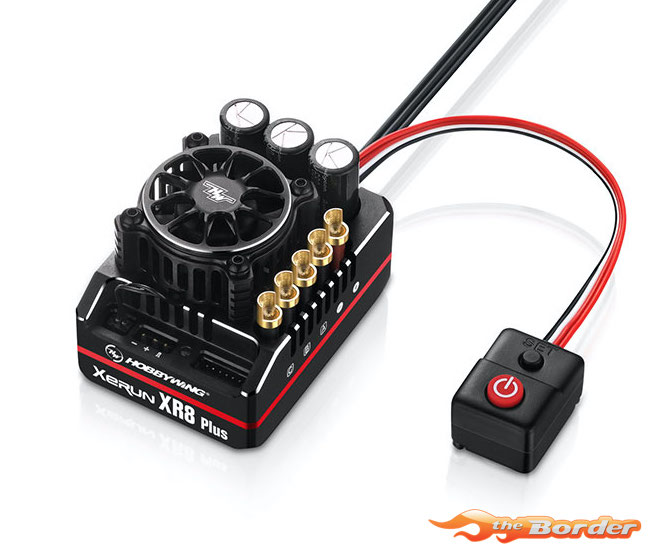

Hobbywing XERUN-XR8 Plus G2S 1/8 Buggy/Onroad 200A ESC HW30113304

Hobbywing XERUN-XR8 Plus G2S 1/8 Buggy/Onroad 200A ESC HW30113304

Full-sensored Mode Supported

The ESC can work the full-sensored mode at all times (when pairing it with a HOBBYWING matching motor).

Efficient heat dissipation system with lower temperature rise
The frameless fan design is a patented technology. The rapid transmission of internal heat to the integrated housing radiator are made up of high airflow from the side of the fan and a copper thermal conduction sink on the internal power plate. These are built into high-reliability thermal systems to ensure that it is always in good thermal condition.
Application No: PCT/CN2021/115679

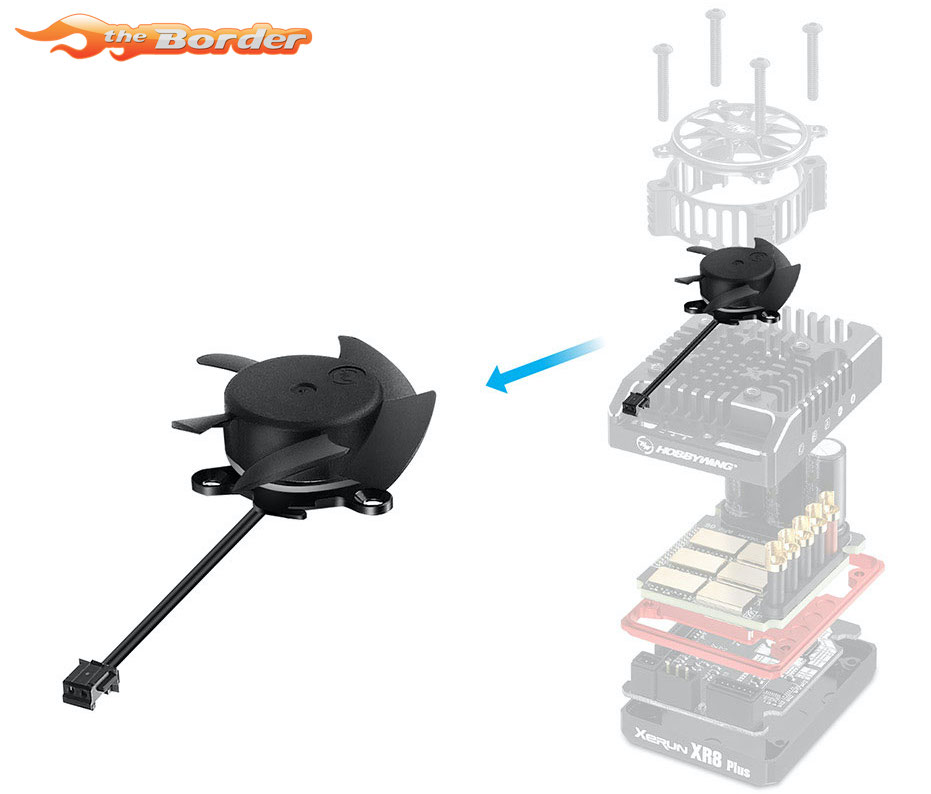

Durable frameless fan
The all-new frameless fan blades uses a special material and are extremely hard and reliable. It greatly reduces the damage
of the fan blades caused by the impact of small stones, sand and other foreign objects. Thus, reduces the failure rate of the fan than compared with the traditional pbt fan.

The XR8 Pro G2 ESC paves the way for a completely new generation of ESCs. Designed for use with 2-4S LiPos or 6-12 cell NiMH batteries, the optimized cable routing and the elegant appearance are examples of the high-quality workmanship. Compared to the XR8 Plus ESC, it is also lighter and smaller. So it is easy to see how much thought has been given to a good, user-friendly product design.

1/8th power system, Boost & Turbo Timing Technology
This ESC pairing with Hobbywing motor can start Turbo Timing technology which succeeded in 1/8th On-Road contest. It supports 48 degrees Boost and Turbo Timing. When pairing with Hobbywing 4268/4274 G3 motor, the max. speed can be promoted by 50%. Easily win your rival.

In terms of functionality, an extended BEC of 6-8.4V in 0.1V steps scores points. This means that even more servos can be addressed than with conventional ESCs. The greatly increased capacitance of the capacitors is also a real improvement. And those who value performance measurement themselves will of course get their money’s worth. Because if the ESC is linked to the Hobbywing application, the collected data can not only be evaluated offline, but also viewed live.

Battery-Reverse Polarity Protection
The XR8 Pro G2 ESC is designed with Built-in Reverse Voltage Protection Circuit. The circuit protects the ESC components from reverse polarity of the battery connections.

Advanced Boost & Turbo Timing Technology
This ESC paired with a compatible HOBBYWING motor can use the Turbo Timing technology which was designed for the successful XR10 Pro series ESC used in 1/10th On-Road and Off-Road competition.
This ESC can support up to 48 degrees of Boost and Turbo Timing when paired with the new HOBBYWING 4268/4274 G3 motors with an increase of 50% more performance than the previous G2 series motor keeping you way ahead of the competition.

Capacitor Thermal Protection
Capacitor thermal protection is designed and implemented into the ESC in which will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload.

Belangrijke eigenschappen
Up to 30 parameter setting options
Full-sensored mode support (when operated with a suitable HOBBYWING motor)
Super BEC with max.15A and 6-8.4V for the use of various servos
Internal protection against incorrect connection of the battery
Thermal protection of the capacitors so that explosions are prevented
Easy to program and without any cables with the WiFi module or OTA programmer as well as a smartphone
Evaluate the data offline and in real time with the associated app
Specificaties
Type:    Brushless Sensored
Current cont./peak    200A/1080A
Input Voltage:    2S-4S LiPo, 6-12 cells NiMH
BEC:    6V-8.4V, 6A
Waterproof:    No
Programmable:    – LCD Program Box
– Wifi Module
– OTA Programmer
– independent programming port
Size:    56.1×42.1×38.6mm
30x30x10mm (Fan)
Weight:    114g
Application:    1/8 Off-Road, On-Road, Truggy
