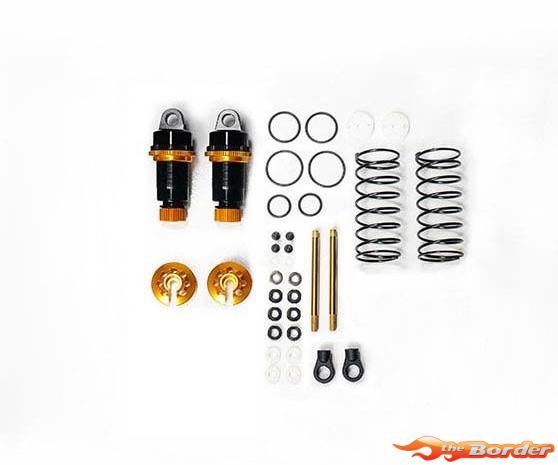

Koswork Front Shock Set Big Bore 12mm Gold for Kyosho Optima/Ultima/Javelin KOS04351-1GDF
Features:

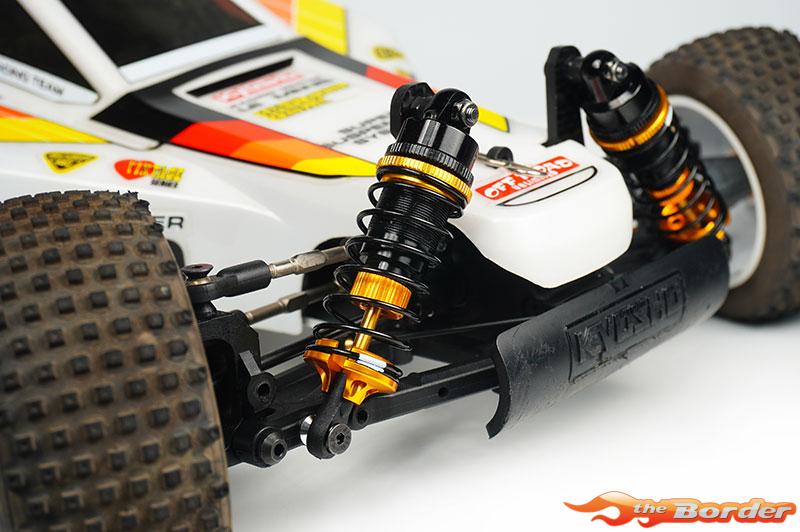

*Direct replacement & upgrade for Kyosho Optima Mid series, Ultima, Ultima JJ, Optima, Turbo Optima, Javelin & other Kyosho buggy
*Big bore shock set with 12mm pistons
*Hard coated black color aluminum shock bodies
*Polished inner shock body for slick & friction free performance
*CNC machined 12mm pistons, made of self-lubricating material
*Ti-Nitride coating shock shafts for long life and smooth action
*Aluminum shock caps allow the utmost durability and consistency
*Aluminum shock collars & bottom caps with knurled portion for increased grip
*Aluminum shock spring retainers/cups provide a solid foundation for the shock springs
*Optional springs and pistons available for fine tuning
*Experience the benefits of better bump handling, more traction and consistent performance
*Made In Taiwan
*Cars, parts, accessories & others are not included.*
Specification:
5mm hole on the top of shock cap
Shock ball ends designed for 5.8mm balls
Stroke: Front 24mm / Rear 28.8mm
Overall length: Front 84.2mm / Rear 99mm
Compatibility:
Kyosho Optima Mid Series, Ultima & Ultima JJ, Optima, Turbo Optima, Javelin & similar size cars
For Kyosho Ultima & JJ: Please use KOS04841-6 Short Shock Ball End/Eyelet 13.4mm for the front shock & KOS04841-7 Long Shock Ball End/Eyelet 15.9mm for the rear shock. Due to the longer shock length, KOS04361-11 Kyosho Ultima & JJ Front Carbon Shock Tower Shock Stay 3mm (w/balls) is suggested to use.
For Kyosho Optima, Turbo Optima & Javelin: Depends on the shock position, KOS40355-2 3×5.5x2mm Aluminum Shim/Washer may be needed to move out the shocks and get the right clearance.
