MXO Racing Spektrum Receiver for Kyosho Mini-Z MR-030EVO MX-EVO-RX-DSM2

MXO Racing Spektrum Receiver for Kyosho Mini-Z MR-030EVO MX-EVO-RX-DSM2

Works with:

Spektrum DX2E, DX3C, DX4S, DX5C, DX5-Pro, DX5 Rugged

The MX EVO RX-DSM2 is a DSM/DSM2 compatible ultra-miniature receiver for KYOSHO’s MR-03EVO and MA-03EVO, with an output speed of up to 5.5/8.25ms in EVO mode. It can work not only in EVO mode, but also in 4CH PWM standard signal mode.

In addition, we are developing miniature sensor brushless ESCs and other related products that can be directly mounted on this receiver.

Features:

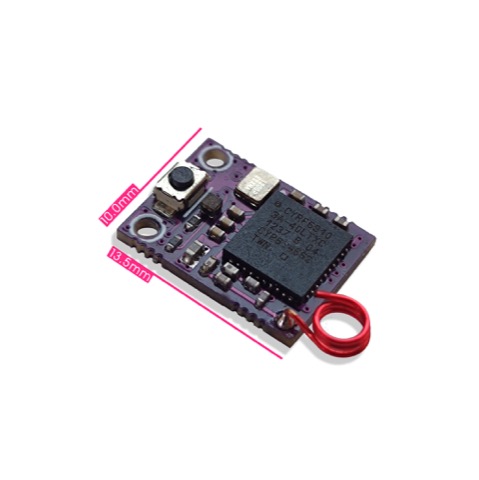

 Size: 13.5*10.0*3.5mm
 Weight: 0.58g
 Working voltage: 3.0V or 3.3V
 Compatible with DSM/DSM2 protocol
 Support EVO and 4CH PWM two working modes
 The output speed in EVO mode is 5.5/8.25ms(Note 1)
 The output speed in 4CH PWM mode is 5.5/8.25ms(Note 1)
 Support online firmware upgrade.

Red LED status indication:

The red LED on the MX EVO RX is an indication of the working status of the RX:
1) When the red LED flashes slowly, it means that RX is waiting to receive a signal;
2) When the red LED flashes quickly, it means RX is in BIND mode;
3) When the red LED is always on, it means that the RX has received the signal stably.

How to set up the transmitter (when MX EVO RX is used on MR-03EVO/MA-03EVO):

Because the brushless ESCs and servos on MR-03EVO/MA-03EVO cannot set the midpoint and end point, the user can only set the transmitter to adapt to the parameters of MR-03EVO/MA-03EVO. The settings are as follows:

1)TH TYPE > F5 : B5
2)EAP: ST > L150% R150% TH > H150% B150%
3)D/R: ST > 100% TH > 100%
4)REV: ST > REV TH > REV

Note: Points 2 and 3 can be adjusted according to user habits, and point 4 can be set according to the actual situation.

How the MX EVO RX works in EVO mode:
When users install MX EVO RX on KYOSHO’s MR-03EVO/MA-03EVO frame or other products that support EVO mode, MX EVO RX will work in EVO mode.

In EVO mode, when the MX EVO RX is just powered on, the LED on the RX will not flash quickly to indicate.

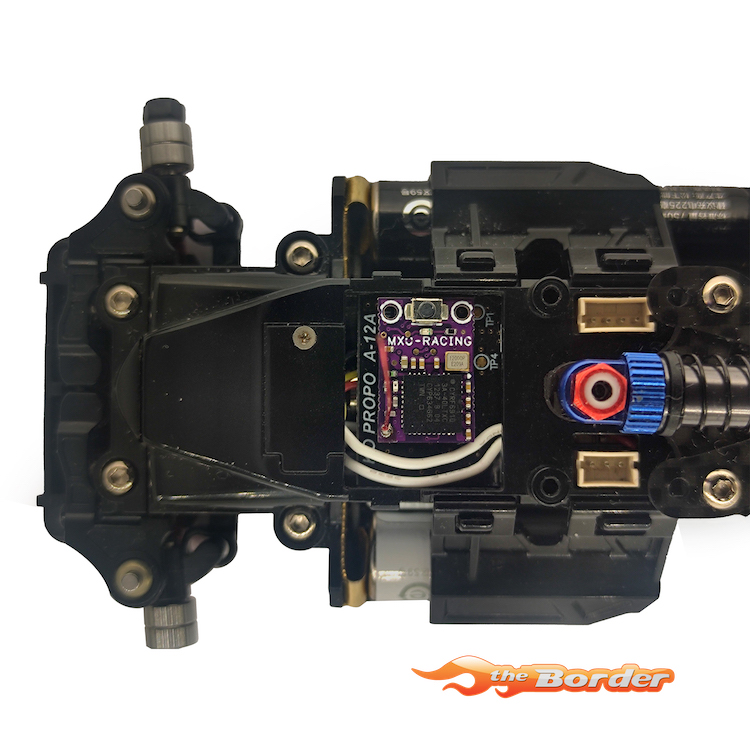

Note: When using the MX EVO RX on the MR-03EVO and MA-03EVO, be sure to install it in place, otherwise you may burn it; if necessary, place the receiver compartment cover on the MR-03EVO and MA-03EVO Add a small piece of sponge to hold down the MX EVO RX.

How the MX EVO RX works in 4CH PWM mode:

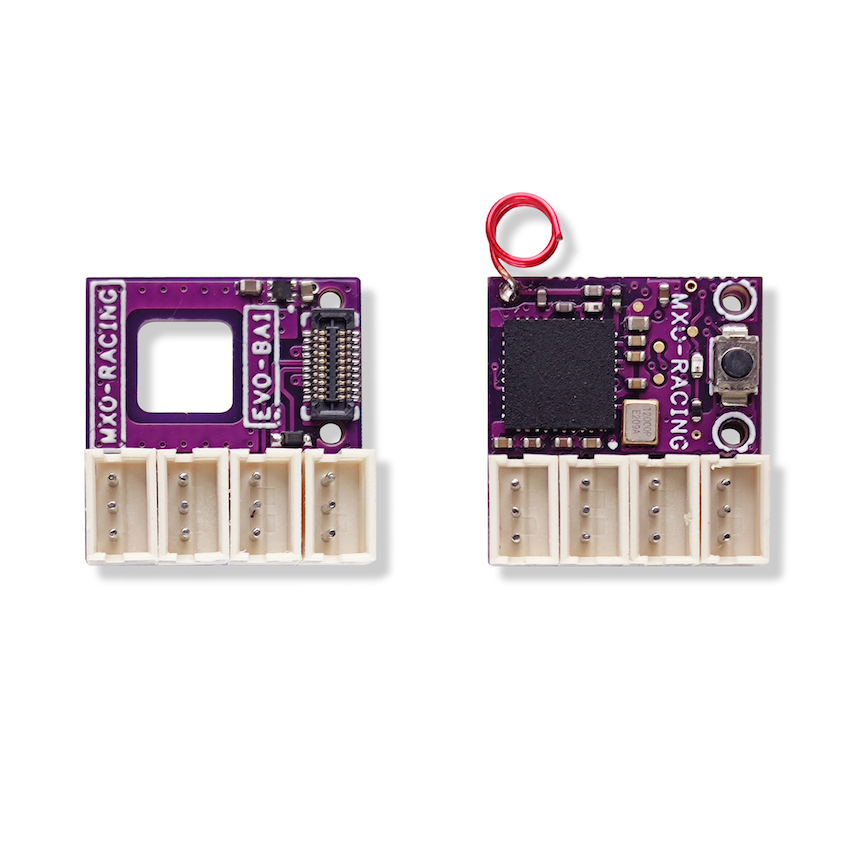

When users install MX EVO RX on EVO-BA1 or other products that support 4CH PWM mode, MX EVO RX will work in 4CH PWM mode.

In 4CH PWM mode, when the MX EVO RX is just powered on, the LED on the RX will flash several times quickly before entering the working mode.

How to read RX firmware version:

This function requires GUI support on the PC side, and the receiver and GUI need to be connected through the MX USB-PG-ISP. The remote control must be turned off before the receiver is connected to the GUI, otherwise the receiver cannot be connected to the GUI.

Note: 1) The SW switch on the MX USB-PG-ISP must be moved to the “I” position;
2) When the GUI is connected to the MX EVO RX, the transmitter must be turned off, otherwise the GUI cannot

correctly read the information of the MX EVO RX.
