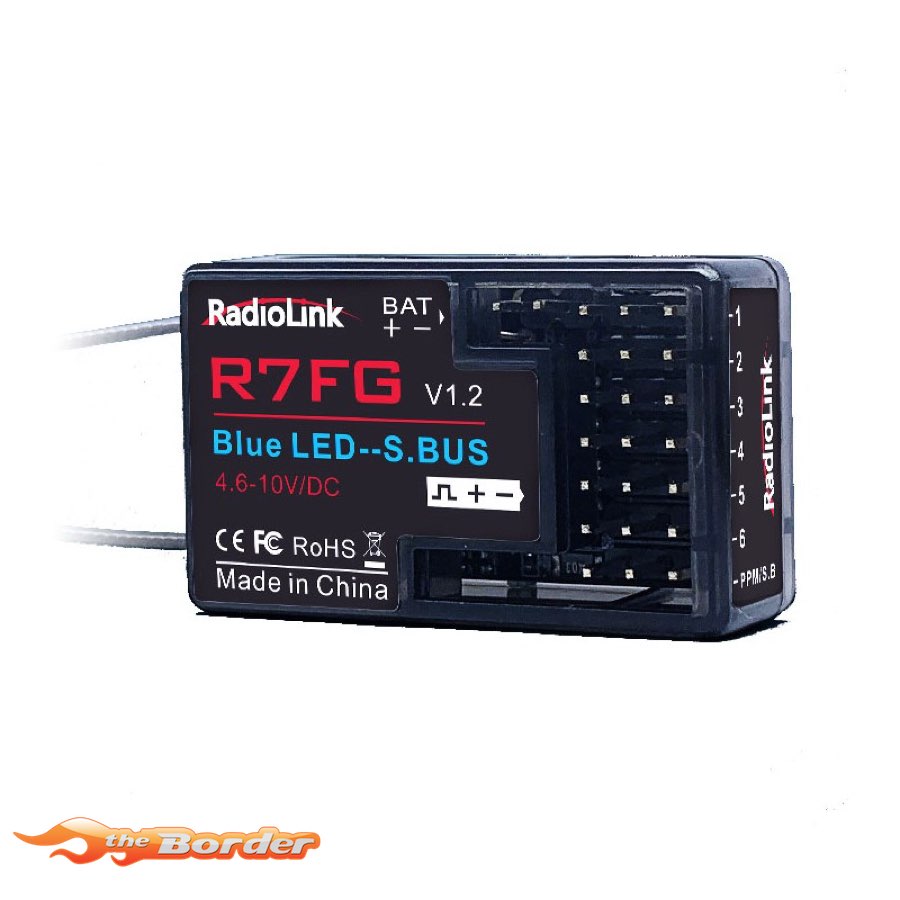

RadioLink R7FG Gyro integrated Receiver

RadioLink R7FG Gyro integrated Receiver RADR7FG

Two-way Transmission 600 Meters Control Distance
The stable remote-control distance of R7FG is up to 600 meters on the ground. Control with the camera and the display screen/ goggle makes the drivers enjoy FPV fun.

Capable of real-time transmission of RSI, receiver, and model voltage. The RSI value and receiver voltage will display on the screen once the binding complete between transmitter and receiver.
The model voltage will display on the screen by connecting the battery to the Telemetry port via the voltage feedback cable (come with R7FG), without extra backhaul module needed.
The real-time maximum voltage can be up to 6S battery.
To support the two-way transmission function, the corresponding latest firmware needs to be flashed.

FHSS Hopping Communication, Anti-Interference

FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping make excellent anti-interference performance, perfect for multiplayer complete synchronously.
The 32 bits industrial level M0 chip applied makes better protection from fuel engine spark and ensures the safety of enjoying fuel-powered model cars.

SBUS/PPM/PWM Signal Supported

CH1 to CH6 are with PWM signal output while CH7 with PPM or SBUS signal output. Players can personalize signal output mode to fully enjoy the fun of model fishing-boat and car with FPV.

Integrated Gyro

The integrated high-performance gyro adopts the software filter and PID algorithm, timely and precisely corrects the sensitivity and improve the stability. Its good flexibility to different models and fields easily achieves professional performance even with drift cars.

4096 Precision, 12ms Fast Response

The high-resolution ratio of 4096, the stability of 0.5us, the low drop-out rate, and the high-speed processor of 48MHz M0 ensure the extremely fast response within 12ms.

Subsidiary ID

Capable of designating a subsidiary ID among multiple binding receivers to meet special needs such as long-distance rescue with model cars/boats. There can be a total of 10 subsidiary ID stored.

Anti-polarity Connect Protection, Power by Wide Voltage

Even the polarities are mistakenly connected, the receiver will not get damaged.
The power of 4.6~10V supports high voltage servo.

Specifications

Dimensions: 40.5*22*14mm（1.59*0.87*0.55”）
Antenna Length: 205mm(8.07″)
Weight: 6g(0.21oz)
Channel quantity: 7
Signal Output: PWM&PPM/PWM&SBUS
Model Application: Car/Boat
Frequency: 2.4GHz ISM
Spread Spectrum Mode: FHSS 67-channel pseudo random frequency hopping
Voltage Range: 4.6~10V
Operation Current: 30mA (base on power voltage)
Control Distance: 600 meters on the ground
Compatible transmitter: RC6GS V2, RC4GS V2,
RC6GS (3-position switch version),
RC4GS (version with P.D AFTER 180101),
T8S, T8FB
