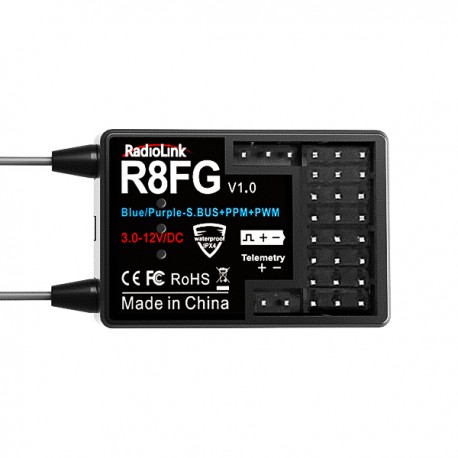

RadioLink R8FG 2.4Ghz 8Ch gyro integrated Receiver RADR8FG

RadioLink R8FG 2.4Ghz 8Ch gyro integrated Receiver RADR8FG
RadioLink R8FG 2.4Ghz 8Ch gyro integrated Receiver RADR8FG - Afbeelding 2

€ 36,00 inc. BTW

Uitverkocht

Want to be notified when this product is back in stock?

Stel een vraag over dit product

RadioLink R8FG 2.4Ghz 8Ch gyro integrated Receiver RADR8FG

can be set in a multiplicity of vehicle

Subsidiary ID

rescue, Towing, parent-child entertainment and friend teaching in one control

Capable of designating a subsidiary ID among multiple binding receivers to meet special needs such as long-distance rescue with model cars/boat

PWM, SBUS and PPM signal supported

The PCB board and pins of R8FG have the same waterproof tratment as the mobile phone, that is, nano-coating technology treatment and the waterproof grade is IPX4

The integrate high-performance gyro adopts the software filter and PID algorithm, timely and precisely corrects the sensitivity and improves the stability.

Wide transmitters compatible





Specifications

Dimensions:

L*W*H =35*20*13mm (1.38” *0.79” *0.51”)

Antenna length:

205mm (8.07”)

Weight:

10.5g(0.37oz)

Operating voltage:

3-12V

Operating current:

35mA(5V)

Channel:

8 channels

Signals:

SBUS&PPM&PWM

Telemetry:

Real-time built-in telemetry of model battery voltage, RSSI, and receiver voltage

Gyro:

Receiver with gyro integrated, customizable gyro sensitivity

Water splash proof:

The waterproof grade is IPX4

Applicable model type:

Car (Including Crawlers/Tanks/Caterpillars)/Boat/Robot

Frequencies band:

2.4GHz ISM band (2400MHz~2483.5MHz)

Spread spectrum mode:

FHSS, 67 channels pseudo random frequency hopping

Control distance:

600 meters

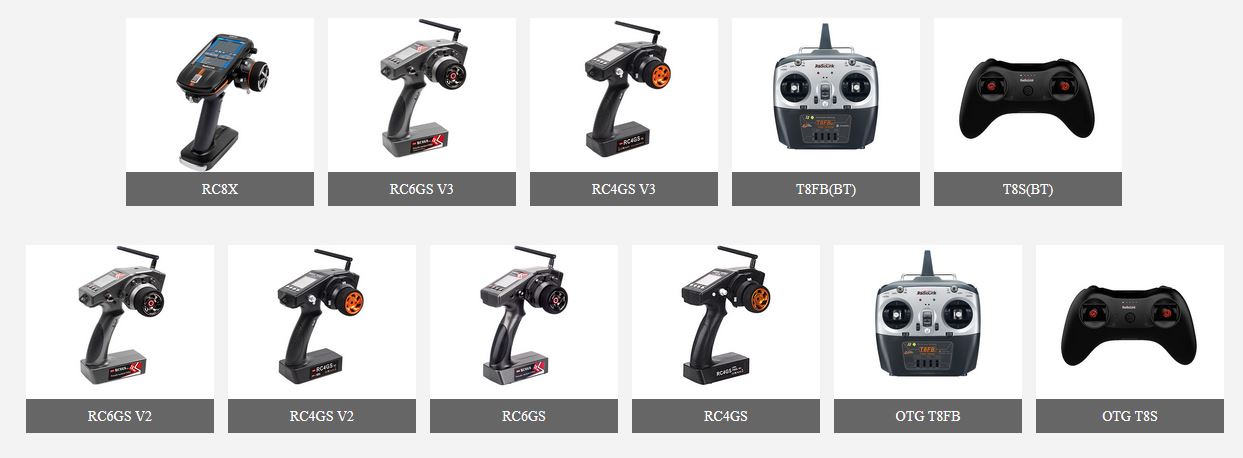

Compatible transmitter:

RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS (3-position switch version), RC4GS (version with P.D AFTER 180101) /T8FB(BT)/T8FB(OTG)/T8S(BT)/T8S(OTG)
