Amewi Hydraulic Bulldozer DXR2 1/14 Complete Ready to Run 2.4Ghz 22548

Amewi Hydraulic Bulldozer DXR2 1/14 Complete Ready to Run 2.4Ghz 22548

Delivery 3-5 days only on special order

This item weight included box 37Kg

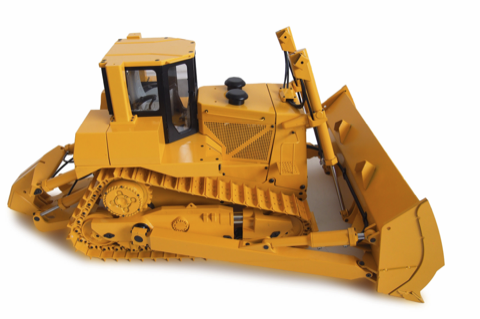

High-quality solid full metal bulldozer in 1:14 scale with the finest equipment and enormous power. This top-class model combines high-quality technology with powerful hydraulics for maximum usability on the construction site at home. The thrust and lifting forces of this model are disproportionately high and this bulldozer will not reach its limits even in difficult terrain. The model is delivered in a high-quality transport box as ARTR version. All lines, the connections and the power supply incl. receiver are already installed and coupled with the sensitive 2.4Ghz transmitter. All you have to do is fill in the hydraulic oil and insert the batteries in the transmitter to get the model ready for use. Connect the drive battery (optional and not included) to the model’s power connection and you can start working.

Highlights:
High-quality and enormously powerful hydraulic system for max. thrust and lifting force (up to 50Kg actuating force)

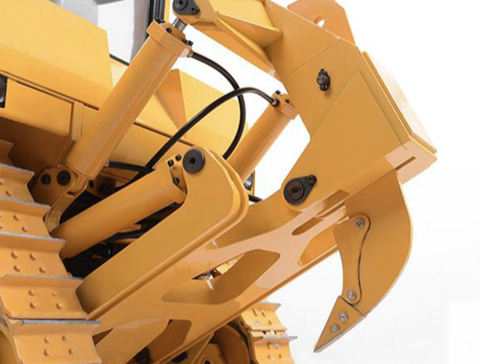

Ripper hook at the rear of the model with depth adjustment up to 50mm to loosen solid soil
Adjustable flow rate of the hydraulics for fine dosage of the actuating forces

Other features:
Made entirely of metal
Welded metal shield
Shield can be moved in many variations (e.g. slanted, straight, up, down)
Heavy-duty hydraulic hoses: outer Ø: 3.2mm, inner Ø 2.2mm
Main hoses: outer Ø: 4mm, inner Ø: 2.4mm
Optimised steel hydraulic system
Reliable hydraulic valves and adjustable hydraulic pump
Brushless motor on hydraulic pump
540 high-torque brushless motors for propulsion
Full metal gearbox 1:256 gear ratio
Simple design

Technical data:
Scale: 1:14
Length: 685mm
Width: 351mm
Height: 323mm
Total mass: 37kg
Dead weight: 26kg
Operating pressure: 25 bar
Pump flow: 0,8l/min.
Shield height: 174,6mm
Maximum lifting angle of the blade: 29°.
Maximum blade tilt angle: 9°.
Maximum speed: 408m/h (0,48km/h)
Maximum thrust: 50kg
Maximum ripping depth of the hook: 50mm
Max. Battery dimensions: 140x45x40mm

Scope of delivery:
Bulldozer
Remote control 2,4GHz
Manual DE / EN

Required accessories:
3S LiPo >= 5000mAh XT60 max. 140x45x40mm
8x AA batteries for the remote control
Hydraulic oil ISO 32 approx. 400ml
