Sanwa MT-5 + RX-493i Radio Set (2.4GHz Transmitter) 101A32671A

Sanwa MT-5 + RX-493i Radio Set (2.4GHz Transmitter) 101A32671A

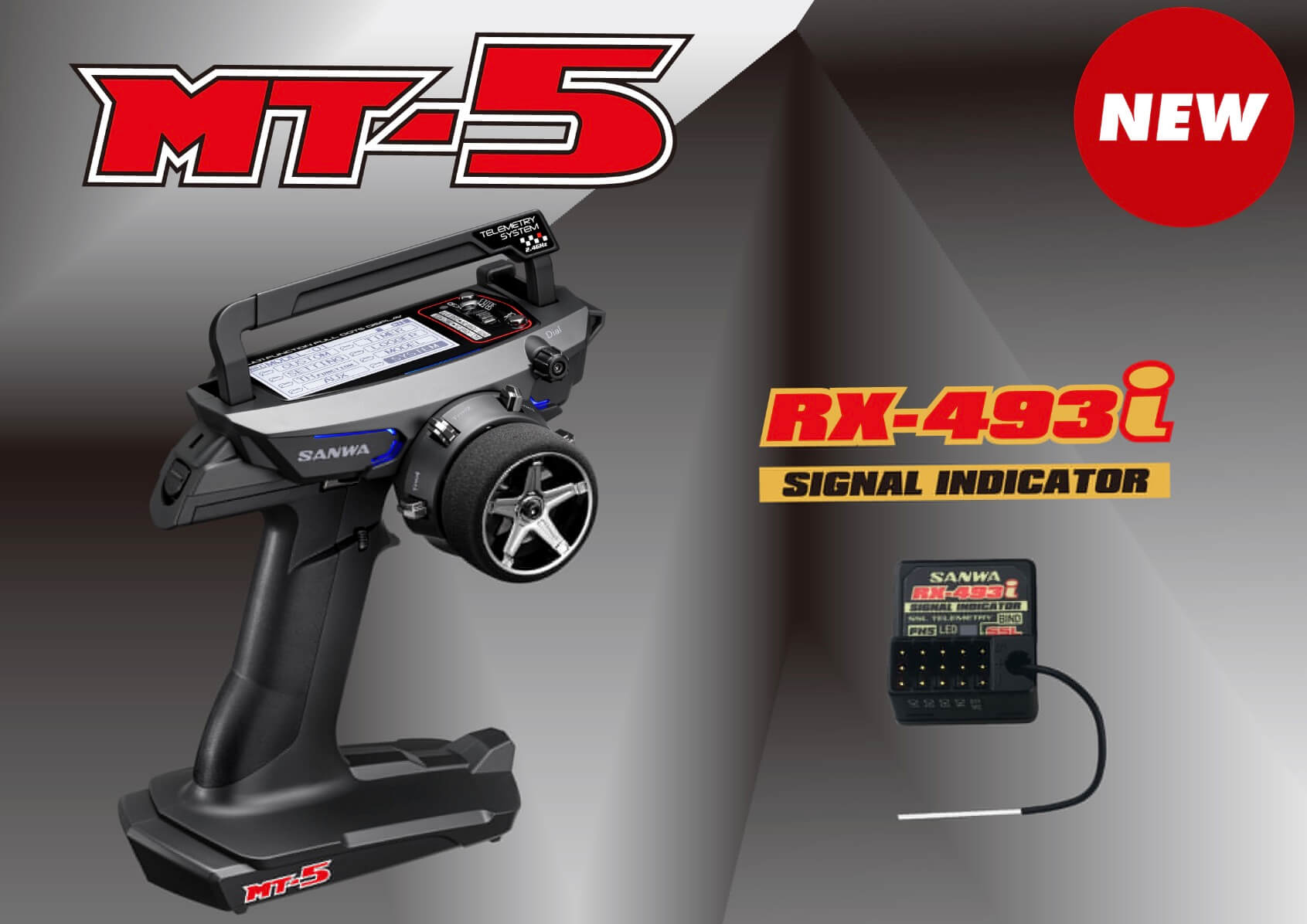

The latest & greatest Sanwa transmitter: the MT-5!

MT-5 is a transmitter for FH5 RF mode.
RX-493i is FH5 compatible receiver, which is included.

FH5 RF mode is higher resolution than former FH4 RF mode.
Also, MT-5 installed SUR (SANWA ULTRA RESPONSE) Mode which is faster mode than SSR (SANWA SUPER RESPONSE) mode which was installed in MT-44.

Combination with FH5 RF mode and SUR mode will give great smooth feeling.
Compatible receivers are RX-491, RX492, RX-493, and RX-493i.
(FH3 and FH4 compatible receivers as RX-38*, 45*, 46*, 47*, and 48* cannot be used for MT-5)

Another great new feature of MT-5 is INDICATOR FUNCTION in telemetry system.
RX-493i is compatible with INDICATOR FUNCTION.
Combination of MT-5 and RX-493i can work for Indicator function can be checked signal strength.
The indicator function can be used for finding problems as incorrect receiver placing and finding the best receiver position for transmitter.
By SANWA technical development, signal strength can be checked without any effect with response speed.

■SYSTEM: 2.4GHz FH5 ■4CH ■Transmitter: TX-491 ■Receiver: RX-493i
[New features]
●FH-5 RF MODE (SUR response mode compatible) ●Indicator Function
[Other functions]
●Movable Carrying Handle ●Quick Setup Wizard ●Safety Link ●Racing Mode ●Customized Menu ●Micro SD card-compatible ●Telemetry Switch ●Clock ●Circumstance Temperature Display ●CSV Output for LOG data ●CODE 10-compatible (Naming support) ●Simultaneous three telemetry data display ●Three AAA Batteries ●Li-Po 1 cell-compatible (USB change support)●Large full dot LCD monitor ●Wight LED back light ●Full adjustable trigger ●Telemetry function ●Built-in antenna ●Multi Menu Selector ●ST/TH Tension Adjuster ●Dual Rate ●End Point Adjuster ●Anti-lock Brake ●Servo Speed ●Offset ●Trim/Sub trim ●Servo Reverse ●Curve (Exponential /Adjustable Rate Control) ●AUX1 (Movement type for 3CH. it’s the same as MT-4S function.) ●AUX2 (Movement type for 4CH. it’s the same as MT-4S function.) ●Fail safe (power/ battery) ●Timer (lap/ interval/ down) ●Lap ●Logger ●20 model memory (when used with SD card, 250 models is available.) ●Model Name (12 letters) ●Model (Select/ Clear/ Copy) ●Direct Model Select ●Trim Type (Center/ parallel) ●Throttle Type (70:30 / 50:50) ●RF MODE Setting (FH4T/FH3) ●Response Mode Setting (NOR/SHR/SSR)* ●Key Assign(SW/TRIM/DIAL/LEVER)
●AUX TYPE SETTING
・CODE AUX (w/ Naming function)
・STEP AUX (Step 1 – 100)
・POINT AUX (2 – 6 point)
・4WS MIXING (Front/Rear/Normal(coordinate phase)/Reverse(opposite phase))
・MOA MIXING (FWD/4WD/RWD)
・AUX MIXING (ST MIXING/ TH MIXING)
●Buzzer(scale/volume) ●Transmitter Battery Alarm ●LCD Contrast ●Volume Adjustment ●Mechanical Rudder Angle ●Small Grip Pad
●Compatible Receivers:RX-491, RX-492, RX-493, RX-493i
＊Telemetry-compatible

◆FH5 RF mode compatible
FH5 RF mode is higher resolution than former FH4 RF mode.
Also, MT-5 installed SUR (SANWA ULTRA RESPONSE) Mode
which is faster mode than SSR (SANWA SUPER RESPONSE) mode
which was installed in MT-44.

Combination with FH5 RF mode and SUR mode will give great smooth feeling.
Compatible receivers are RX-491, RX492, RX-493, and RX-493i.
(FH3 and FH4 compatible receivers as RX-38*, 45*, 46*, 47*, and 48* cannot be used for MT-5)

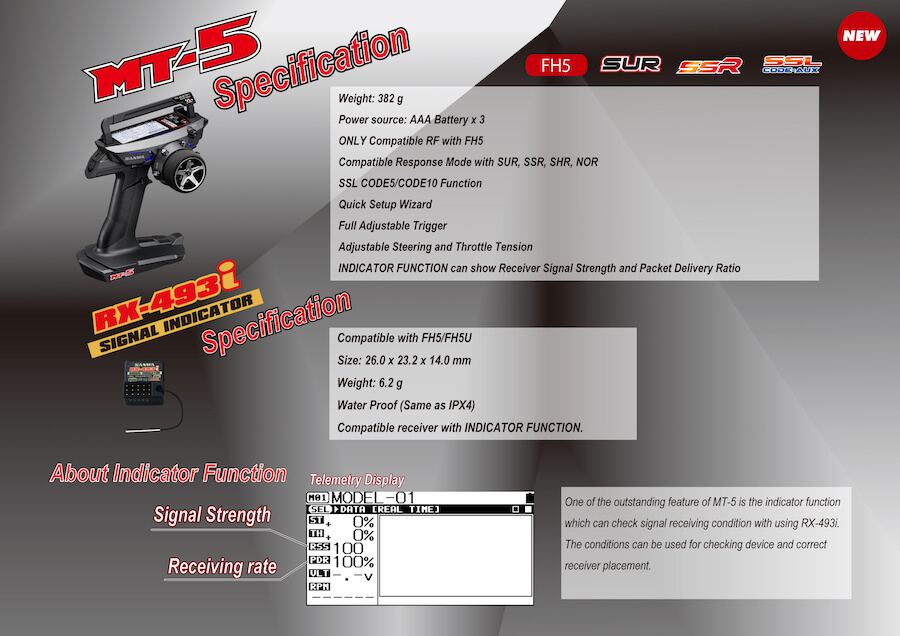

◆Indicator Function compatible
Indicator function can be checked signal strength connected transmitter.
Using with transmitter which installed Indicator function can be used for finding problems
as incorrect receiver placing and finding the best receiver position for transmitter.

By SANWA technical development, indicator function can be checked signal strength without any effect with response.

◆HIGH RESOLUTION DISPLAY
The same detailed dot as MT-44 enables so clear display.
Three kind of telemetry data can be displayed simultaneously because of gray scale display.

◆BEST POSITION FOR STEERING / THROTTLE
Steering/Throttle is arranged in the best position for operation.
Drop Down is used as standard postion.

◆THREE AAA BATTERIES
Three AAA batteries allows to be not only compact but also light.

◆USB CHARGE
When used with optional Li-Po 1 cell battery, weight become lighter and it can be changed from USB input.
