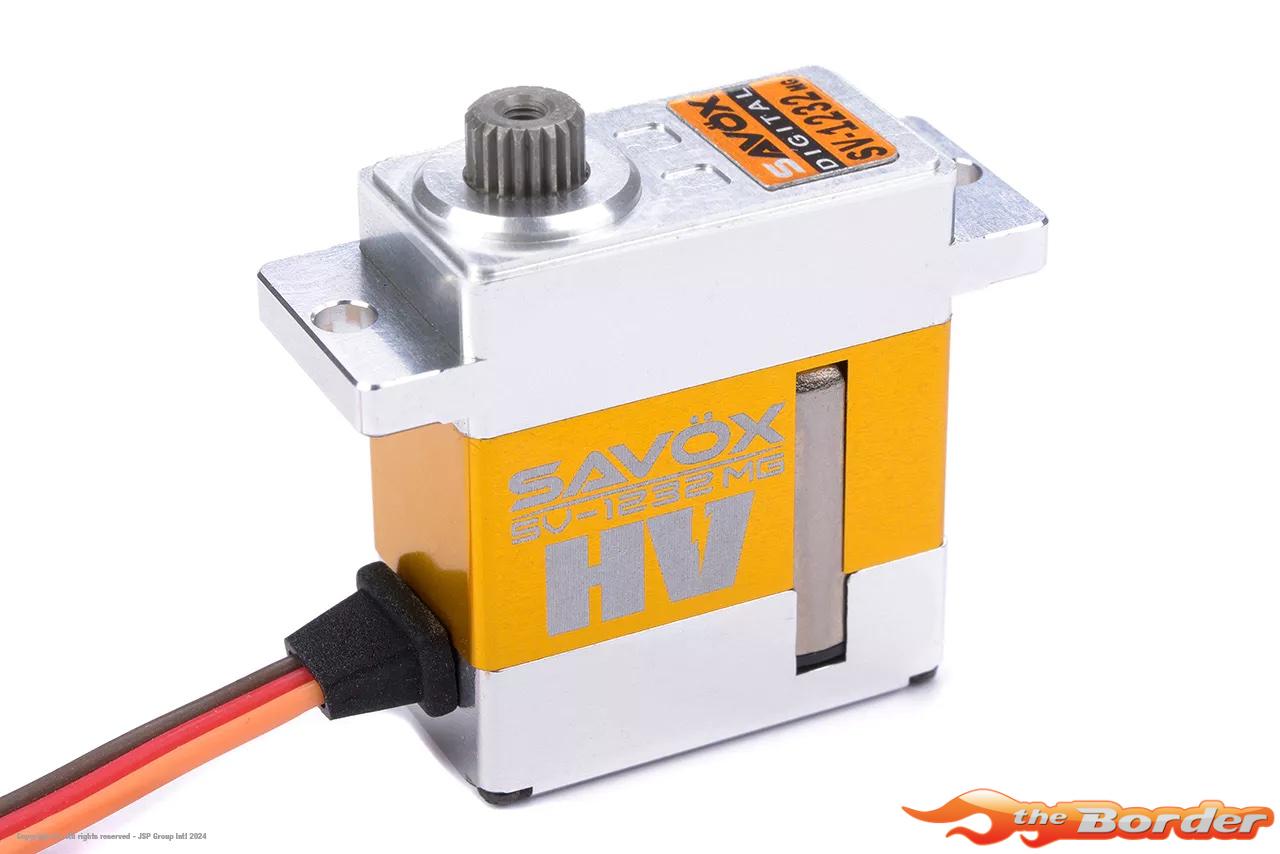

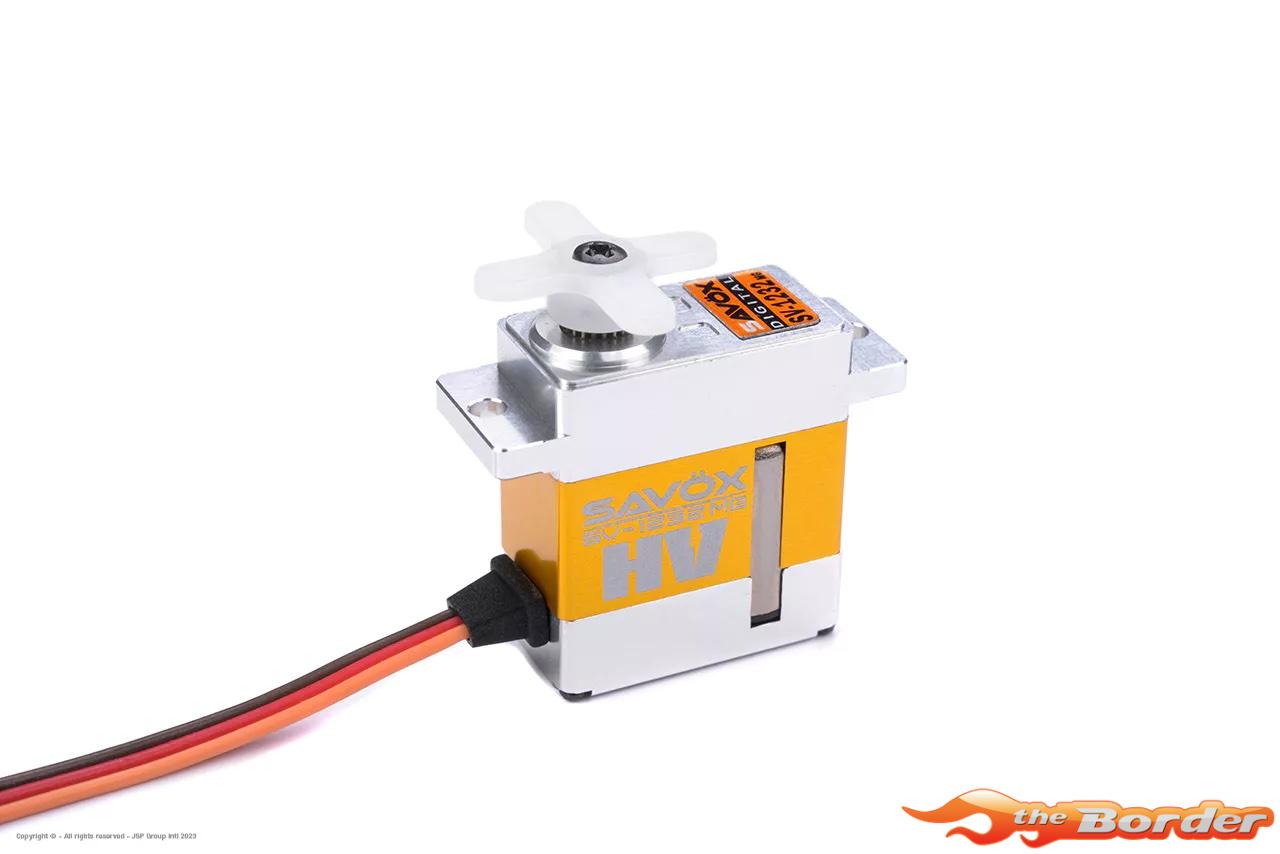

Savox SV-1232MG Digital High Voltage Coreless Servo Metal Gear

Features:
– Leading edge digital servo technology
– High efficiency Coreless motor
– Accurate and fast response
– Super high resolution
– Aluminium case for improved motor cooling and total strength
– Ball beared
– Precision Metal gears

Technical specifications:
Servo Technology: Digital High Voltage
Input Voltage (V): 6.0V – 7.4V
Servo Type / Size: Mini
Motor Type: Coreless Motor
Gear Material: Metal Gears
Ball Beared: Ball Beared
Servo Case: Aluminium
Speed 60°/Sec @ 7.4V: 0.05 Sec/60°
Torque kg/cm @ 7.4V: 5.0 Kg/cm
Length (mm): 32.4 mm
Width (mm): 12.0 mm
Height (mm): 27.2 mm
Weight (g): 23 g
Connector type: JR
Spline size: 21T Spline

Gear Material
Metal Gears
Height (mm)
27.2 mm
Input Voltage (V)
6.0V – 7.4V
Length (mm)
32.4 mm
Motor Type
Coreless Motor
Servo Case
Aluminium – Composite
Servo Power – Torque Kg/cm
5 – 10 Kg/cm
Servo Speed 60°/sec
0.05 – 0.10 Sec/60°
Servo Technology
Digital High Voltage
Servo Type / Size Mini
Speed 60°/Sec @ 7.4V 0.05 Sec/60°
Spline size 21T Spline
Torque kg/cm @ 7.4V 5.0 Kg/cm
Weight (g) 23 g
Width (mm) 12.0 mm
