Savox SV-1250MG+ Coreless Digital Servo 1/12 scale

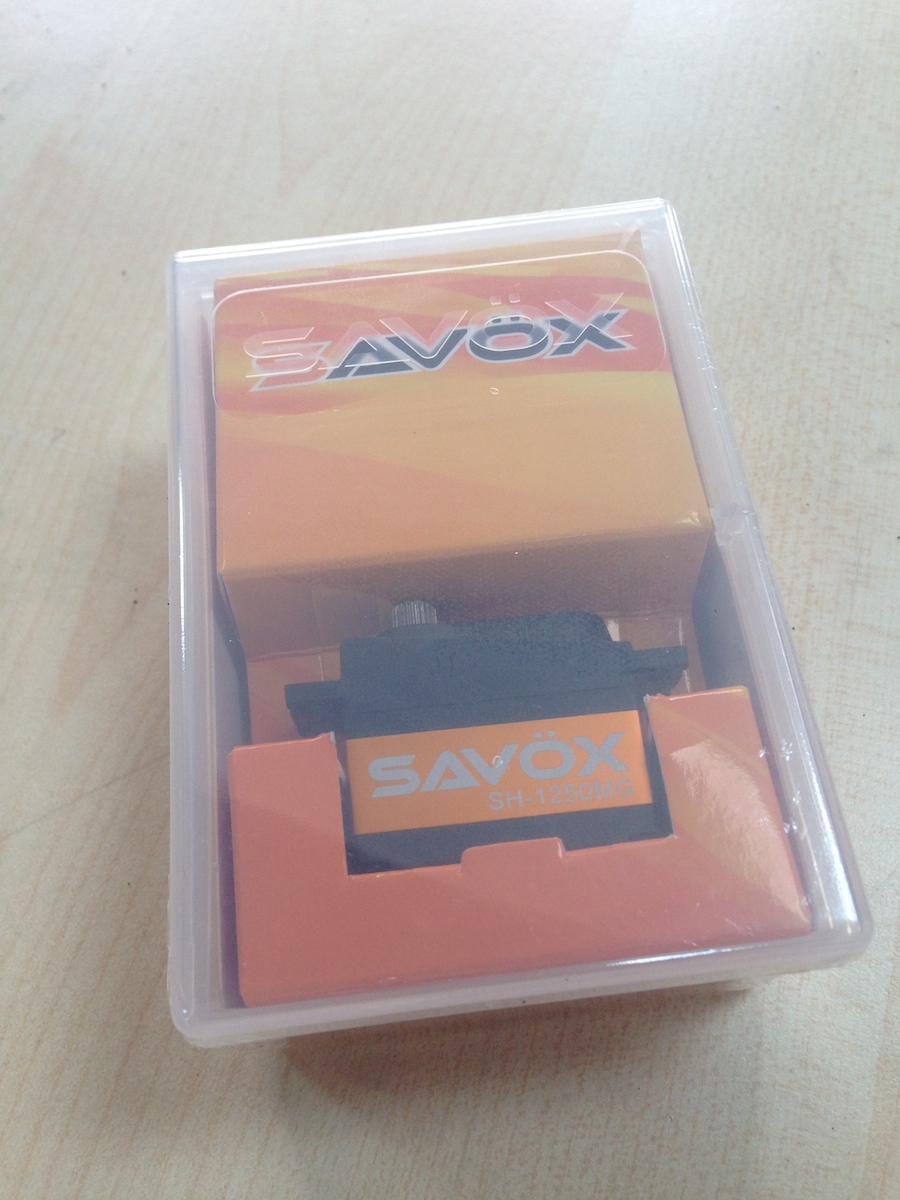

Savox SH-1250MG Coreless Digital Servo 1/12 scale
Savox SV-1250MG+ Coreless Digital Servo 1/12 scale

€ 66,95 inc. BTW

Leverbaar

Qty
Stel een vraag over dit product

Savox SV-1250MG Coreless Digital Servo 1/12 scale

SV-1250MG+

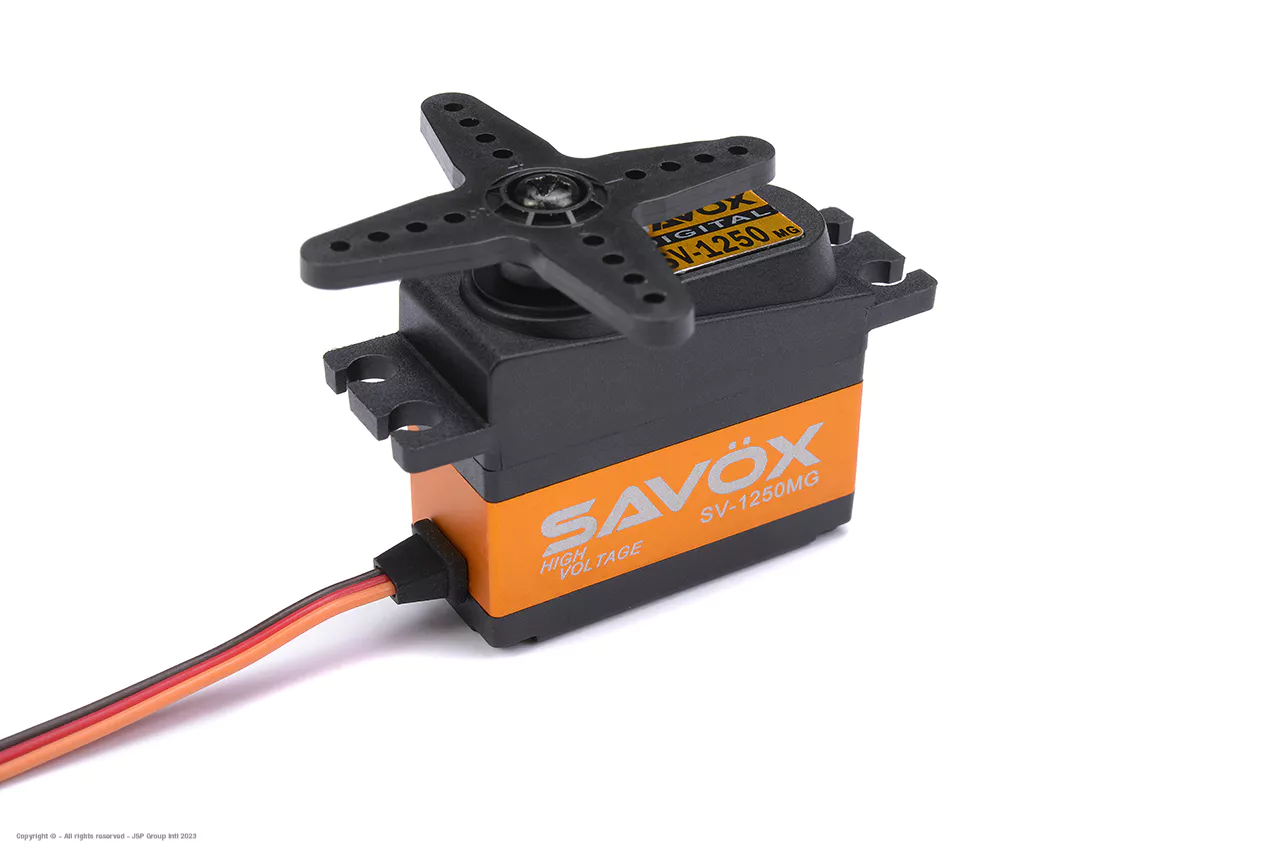

Savox – SV-1250MG+ Digital High Voltage Coreless Servo, Metal Gear

Features:
– Leading edge digital servo technology
– High efficiency Coreless motor
– Accurate and fast response
– Super high resolution
– Aluminium center case for improved motor cooling and total strength
– Ball beared
– Precision Metal gears

Technical specifications:
Servo Technology: Digital High Voltage
Input Voltage (V): 6.0V – 7.4V
Servo Type / Size: Midi
Motor Type: Coreless Motor
Gear Material: Metal Gears
Ball Beared: Ball Beared
Servo Case: Aluminium – Composite
Speed 60°/Sec @ 7.4V: 0.095 Sec/60°
Torque kg/cm @ 7.4V: 8.0 Kg/cm
Length (mm): 35.0 mm
Width (mm): 15.0 mm
Height (mm): 29.2 mm
Weight (g): 29.5 g
Connector type: JR
Spline size: 25T Spline
Technische gegevens
Ball Beared
Brandname
Savöx
Connector type
JR
Gear Material
Metal Gears
Height (mm)
29.2 mm
Input Voltage (V)
6.0V – 7.4V
Length (mm)
35.0 mm
Motor Type
Coreless Motor
Servo Case
Aluminium – Composite
Servo Power – Torque Kg/cm 5 – 10 Kg/cm
Servo Speed 60°/sec 0.05 – 0.10 Sec/60°
Servo Technology
Digital High Voltage
Servo Type / Size Midi
Speed 60°/Sec @ 7.4V 0.095 Sec/60°
Spline size 25T Spline
Torque kg/cm @ 7.4V 8.0 Kg/cm
Weight (g) 29.5 g
Width (mm) 15.0 mm
