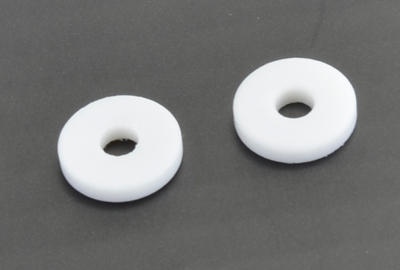

Schumacher Peripheral Damping Pistons – Mi5evo – (pr) U4803

Schumacher Peripheral Damping Pistons - Mi5evo - (pr) U4803

€ 5,80 inc. BTW

Op voorraad bij de leverancier. Schumacher wordt elke maandag besteld.

Qty
Stel een vraag over dit product

Schumacher Peripheral Damping Sleeves – Mi5evo – (pr) U4802


Peripheral Damping Sleeves for the Mi5evo shocks, sold as pairs. Requires U4802 sleeves to complete.

The Schumacher peripheral damping system has been developed for touring cars to help minimise tyre contact patch load fluctuations, caused by small bumps in the track surface. This means the tyre remains in contact with the ground more often, resulting in more grip and improved lap times!

The damping characteristic is dependent upon the position of the piston within the shock body. The damping is softest when the piston is at the bottom of the shock, at which point the peripheral volume is at its greatest. Conversely the damping is hardest when the shock is at the top of the body, and the sleeve has the smallest opening. As a consequence of this, the damping characteristic progressively increases with bump/roll, compared to the kit damper assembly which offers linear damping throughout the damping stroke.

Begin by building the shocks with the same shock oil as the kit shock assembly, and adjust as necessary.
