SkyRC Diff Analyzer (Torque Checker) SKY500026-03



SkyRC has presented a Diff Analyzer for setting up and fine-tuning the hardness of differentials for 1/10th scale cars and Mini-Z. Diff Analyzer provides numeric data to which helps to assess or replicate a specific hardness. Changing the diff oil will not be by feeling or guessing anymore. The handy device helps measure the diff setting, ensuring consistent hardness after building and setup.



The analyzer is powered by any universal Micro USB output or a power bank.

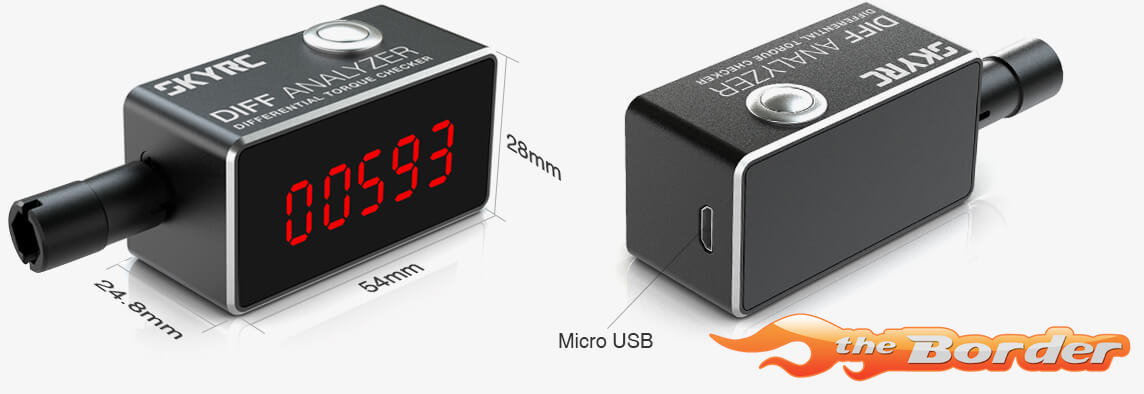

The device comes in a pocketable dimension of 54x28x24.8 mm weighing 59 g only.

How to Use Diff Analyzer
Connect Diff Analyzer to a power bank or any regular Micro 5V USB port.
Connect the diff with the Diff Analyzer and press the power button. Diff Analyzer will show a numeric value for diff being tested. Test duration lasts around 3-5 seconds. Repeat the same procedure for other diffs to have numeric values to compare.



The viscosity of diff oil is sensitive to temperature. So temperatures variations can affect the measurement values. It is suggested to make the tests with similar temperatures environment.

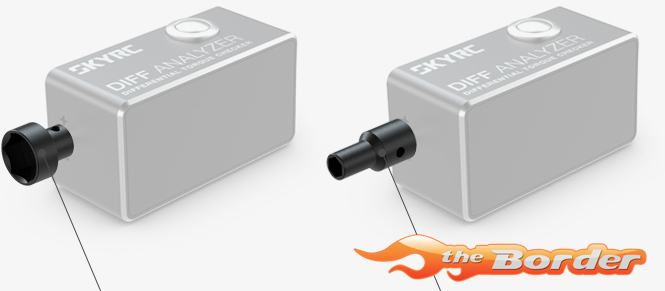

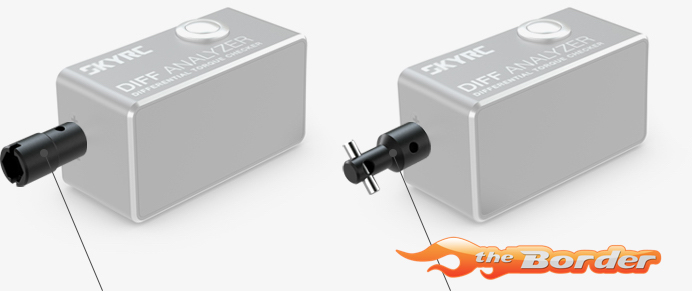

Adapters
The Diff Analyzer is delivered with an adapter for the diff measurement not assembled on the model. There is also an adapter which allows measuring directly on the model for all scales.



Download the manual
