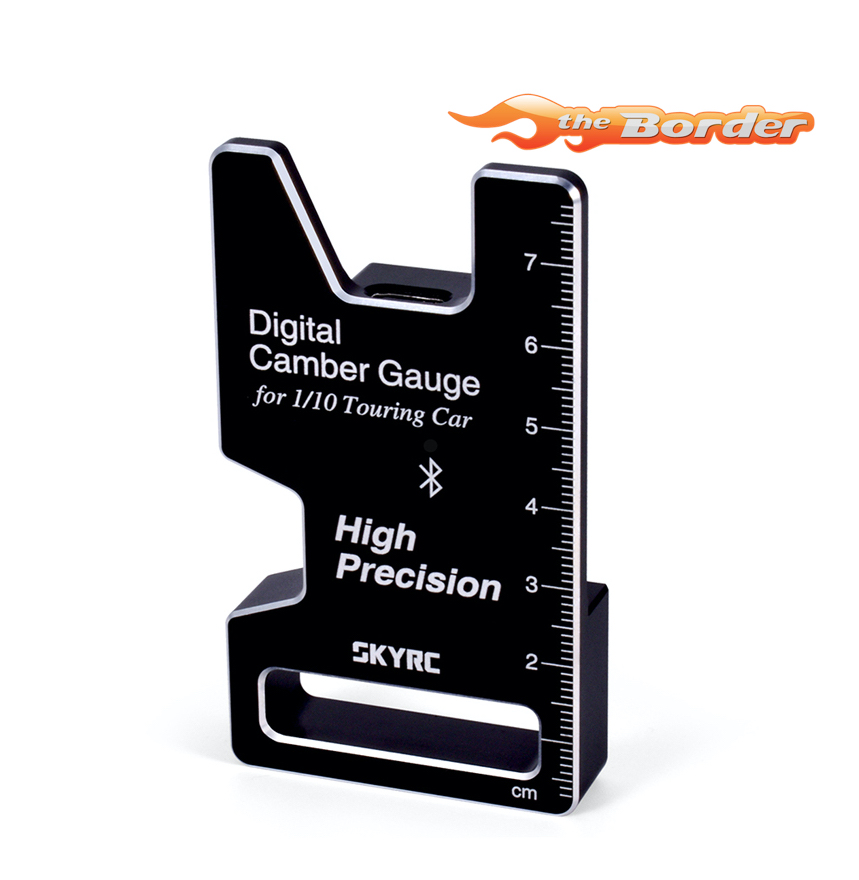

SkyRC Digital Camber Gauge SK-500042
Camber and Toe Gauge Gets Bluetooth
With a nonstop passion for RC car racing, SkyRC upgraded its mechanical predecessor with Bluetooth.
The must-have RC Gears app definitely brings smartness to this gauge. Now our racers can measure the RC car's camber and toe angle and read the data on the phone and on the fly!
RC suspension tuning made easy and smarter!
Watch your Toes & Camber
When it comes to RC grade racing, so many adjustments can contribute to the handling and performance of the vehicle.
Adjusting Camber and Toe are vital adjustments to affect how your touring car performs on the straights and the turns.
Toe In/Toe Out can be adjusted to increase or decrease steering and steering response.
Camber is the relationship of the tire to the ground, such that a tire that is perpendicular to the racing surface has zero camber. If the top of the tire leans in toward the car, it has negative camber; likewise, a tire that leans outward at the top has positive camber. Most RC touring cars will benefit from a negative camber degree, resulting in a slightly wider width and more static tire grip on the track surface, benefiting the turns and reducing roll-overs.
Wheels Setup is a breeze now
On your setup wheels, in your race wheels, or next to your setup station, CTG-015 will give you incredibly accurate readings on the camber angle of your wheels.
The toe-tuning and camber-adjusting allow you to achieve your perfect tire wear and traction point.
This accurate gauge allows you to tweak your camber and camber gain settings, finding peace of mind that you are following a precise, replicable and trustworthy measurement tool.
All data can be read and kept on the phone!
High Accuracy
The data tested by the gauge has high reliability and accuracy. The measurement is accurate up to 0.2 degrees, bringing a better experience to our racers.
Accuracy Meets Craftsmanship
High-hardness aluminum is selected for the case, and strict CNC machining guarantees the stability and reliability that is dust-proof and has strong impact resistance.
Bluetooth 5.0
Faster & More Stable
SkyRC CTG-015 Digital Camber Gauge is built with Bluetooth 5.0, which enables a faster and more stable connection. The app instantly displays real-time data once connected.
Everything is connected
Camber & Toe Gauge has its own app finally!
The app receives and records the races' angle data in real-time via Bluetooth!
Angular adjustment is made easy!

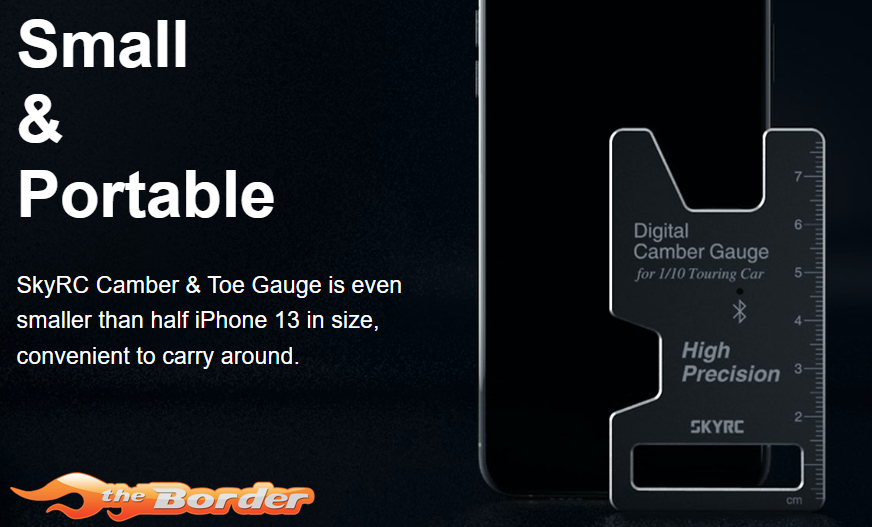

Small & Portable
SkyRC Camber & Toe Gauge is even smaller than half iPhone 13 in size, convenient to carry around.
Universal Charging Port
The charge port is USB Type-C which is accepted as the de facto connector today, so most mobile phone cables can easily handle the charging.
How to achieve toe measuring?
1. Hold the car kit vertically on the setup station
2. Hold the gauge against the wheel, and read the value through the app, with peace of mind achieving a very accurate measurement of toe-in and toe-out.
Size and Weight
Dimension: 45x12x80mm
Weight: 53g
Working Data
Input Voltage: 5V
Input Current: 200-300mA
Interface: Type C
Battery Type: 3.7V LiPo
Battery Capacity: 200mAh
Working Voltage: 3.4-4.2V
Working Current: ＜10mA
Low-voltage Protection: ＜3.4V (Flashes Red)
Measuring Range: ±17.5°
Measuring Accuracy: ±0.2°
Working Temperature: 0℃-50℃
Working Humidity: 5%-90% (None-condensation)
Storage Temperature: -10℃-50℃
Storage Humidity: 1%-75% (None-condensation)
The Sky RC app is available from the App Store or Google Play.
