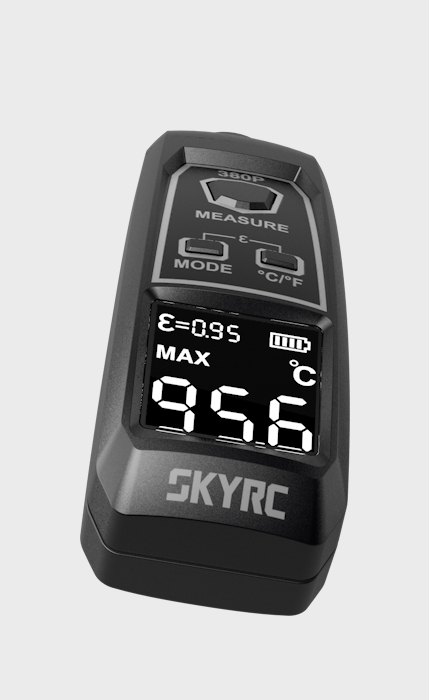

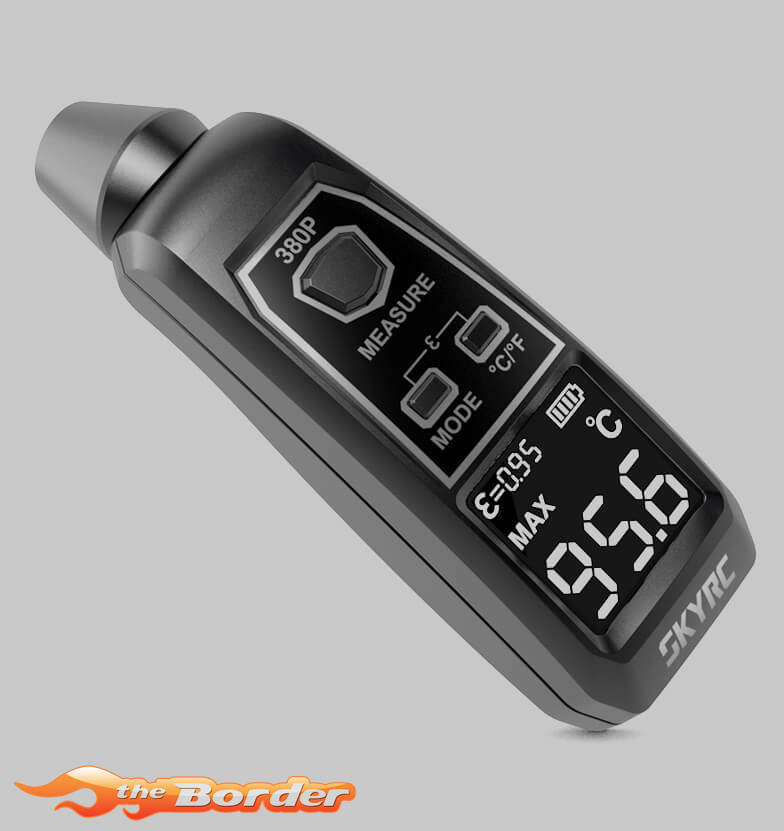

SkyRC Infrared Thermometer 380P 500037

SkyRC Infrared Thermometer 380P 500037

This is a non-contact infrared thermometer specifically designed for use with R/C engines, electronic speed controllers, motors, battery packs, battery chargers and etc.

Simply aim the infrared thermometer at the target and press the measurement button to quickly and easily display the surface temperature!

• High accuracy and high speed infrared sensor
• Four modes for temperature records: Quick Mode / Scan Mode / Max. Value / Min. Value
• Celsius and Fahrenheit scale selectable
• Testing a wide range of temperature from -40℃(-40℉) to 380℃(716℉)
• The infrared emissivity coefficient can be adjusted
• A large LCD can display temperature, emissivity coefficient and battery’s capacity, etc., and applied with back light, which make it easy to operate and read
• Low power consumption and powered by 2 x AAA batteries (Battery Excluded)
• 1 minute auto-off timer to save battery life

SkyRC ITP380 Infrared Thermometer is a must-have for RC hobbyists to track the temperatures.

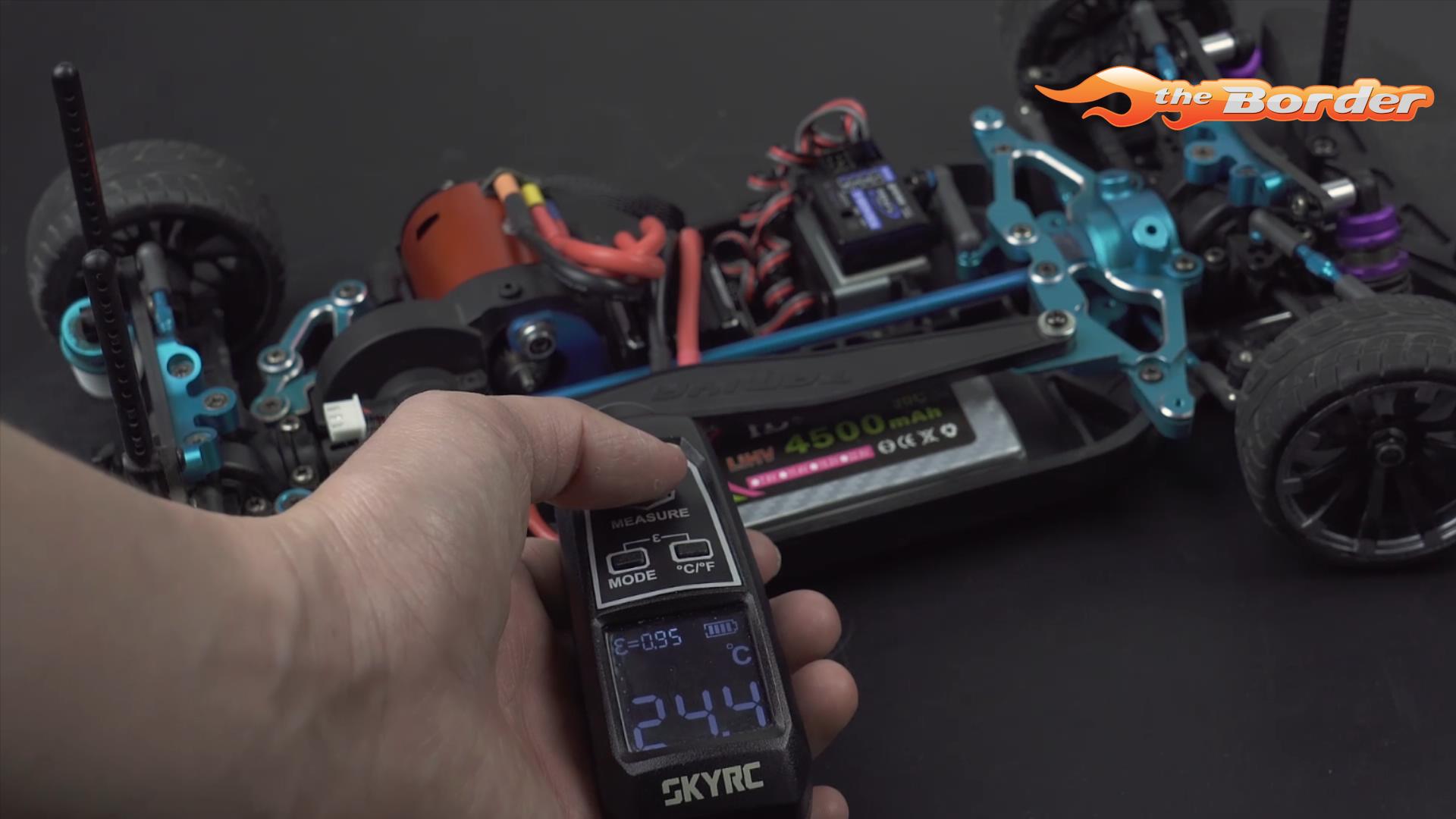

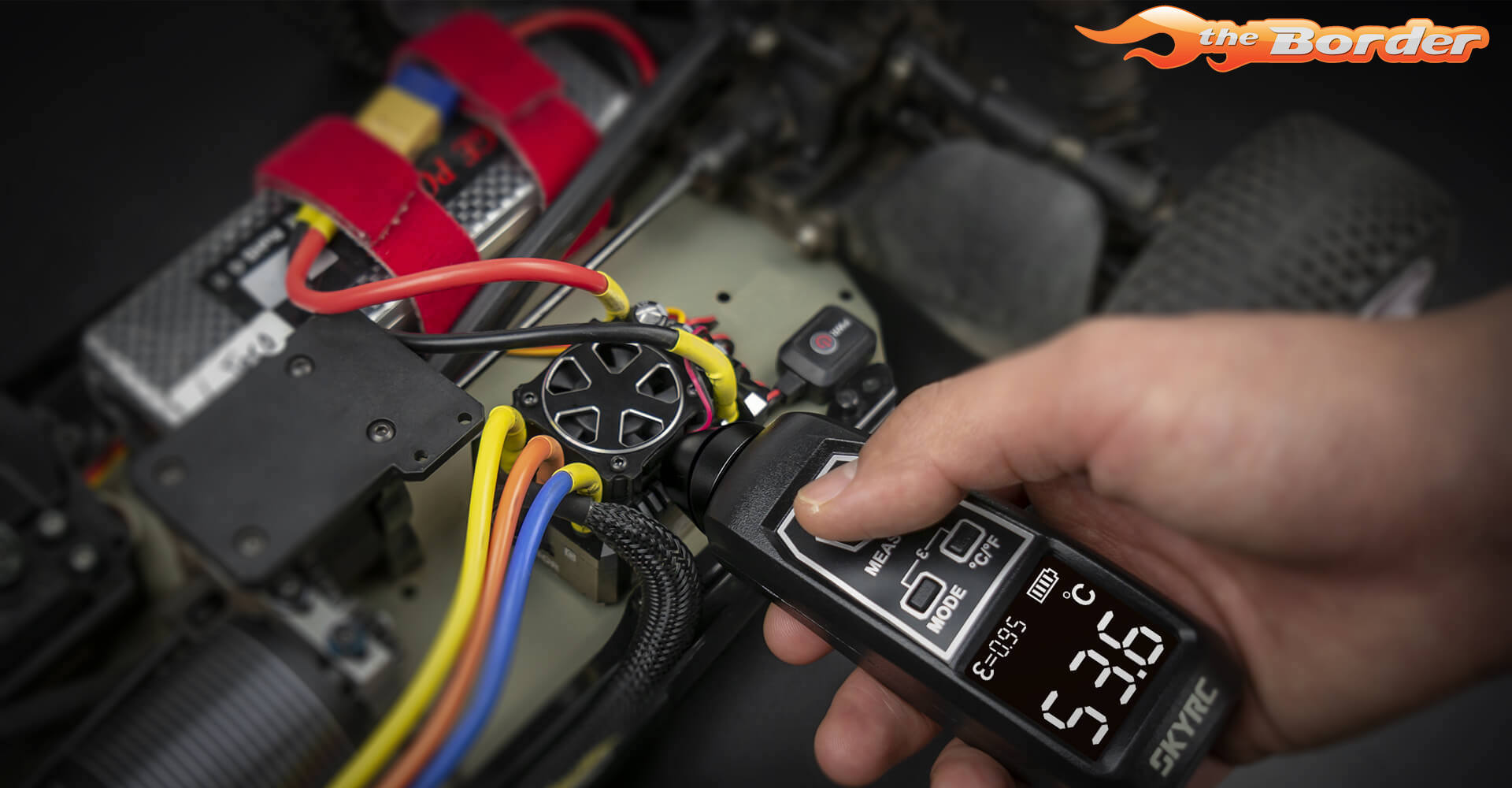

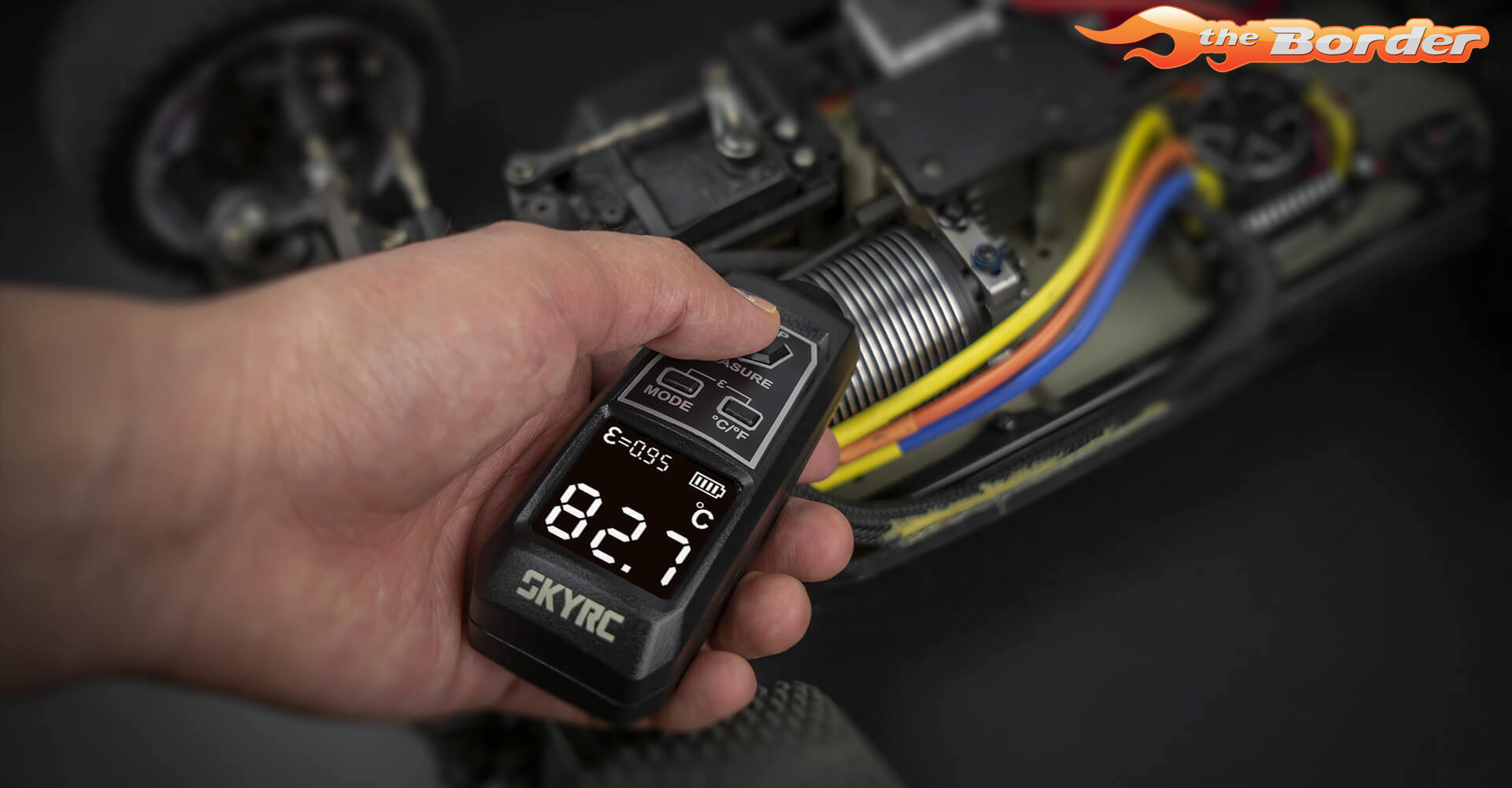

Now you can take temperature measurement at a safe distance with SkyRC ITP380. RC hobbyists will never get burned or air blowing in your face from the RC vehicles, engines, motors, chargers, etc., while taking measurements.
You can trust SkyRC ITP380 to get accurate temperature readings from a safe distance, wherever indoor or outdoor.
SkyRC has engineered the ITP380 temperature measuring with accuracy down to the 0.1 °F and the object temperatures ranging from -40°F (-40°C) to 716°F (380°C).

μm Accuracy
Compared to its predecessor, SkyRC deploys a classic TO-46 housing thermopile sensor. The thermopile sensing element, composed of 116 elements of small thermocouples with an active area of diameter 545 μm on a silicon chip, absorb the energy and produce an output signal. It provides nearly Johnson-noise-limited performance, which can be calculated by its ohmic series resistance.

Distance-to-Spot Ratio 6:1
Every infrared thermometer has a “distance-to-spot” (D:S) ratio that tells you the diameter of the area being measured compared to the distance from the target.
The 380P thermometer has a distance-to-spot ratio of 6:1. That means it measures an approximately one-inch-diameter spot when it’s 6 inches from the target (about 2.5 cm at 30 cm).
It means ITP380 thermometer can accurately measure targets at greater distances compared to many other thermometers;
Distance-to-spot ratio is crucial to measuring! So be sure to measure at this D:S ratio.

Quick and Accurate Readings

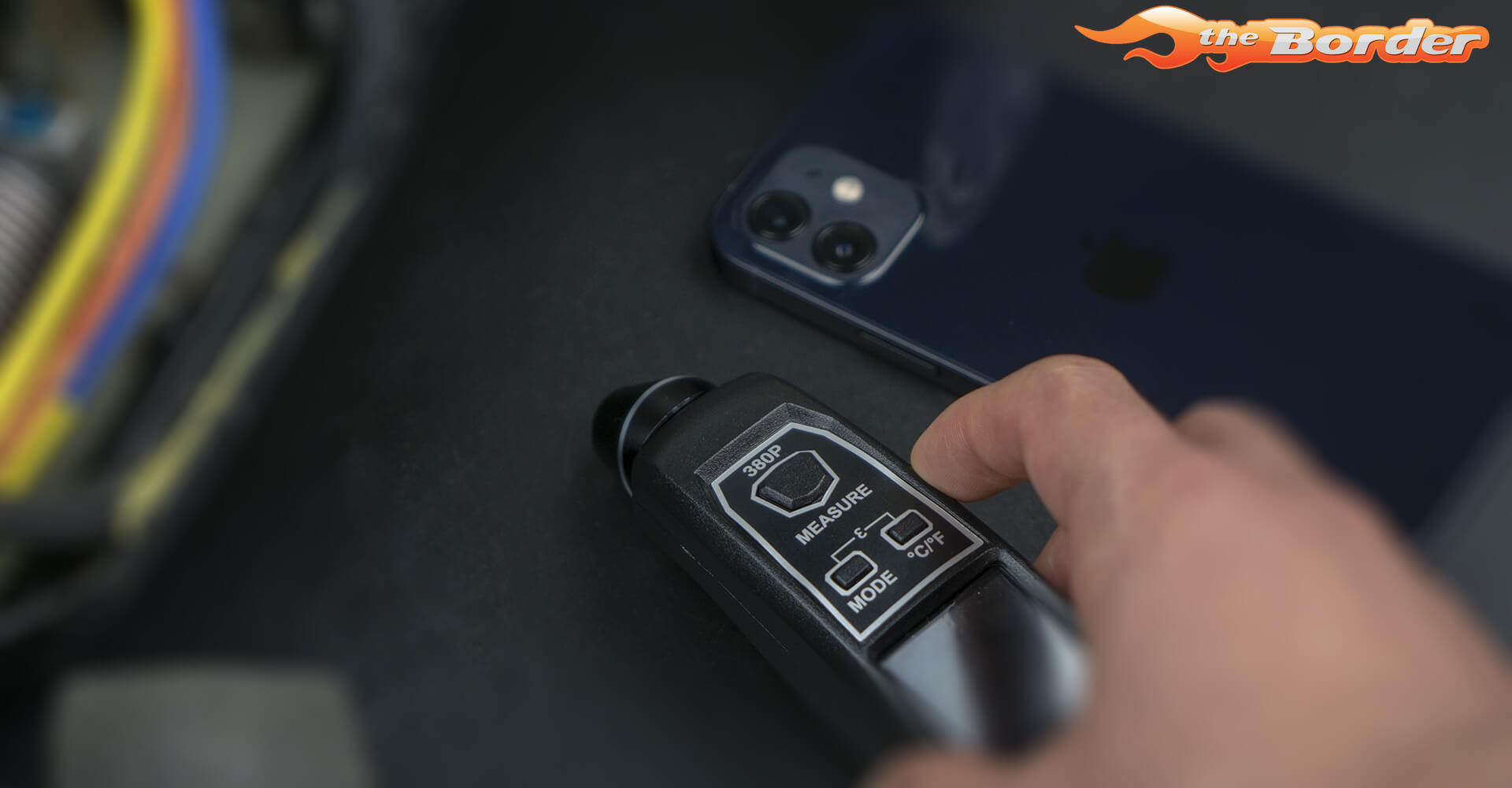

Point, aim, tap: three steps to get accurate readings on the go within 1 second.

Easily Selectable Between Fahrenheit and Celsius
To switch between Celsius and Fahrenheit, simply press the UNIT button. The value will be converted instantly, thanks to the pre-programmed algorithm.

Low-battery Indication Auto-power Off
The thermometer display will indicate whenever low on battery. It will automatically power off after inactivity of 60 seconds.
Battery life is extended!

Impressive Stunning VA Display
The VA invert display enables super-high static contrast ratios for impressive stunning visioning. Indoor or outdoor, you will get clear data reading from any angle.

Multiple Emissivity Coefficients
The emissivity coefficient indicates the radiation of heat. For some products, the emissivity coefficients varies with the temperature.
As a professional infrared thermometer, SkyRC ITP380 can be adjusted for different emissivity coefficients depending on the material to achieve the best measurement.

SURFACE MATERIAL    EMISSIVITY COEFFICIENT
Anodized Aluminum    0.77
Plastics    0.91
Rubber, hard glossy plate    0.94
Carbon pressed filled surface    0.98
