SRT T75 Coreless Servo HV CNC Alum. 60kg/014.sec @ 7.4V

€ 143,99 inc. BTW

Op voorraad

Qty
Stel een vraag over dit product

SRT T75 Coreless Servo HV CNC Alum. 60kg/014.sec @ 7.4V

& Ideal for 1/8 on road and 1/5 off road scale applications
& Superior Holding Torque
& Incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& Programmable High torque Brushless servo
& SSR mode compatible
& 25T output shaft
& 2 μsec Dead Band

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
T75  0.16 55.0/763.8  0.14 60.0/833.2  0.12 70.0/972.1  Steel Brushless  Semi-metal  40.7*20.5*39.0

83.0



PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.14 sec/60 degrees at no load
operating speed (8.4v): 0.12 sec/60 degrees at no load
stall torque (6.0v): 55.0kg.cm (763.8 oz/in)
stall torque (7.4v): 60.0kg.cm (833.2 oz/in)
stall torque (8.4v): 70.0kg.cm (972.1 oz/in)
potentiometer drive: direct drive

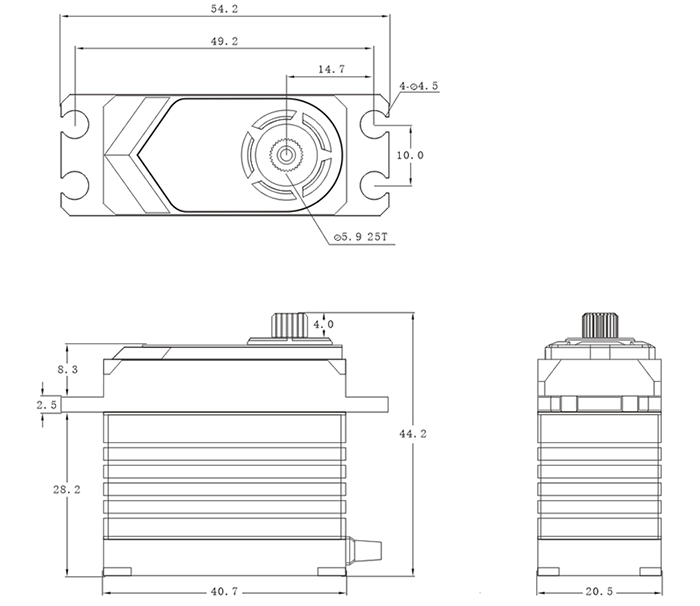

dimensions: 40.7 x 20.5 x 39.0 mm /1.60 x 0.81 x 1.54 in
weight: 83.0g (2.93 oz)
connector wire length: jr 300 mm
