ToolkitRC M8D LiPo 1-8S DC Charger 30A TK13000

€ 189,99 inc. BTW

Leverbaar met 3-4 werkdagen.

Qty
Stel een vraag over dit product

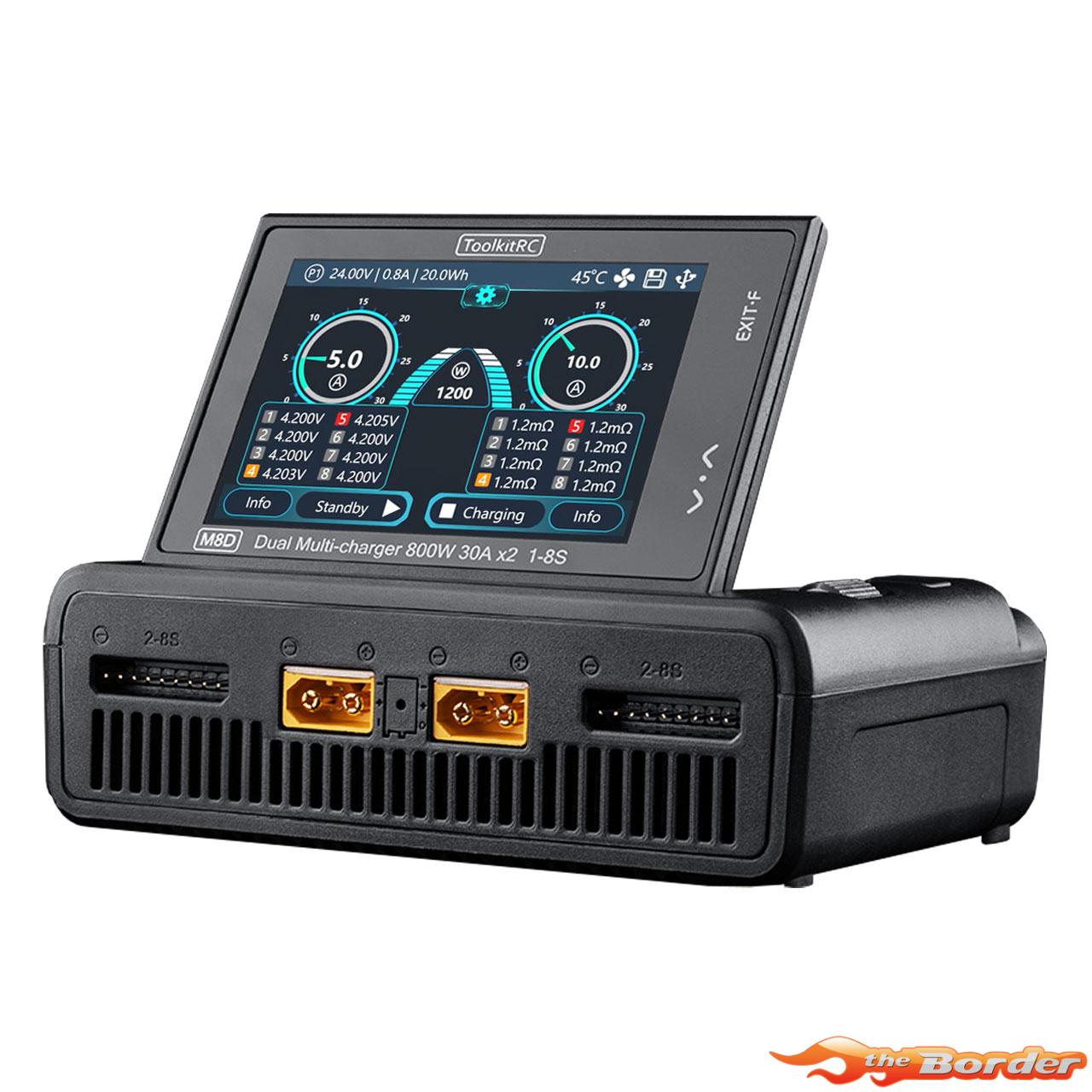

ToolkitRC M8D LiPo 1-8S DC Charger 30A TK13000

The M8D charger with a flipable touchscreen is a powerful and compact 2-channel charger for, among other things, up to 8S lithium batteries. With a total of 1600W and 50A charging current in synchronized mode, it ensures that batteries are reliably supplied with the energy they need. In addition, it has a 65W fast charging function that can achieve useable results even in a short time.

The new UI design, which is used for the first time on the M8D and is based on the user interface of real cars, makes operation via the touchscreen as simple and intuitive as possible. In the settings menu, for example, there are mostly sliders and on/off switches, while charging can be controlled using the buttons in the main screen. The display itself is optimized to clearly display the most important information of both channels. In addition to the attractive UI design, the function for destroying a battery is also new. This feature ensures that used batteries can be disposed of safely and compliantly at the end of the process.

Features:

  • Up to 1600W charging power and a maximum of 50A charging current
  • Max. 800W discharge power
  • 2 channels and quick charge function

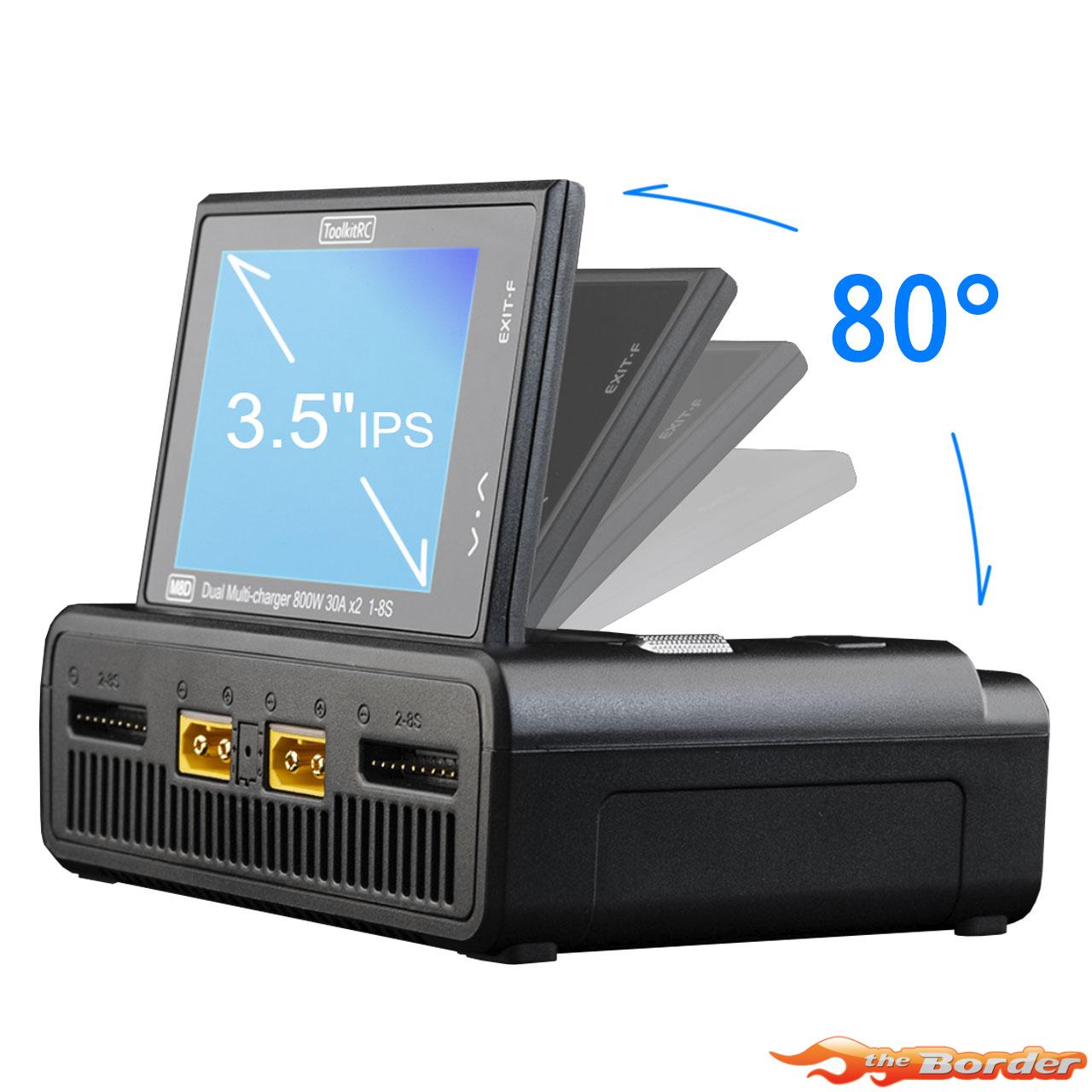

  • Flipable 3.5” touchscreen with a 480x320px resolution
  • Easy-to-use user interface
  • Includes USB-C port
  • Various security features
  • Technical Specifications:
    Input Voltage: DC 10-49V, max. 60A
    Charge Power: max. 30A, 800W x2 (Asynch. Mode)
    max. 50A, 1600W x2 (Synch. Mode)
    Discharge Power: max. 30A, 800W (Recycle Mode)
    max. 10A, 40W (Normal Mode)
    Charging Accuracy: –
    USB C: 5-20V @ 65W or Upgrade
    PD QC PPS AFC FCP SCP PE SFCP
    Balance Current: 2000mA, 4.2V
    Cells: LiPo/LiFe/LiIon/LiHV/LTO 1-8S
    Cells: NiMH 1-20S
    Pb Battery Voltage: 1-15S
    Voltage: –
    Display: IPS 3.5”, 480x320px Touch LCD
    Dimensions: 140 x 110 x 50mm
    Weight: 450g

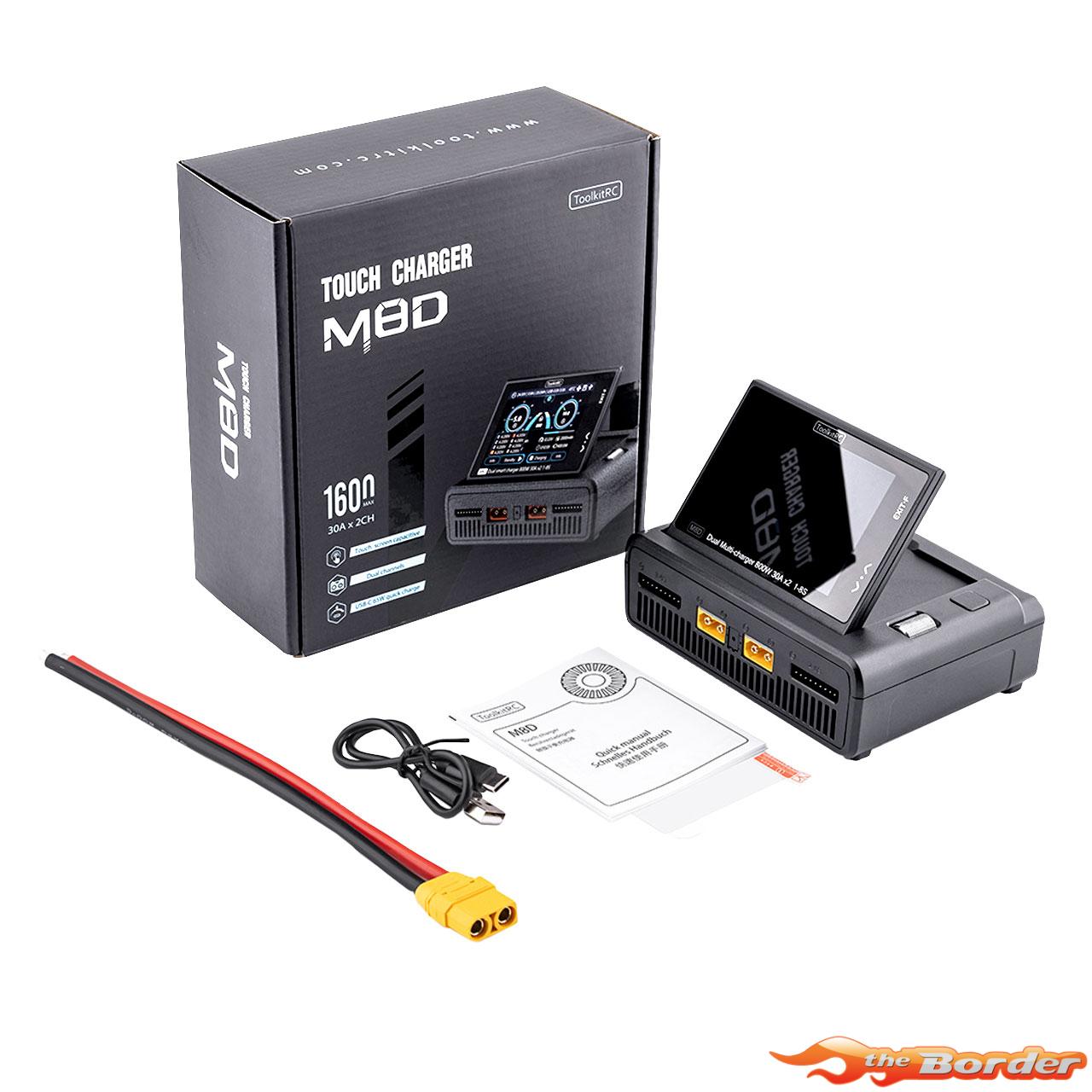

    Delivery:

    • 1x M8D charger
    • 1x USB-C cable
    • 1x XT90 input cable
    • 1x Screen protector
    • 1x Manual
