Traxxas EVX-2 Electronic Speed Control (land version, fwd/rev) TRX3019R

Traxxas EVX-2 Electronic Speed Control (land version, fwd/rev) TRX3019R

For 16.8-Volt Dual-Battery Dual-Motor Setups!

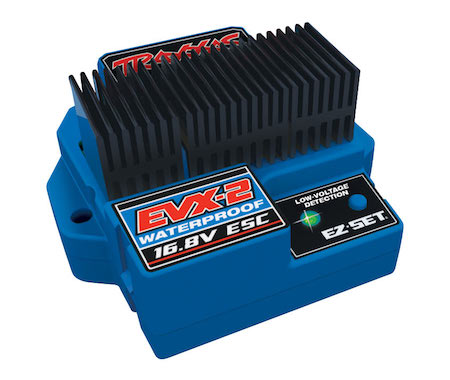

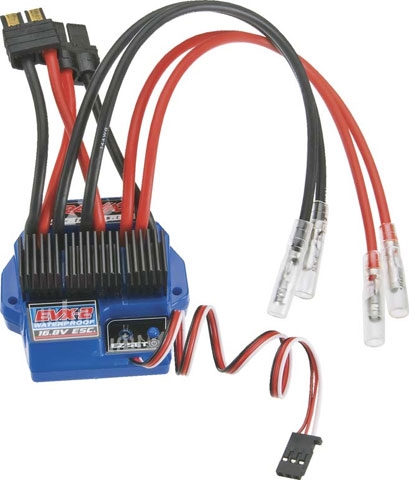

EVX-2™ Waterproof FWD/REV ESC
with Low Voltage Detection (LVD)

The EVX-2 delivers an incredible 16-plus volts, from two battery packs, making 16.8-volt, twin-motor setups more powerful than ever! Designed by Traxxas, the EVX-2 features a completely waterproof design, three drive profiles, Thermal Shutdown Protection, and gold-plated patented Traxxas High-Current Connectors. The EVX-2 also includes patented Training Mode.™ This profile reduces the overall power output of the EVX-2 by 50% making it easier for young/new drivers to develop their control skills before unleashing full-power operation. EVX-2 is equipped with two-stage low voltage detection (LVD) to allow LiPo battery use. The EVX-2 is manufactured by Traxxas to ensure the highest level of quality and support.

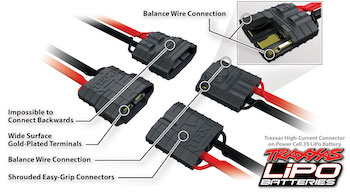

Traxxas High-Current Connector*
The EVX-2 ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.

The EVX-2 uses Traxxas ' exclusive EZ-Set push-button set-up and a multi-colored LED making it a snap to adjust. Its microprocessor control has three built-in programming modes including: Sport Mode with forward, brakes, and reverse; Racing Mode with forward, brakes, and no reverse; and the patented Training Mode™ that limits forward and reverse power by 50% while still applying 100% brakes. Built-in thermal shutdown protection adds an extra level of safety. Sophisticated, high-frequency operation and low internal resistance provide longer run times, more speed, and more fun!
The exclusive patented Training Mode™ limits full throttle output to 50% making it easier for new or young drivers to develop their control skills. With the high-frequency efficiency of the EVX-2, run time is also greatly increased. When they're ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!

EVX-2 Waterproof ESC Features

• Built-in two-stage low voltage detection (LVD)
• for Lithium Polymer (LiPo) battery use
• 16.8 Volts of Power
• Waterproof Design
• Microprocessor Controlled
• Traxxas High-Current Connectors*
• Three Drive Profiles
• Patented Training Mode
• EZ-Set® Push-Button Set-Up
• Thermal Shutdown Protection
• For Traxxas E-Maxx®, E-Revo® and Summit

EVX-2 LVD (WATERPROOF) SPECIFICATIONS

• Input voltage:        6-14 NiCad and NiMH cells (7.2 to 16.8 volts DC)
• 4-cell LiPo (14.8 volts DC)
• Case Size:        2.27"W x 2"D x 1.05"H
• Weight:        3.6 ounces
• Motor Limit (540 size):        10-turns
• Motor Limit (550 size):        12-turns
• On-Resistance­ (@Trans)–FWD/REV:        0.004 ohms / 0.004 ohms
• Rated Current–FWD/REV:        180 amps / 180 amps
• Braking Current:        360 amps
• Continuous Current (at 100°F amb.):        30 Amps
• Reverse Delay:        None
• BEC Voltage:        6.0 volts DC
• BEC Current:        2.5 amps
• Power Wire:        14 Gauge / 3"
• Input Harness Wire:        26 Gauge / 9.5"
• Motor Wires:        14 Gauge / 4"
• Transistor Type:        MOSFET
• PWM Frequency:        1700 Hz
• Thermal Protection:        Thermal shutdown
• Profile selection:        Sport Mode:
  • 100% fwd, 100% brakes, 100% rev.
• Race Mode:
  • 100% fwd, 100% brakes, no rev.
• Training Mode*:
  • 50% fwd, 100% brakes, 50% rev.
  • Single-button setup:        Yes, Traxxas EZ-Set®
