Traxxas Mount for Telemetry Expander 6562

Works with 6730 Chassis brace kit

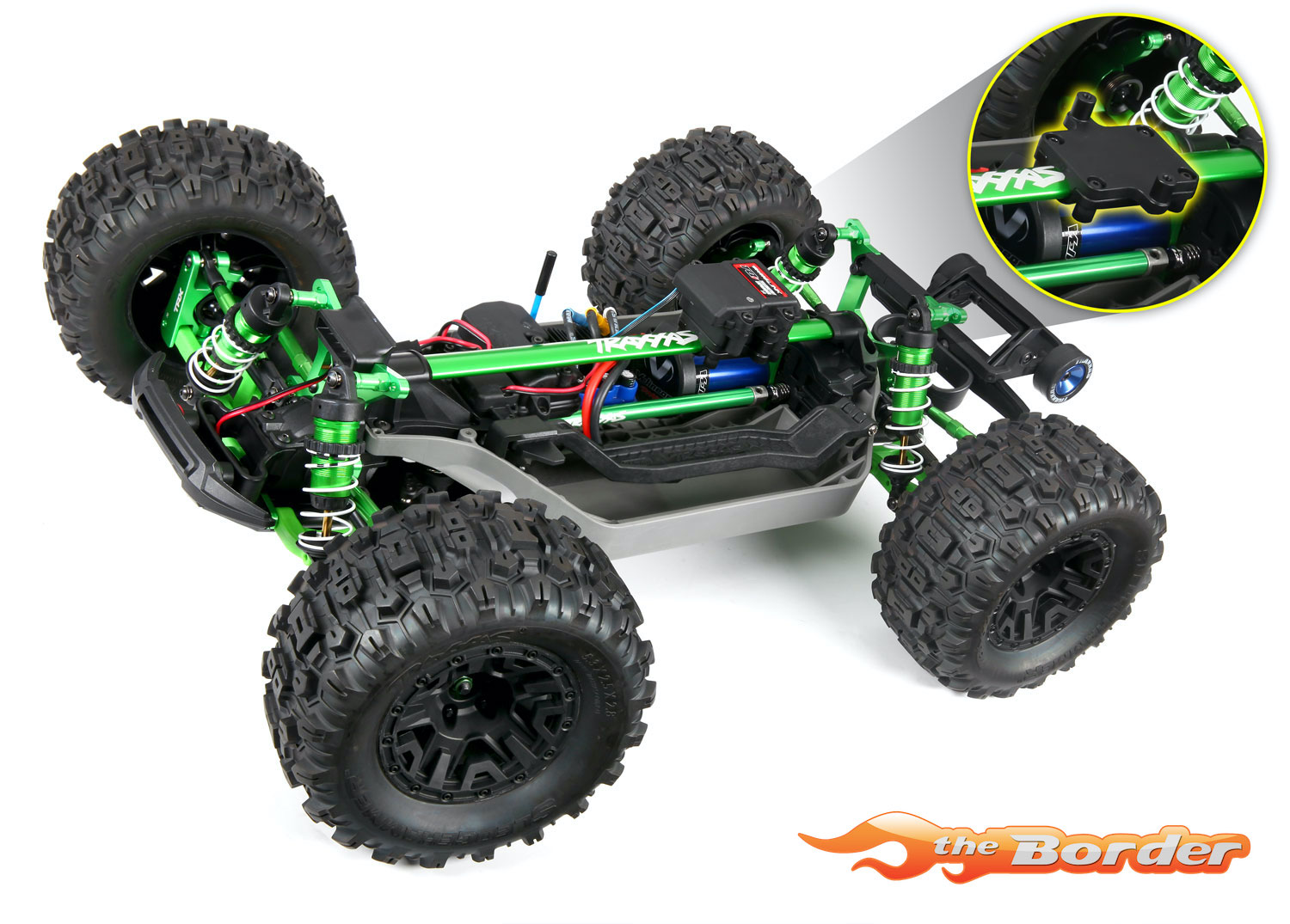

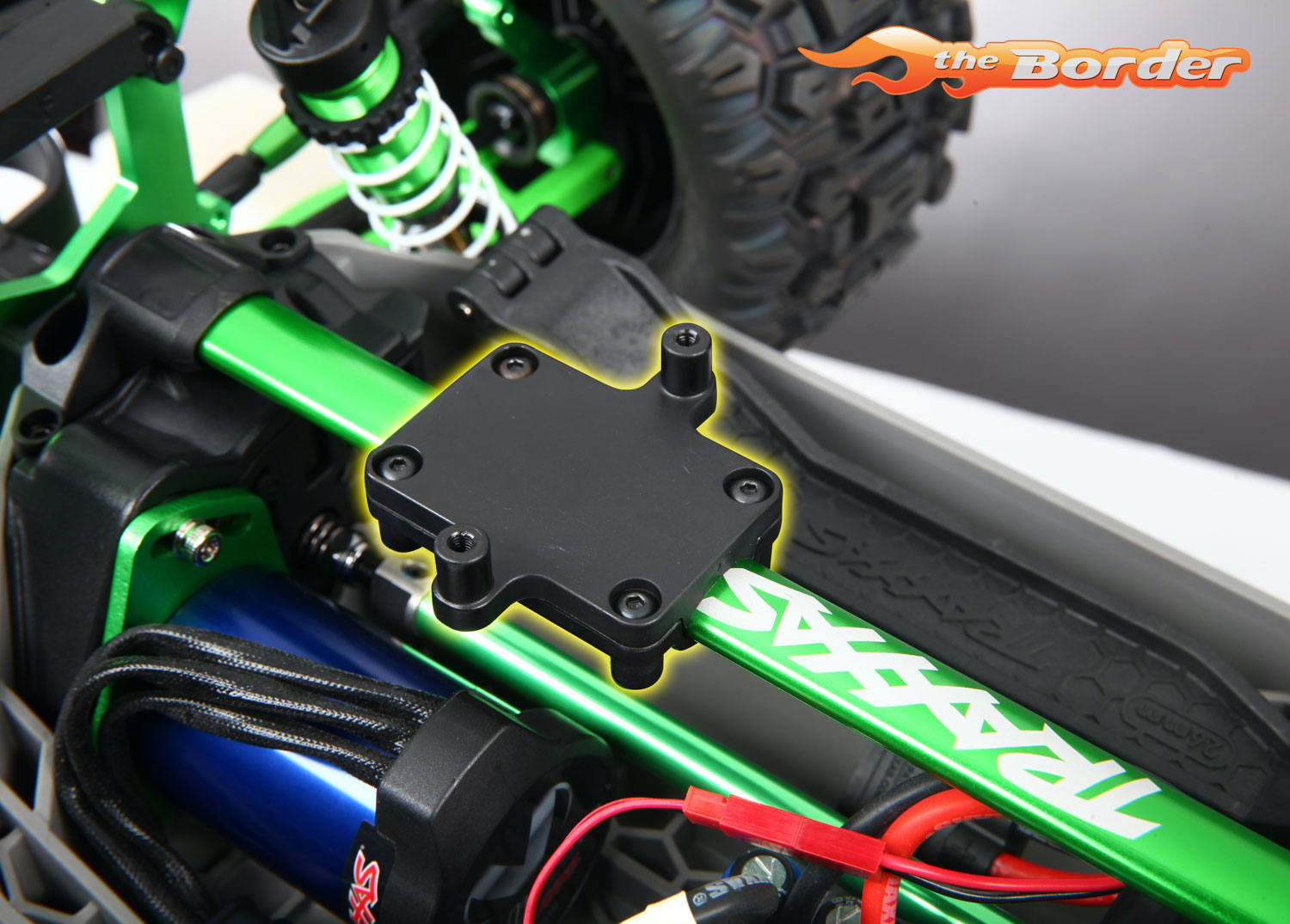

Once you've installed the chassis brace, it's time to position the telemetry expander mount. The Traxxas Telemetry Expander 2.0 accepts up to six different plug-and-play sensors. Maybe you want to keep an eye on motor temperatures and ambient temperatures as well as the battery voltage. The choice is up to you. You'll want to position the mount so that you're not straining any of the sensor wires. On Rustler 4X4 models, you will also need to position the mount to make sure it clears the internal body brace.

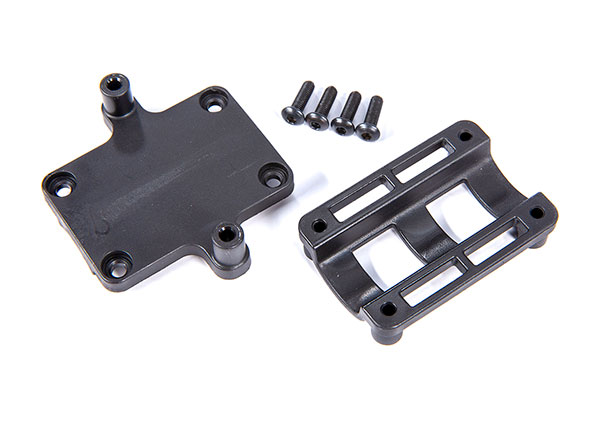

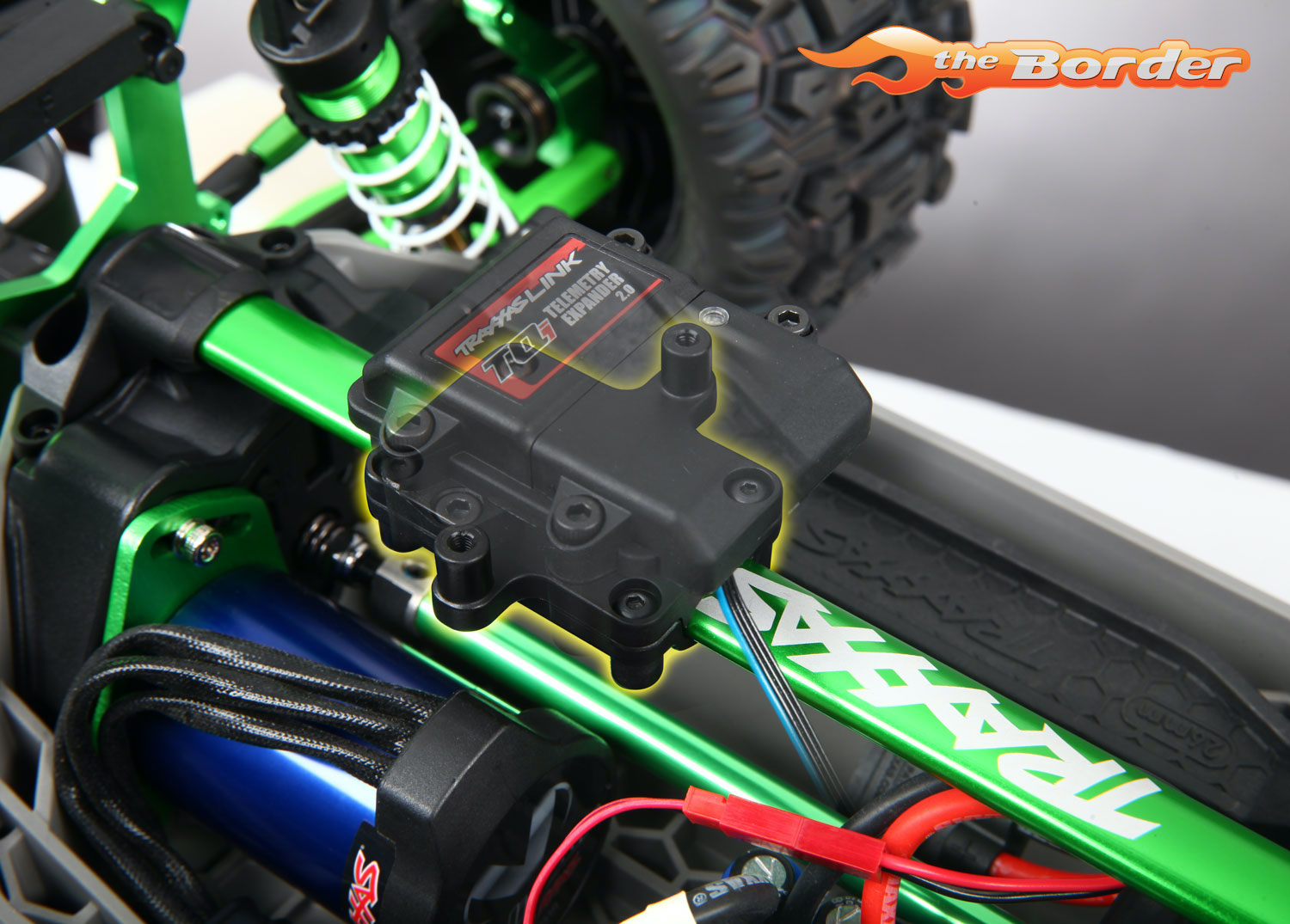

Secure the upper and lower halves of the mount to the brace with the solid half oriented on the top. Before you tighten the mount completely, do a test fit of the expander to make sure all the wires will reach and the body cage clears the expander. Once you are satisfied with the location, tighten the two halves down to the mount and then fix the Telemetry Expander 2.0 to the mount with two screws. If you want to learn more about the full potential of the Traxxas TQi telemetry system, GPS Module, or Traxxas Link check out this link.

Fits on:

  • Rustler 4×4
  • Slash 4×4 with LCG Chassis
