Traxxas Pro Series Magnum 272R Transmission Complete 9495
Klik hier voor hoe je de gearbox afstelt.
Klik hier voor de installatie handleiding van de 272R Transmission.
Traxxas Pro Series Magnum 272R Transmission Complete 9495
Traxxas Pro Series Magnum 272R Transmission Complete 9495
Fits 1/10 scale cars like 2WD Rustler, Bandit,Stampede,Slash, Drag Slash
Developed specifically for the hard-hitting Drag Slash, the Pro Series Magnum 272R upgrades key features of the standard Magnum transmission for maximum durability and next-level performance. A new low-profile design, 3.2 mm motor plate and hardened steel top shaft are just the beginning. The Pro Series Magnum 272R represents a complete performance redesign and now it’s available for your standard or VXL 2WD Bandit, Rustler, Stampede, or Slash.
Traxxas Pro Series Magnum 272R Transmission Complete 9495
| QUICK FEATURES ON PRO SERIES MAGNUM 272R TRANSMISSION (#9495) |
|

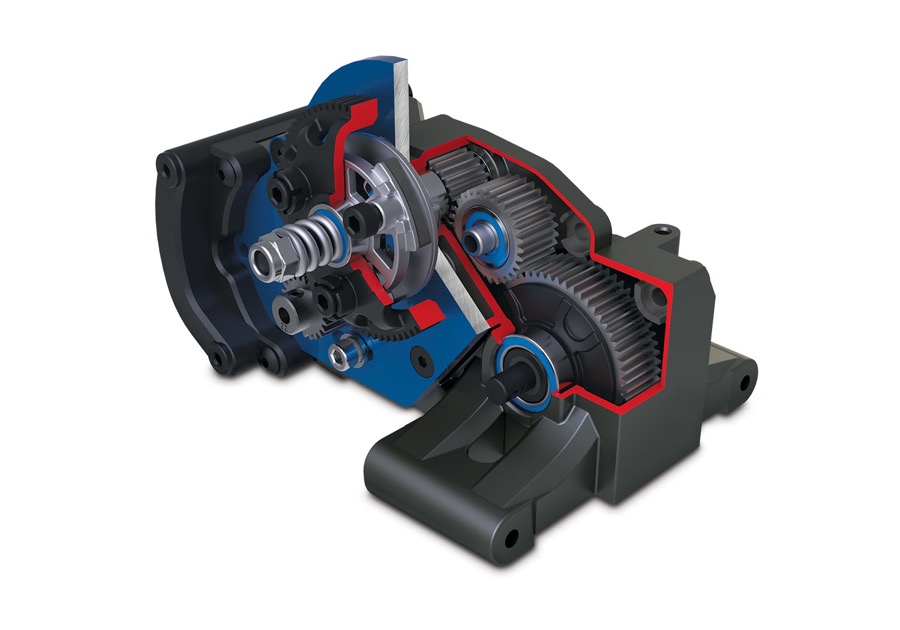

- Redesigned transmission case
- Reinforced for added strength and rigidity
- Low-CG design for improved handling
- Ultra-rigid wheelie bar mount
- 3.2 mm Aluminum Motor Plate
- Increases structural rigidity
- Improves heat dissipation
- Compatible with fixed gear mesh system
- Hardened-steel top shaft
- Press-fit top gear for superior strength and durability

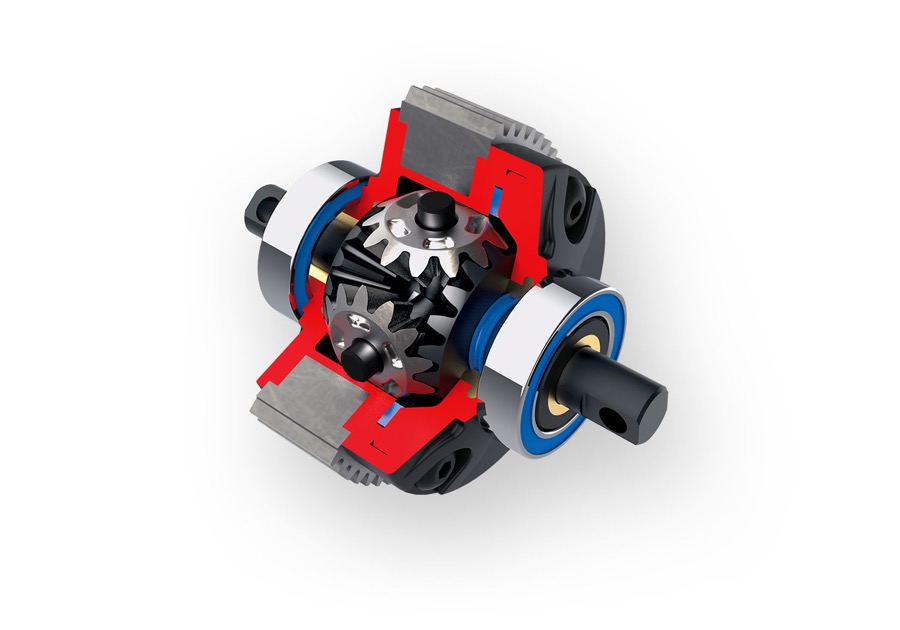

- Sealed differential
- Hardened-steel beveled gears

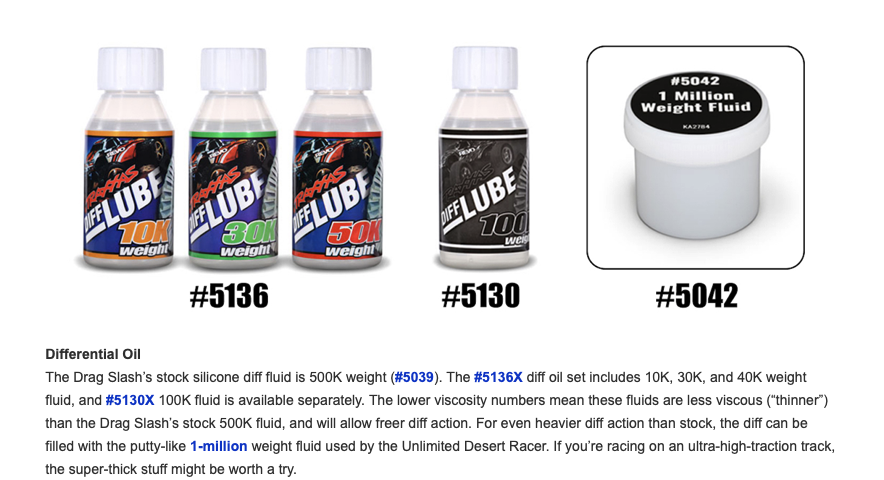

- Tunable with silicone differential oil
- Easy access differential
- Simple removal for tuning and maintenance
|
Traxxas Pro Series Magnum 272R Transmission Complete 9495

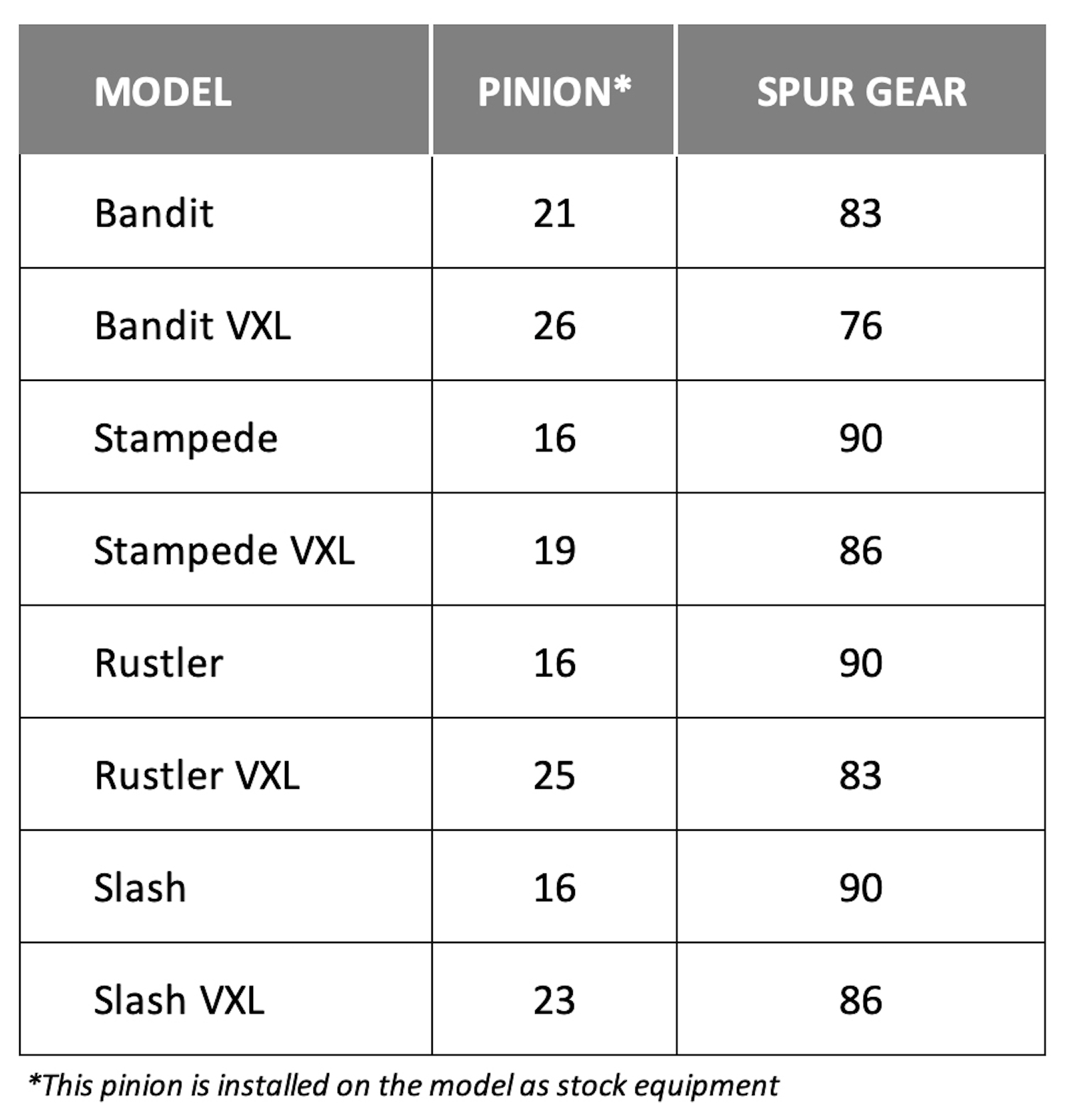

Below is a chart for reference to see which pinion & spur are used out of the box on several models:
