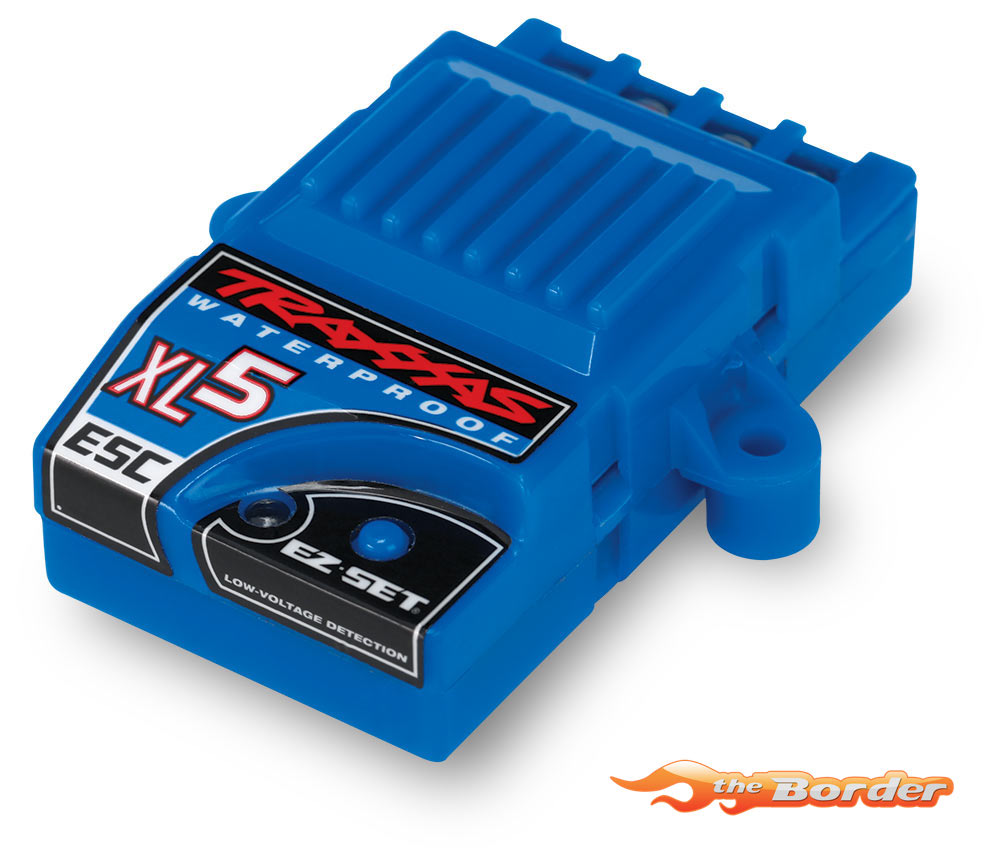

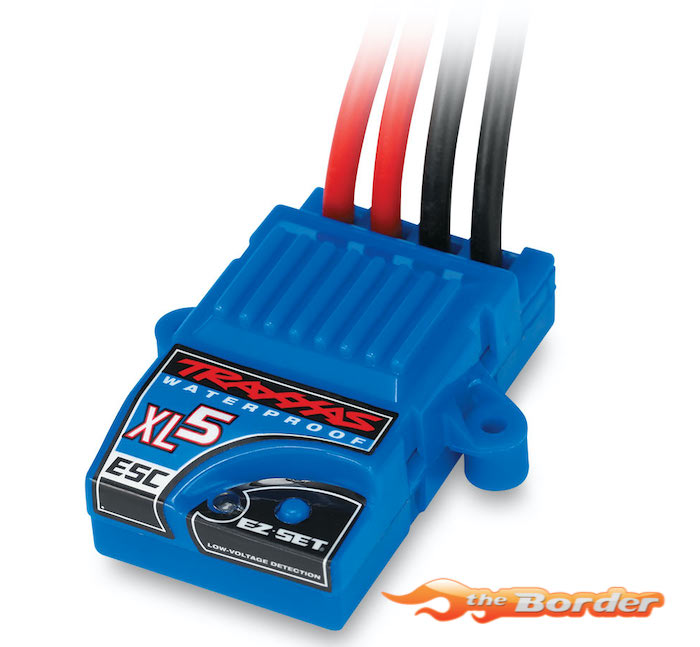

Traxxas Sealed XL-5 Forward/Reverse/Brake Brushed ESC 3018R

Traxxas Sealed XL-5 Forward/Reverse/Brake Brushed ESC 3018R

Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, Thermal Shutdown Protection, 4-8 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patent pending Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support.

Patent-Pending Training Mode™
An exclusive feature that places the XL-5 ahead of the pack is the patent pending Training Mode. This feature reduces the overall power output of the XL-5 by 50% making it easier for new drivers to control their model.  When they’re ready, simply change profiles to unleash full-throttle action.  Only Traxxas has it!

Waterproof XL-5 ESC Features

Innovative watersealed design
15-turn motor limit for 540 size motors
12-turn motor limit for 550 size motors
Fully-proportional forward, reverse, and braking control
Programmable with three drive profiles:
Sport Mode – Fwd / Brake / Rev
Race Mode – Fwd / Brake
Training Mode – 50% Fwd / Brake / 50% Rev
EZ-Set® push-button setup
Multi-color LED
Thermal shutdown protection
Efficient, low-loss MOSFET design
High-capacity heat sink
Smooth, high-frequency operation
Easy installation in Traxxas models
Backed by the Traxxas Lifetime Electronics warranty

XL-5 (WATERPROOF) SPECIFICATIONS
Input voltage: 4-8 Cells (4.8 to 9.6 Volts DC)
Case Size: 1.23"W x 2.18"D x 0.61" H
Weight: 69,2g
Motor Limit: 15-turns* (540 Size) / 12-turns* (550 Size)
On Resistance Forward: 0.007 Ohms
On Resistance Reverse: 0.014 Ohms
Peak Current – Forward: 100A
Peak Current – Reverse: 60A
Braking Current: 60A
Continuous Current: 14A
BEC Voltage: 6.0 VDC
BEC Current: 1A
Power Wire: 14 Gauge / 5"
Input Harness Wire: 26 Gauge / 9"
Transistor Type: MOSFET
PWM Frequency: 1600 Hz
Thermal Protection: Thermal shutdown
Profile selection: Profile 1: Sport Mode:
100% fwd, 100% brakes, 100% rev

Profile 2: Race Mode:
100% fwd, 100% brakes, no rev.

Profile 3: Patent Pending Training Mode™:
50% fwd, 100% brakes, 50% rev.
Single-button setup: Yes, Traxxas EZ-Set®
