The X1 kit does not contain a body.
- All-new one-piece chassis design with more consistent handling in all conditions and improved tweak resistance
- Narrower chassis shape reduces chassis drag during cornering
- Rear POD concept on top of chassis for less drag and improved tweak resistance
- Adjustable POD angle controlled by set screw at the rear of chassis for fine tuning
- Rear spring location improves forward traction with increased adjustability and lower CG
- Rear droop adjustment through rear POD spring tension that sits in a special composite adjuster
- Universal rear spring nut holder works for both conical and linear springs
- 2-piece lower pod plate mounts to the bulkheads, offering droop and pod angle adjustments with support for the side springs
- Ultra-light, lower CG bulkheads are foundation of new POD system
- Left side bulkhead has mounting holes incorporated to mount optional motor cooling fan
- Lowered pivot holder and small diameter pivot ball offer lower roll center positions and greater adjustment range
- Carbon Fiber top plate for center shock and side damper mountings
- New rear carbon side spring brace aligns with new POD geometry
- Composite Snap Lock™ bushings press into carbon fiber parts for secure and reliable hardware installation
- All-new spring-free center shock absorber with 1-hole piston provides exceptional bump handling, low maintenance, and helps lower CG.
- Side braces with a narrower design save weight and leave more space for electronics and also allows better body fitment
- Narrower side brace mounting holders use M2.5 screws for weight savings
- Aluminum side link holders with 2-pin design for more rigidity and improved tweak resistance
- 2-pin carbon fiber side link plates integrate with aluminum holders for reliable alignment and offer 3 side link front pivot mounting positions for maximum adjustability
- New wing mounting system which saves weight and provides cleaner design and improves the durability and track width adjustment possibilities
- New adjustable wing angle for greater adjustment possibilities
- New redesigned lower arms with more material around the holes for improved durability in serious crashes
- New battery mounting system works with rear brace and front backstop for convenient installation
- Two body post mounting position options for different battery packs allows for different configurations
- Aluminum side spring retainers for more precise and consistent side spring mounting
- Most commonly used soft front springs included in kit for best all-around starting set-up
Chassis.
All-new one-piece chassis design with more consistent handling in all conditions and improved tweak resistance.
The new 2024 chassis features a revised layout with new side braces for additional flex control, 2 new positions for servo mounting in forward/rearward alternatives related to the wheelbase setting, and a new hole for the alu top-deck mount & battery backstop.
The super-narrow chassis creates maximum traction while still having excellent steering and cornering speed. The chassis’ torsional stability also helps eliminate the “scrub effect” in high-speed corners. Machined from premium high grade carbon fiber material.
Rear POD.

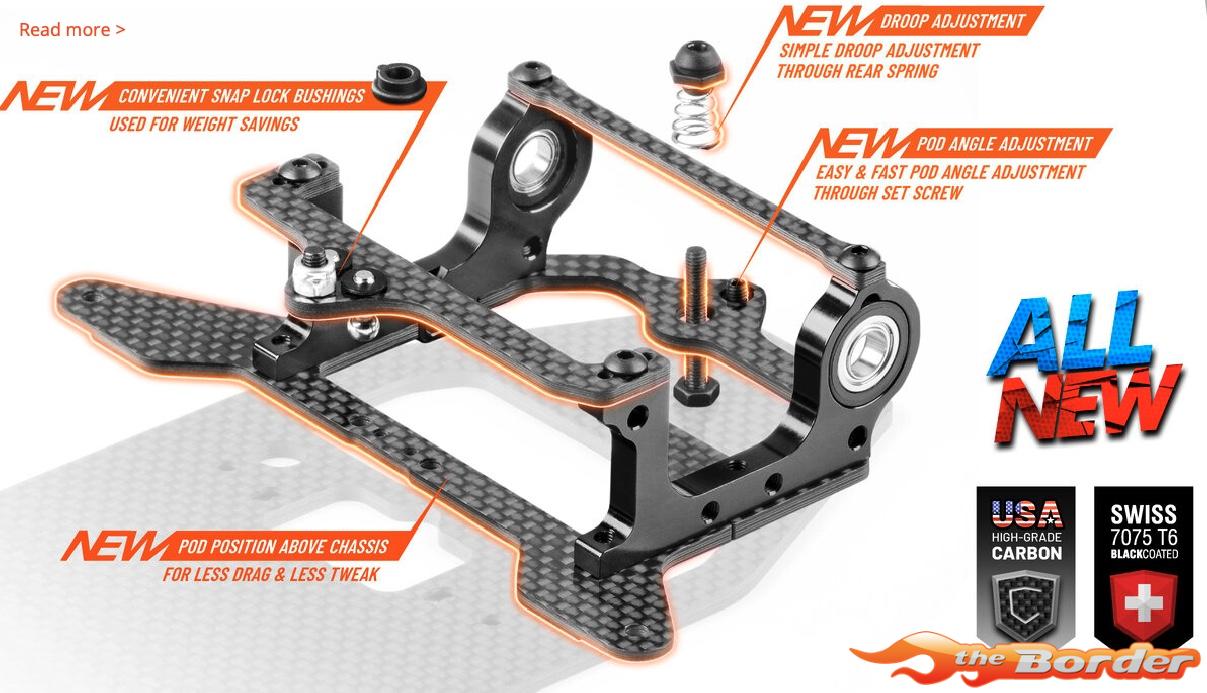

New 2-piece rear POD concept is positioned above the one-piece chassis. The new configuration is more adjustable with improved tweak resistance. The new POD plate is used to set droop, pod angle adjustment and supports the side springs. All-new rear spring location creates more forward traction and lowers CG.
Screenshot
Bulkheads.
New lightweight aluminum bulkheads help lower CG as part of the new POD assembly, with the left side bulkhead adding a cooling fan mounting provision.
Rear Wing Mount.
Rear wing mount is mounted directly to the one-piece chassis which allows to significantly reduce weight and simplified assembly. The aluminum wing mount increases durability and allows complete wing adjustment including height & angle.
Adjustable Wing Mounting System.
The adjustable wing mount system is a unique new feature of the X1. The aluminum wing mount is attached directly to the chassis with the carbon wing plate attached to the mount using pivot balls which allows to adjust angle of the wing.
There are 3 different wing angle adjustments which have direct effect on the car downforce and the car characteristics. A 0.2 mm difference in thickness between the lower and upper shims creates a 1° wing angle.
Rear Assembly.

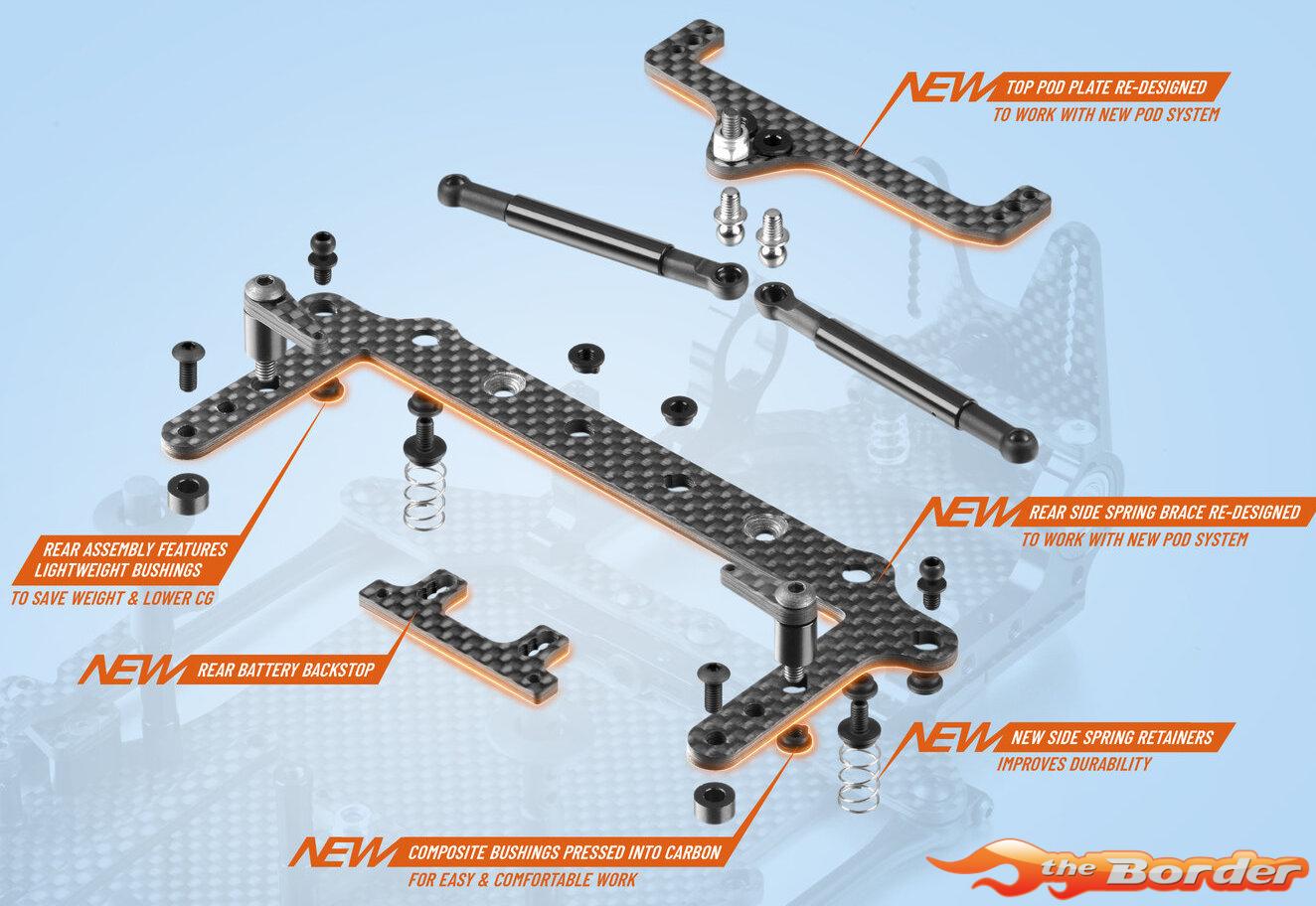

The rear carbon fiber side spring brace utilizes composite inserts pressed into the plate at the hardware attachment points for easier assembly and maintenance.
POD Mounting System.
All-new lowered center pivot holder controls POD movement and roll center adjustment. A small diameter pivot ball allows for the lower roll center options.
Snap Lock™ Bushings.
All-new super smart XRAY Snap Lock™ Bushings replace locknuts and aluminum bushings. The 13 super small bushings reduce weight and stay securely held in place after installation for easy chassis assembly and maintenance.
Side Spring Retainers.
The new side spring retainers, made from steel instead of composite, produce more precise and more consistent side dampening action.
Center Shock.
All-new center shock provides exceptional bump handling, low maintenance, and helps lower CG.
The spring-free design significantly reduces weight, and the 1-hole piston configuration ensures consistent handling over bumps.
Dampening.
All-new rear POD spring replaces the center shock spring, improving forward traction while offering increased adjustability and lower CG. A versatile soft rear spring is included in the kit.
The spring holder accommodates both conical / progressive and straight / linear springs.
Battery Mount System.
The new battery mounting system works with the graphite rear brace and front battery back stop for easy and convenient battery installation / removal.
Side Link Mounting System.
The narrower and lighter side link stands and M2.5 screws reduce weight. The side link stand features a 2-pin design for more rigidity and increased tweak resistance.
The POD linkage angle adjustment provides additional fine set-up tuning.
Side Braces.
All-new narrower side braces purposely designed to accommodate the new chassis profile for enhanced chassis stiffness. The narrow width saves weight and creates more space for electronics.
Braces use new thinner M2.5 posts and screws for additional weight savings and remove weight from outer perimeter locations for improved rotation.
Front Lower Arms.
The shape of the arm is redesigned around the mounting area to be more robust for improved durability. The extra material reinforces the arm and reduces risk of breakage in serious crashes.
The arm’s special carbon material with a stronger compound hardness reduces flex, increases stability and improves drivability in high traction conditions.
The front lower arm also features two mounting positions to set the car’s front width depending on the tires used to achieve correct front track width.
