XRAY X4’25 1/10 Luxury Electric Touring Car Alu Edition 300041

XRAY X4’25 1/10 Luxury Electric Touring Car Alu Edition 300041

Name: XRAY X4'25 1/10 Luxury Electric Touring Car Alu Edition 300041
Brand: XRAY
SKU: X300041
Price: 789.98 EUR
Availability: OutOfStock

€ 789,98 inc. BTW

Uitverkocht

Want to be notified when this product is back in stock?

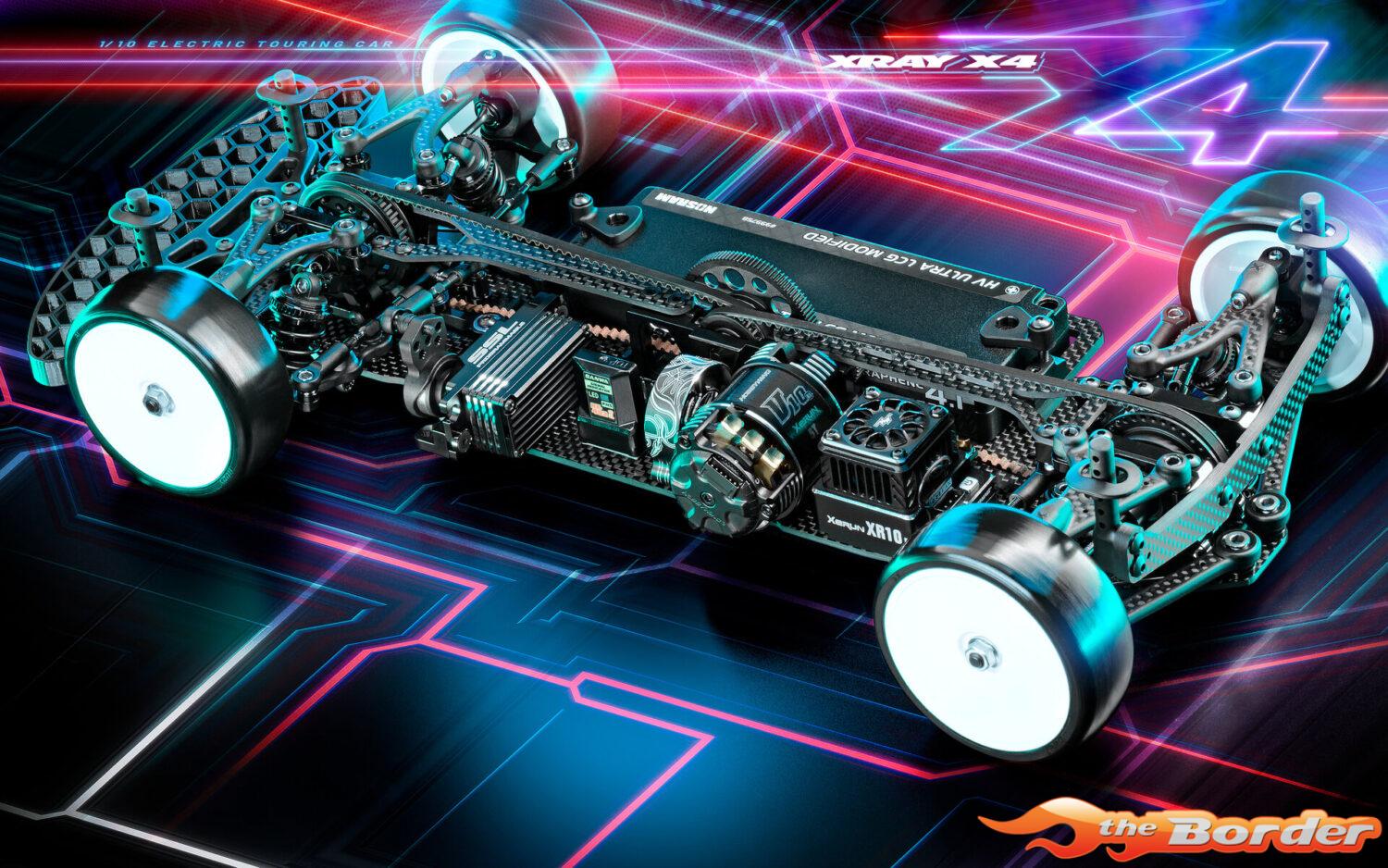

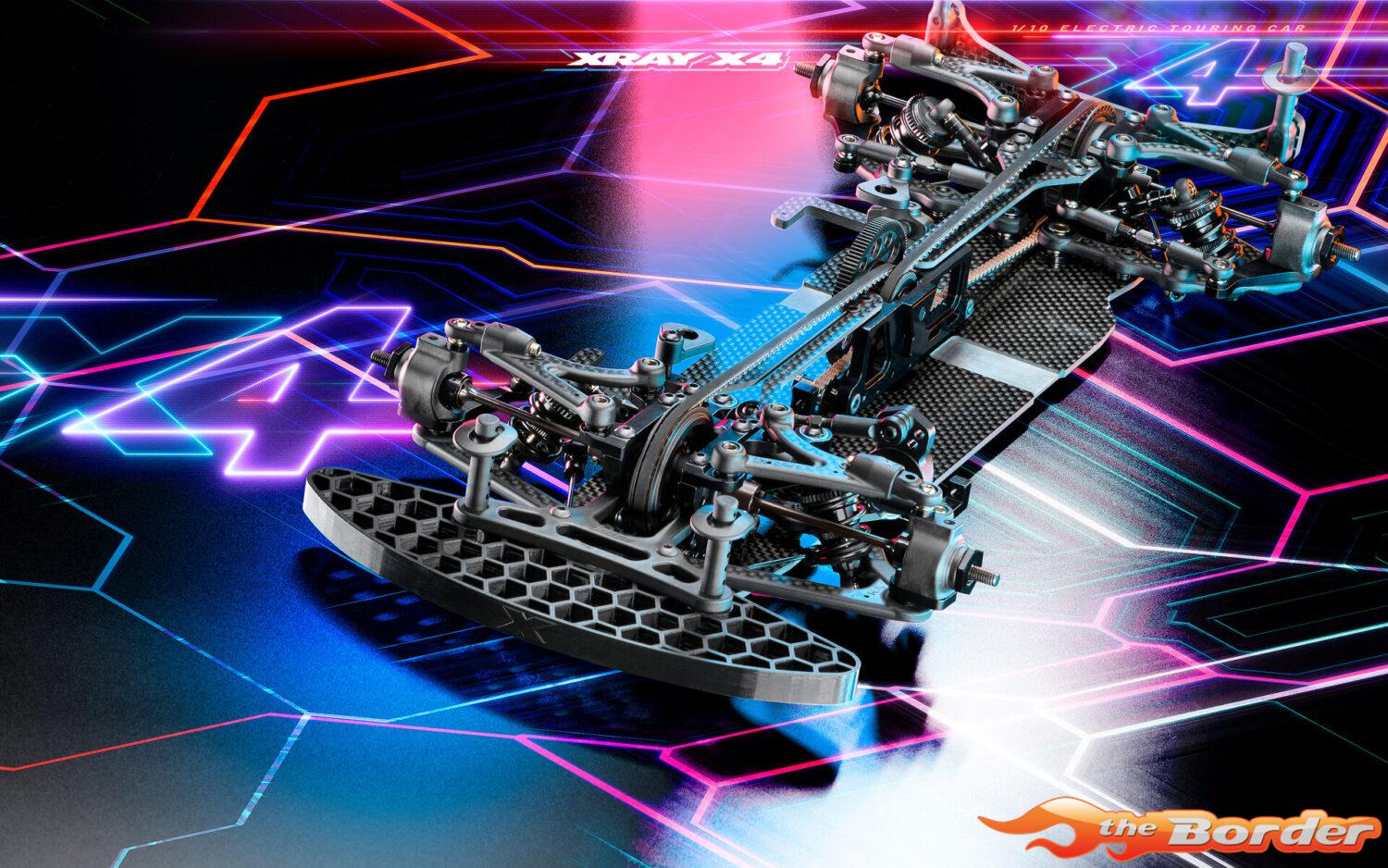

XRAY X4’25 1/10 Luxury Electric Touring Car Alu Edition 300041

XRAY X4’25 All-new Features:

All-new shorter shocks positioned 3mm lower than previous geometry improve cornering speed, mid-corner steering and stability, as well as reduced traction rolling in high traction conditions
New shock holders relocate upper shock mount position to compliment shorter shock geometry
All-new link style upper suspension arms included in the kit as an alternative to the traditional CFF upper arms for maximum adjustability & improved handling in certain conditions
Aluminum one-piece low CG servo holder with 3 mounting configurations
Low profile 3D printed rubber bumper included in kit for improved durability and airflow
One-piece low profile upper front bumper for lower CG
All-new flex limiting top deck shims for improved stability
Wider wheel hubs included in the kit for the best all-around performance out of the box

XLP vs XLP2.

All-new XLP2 shocks are 4mm lower compared to the previous XLP, improving cornering speed, mid-corner steering and stability, and minimizing traction rolls in high traction conditions.

All the XLP shock parts are specifically designed for the smallest possible size to reduce the weight and keep the lowest possible CG.

Shock bodies are CNC-machined from premium Swiss 7075 T6 aluminum and hardened to ensure the maximum lifespan. The aluminum upper and lower nuts have a low-profile design, including sealing O-ring and upper composite ball joint. The shock shaft, shock adjustable nut, spring retainer and pivot balls are designed to achieve the lowest shock height possible.

The included shock pistons sets are 4-hole pistons with 1.1 and 1.2mm diameter holes. The pistons are molded using a special process and composites to ensure extreme roundness while maintaining maximum stiffness and durability.

Shock Holders.

Made possible by the shorter XLP2 shocks, new shock holders relocate the upper shock mount position 3mm lower. The new geometry improves cornering speed, mid-corner steering and stability, and reduces traction rolling in high traction conditions.

Servo Mount.

All-new aluminum one-piece low CG servo holder with 3 mounting position options. The new mount uses fewer parts to lower CG and reduce weight.

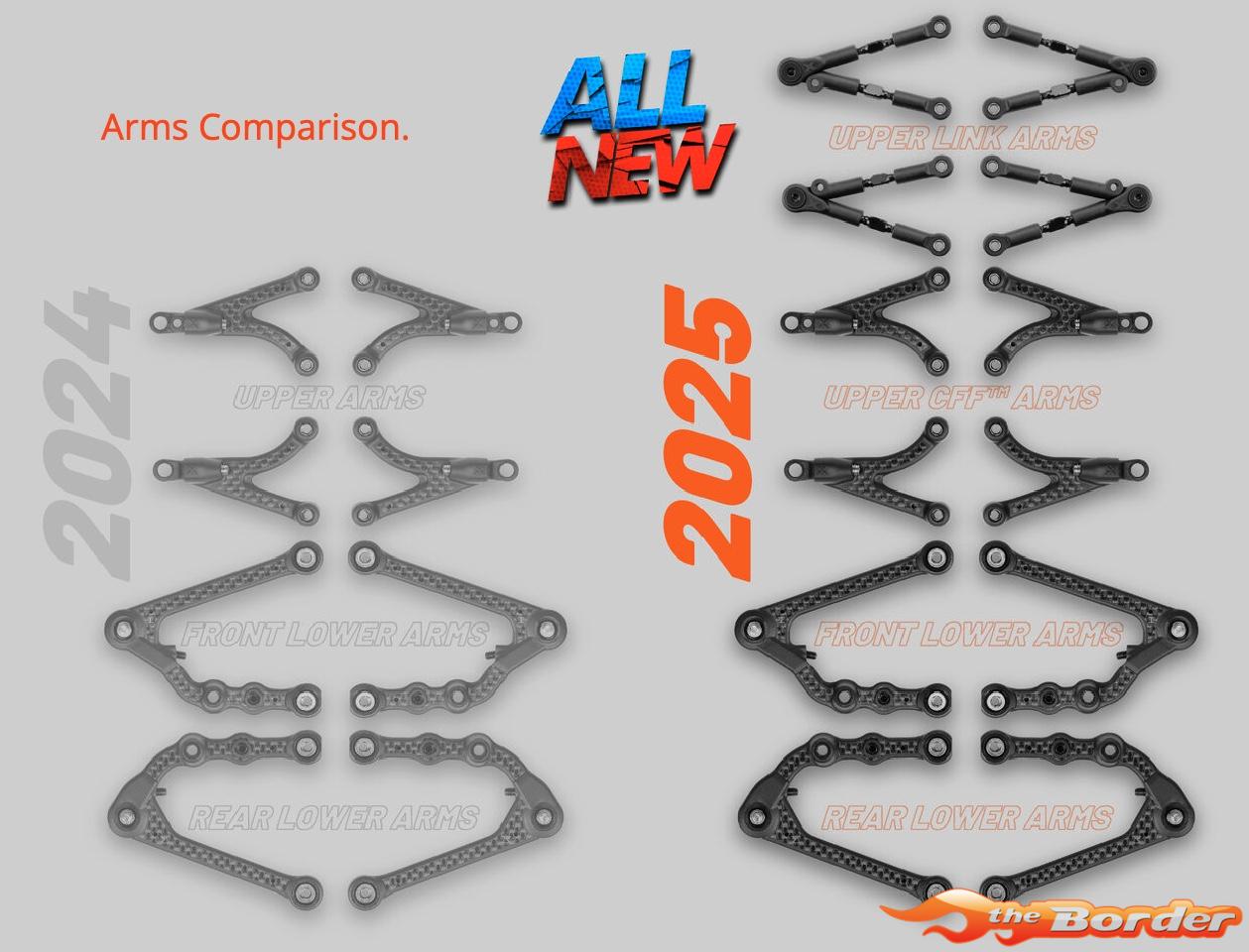

Upper Link Arms.

New adjustable link upper suspension arms provide an alternative to the traditional CFF™ upper arms for maximum adjustability, and improved handling in certain conditions. The links further expand the adjustment possibilities of the X4.

XRAY X4'25 1/10 Luxury Electric Touring Car Graphite Edition 300040

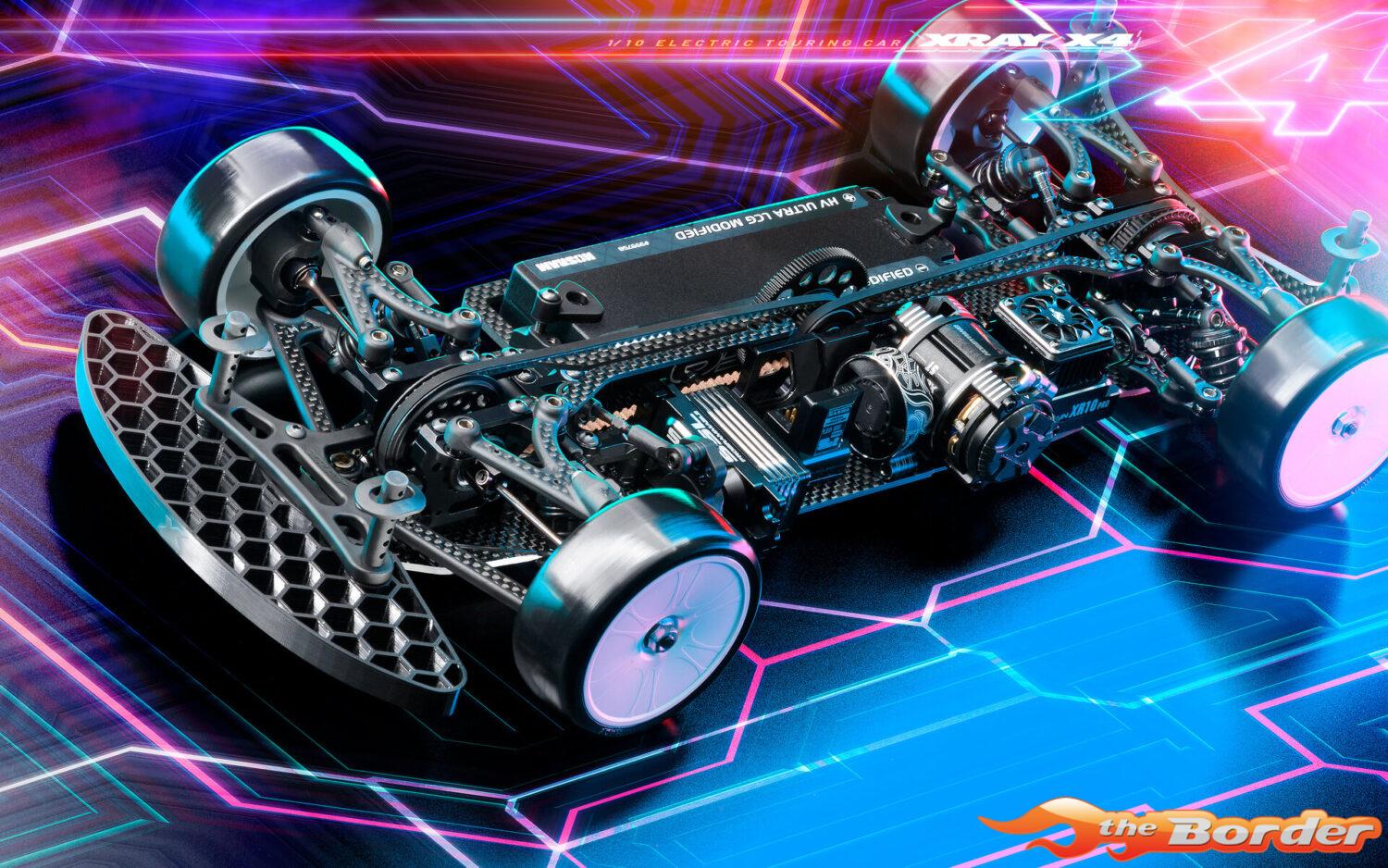

3D Printed Bumper.

Low-profile 3D printed rubber bumper is included in the kit for improved durability and airflow. The lightweight design contributes to a low CG and enhances the look of the car. The 3D printed rubber material has a longer life and much improved durability over a traditional foam front bumper.

Upper Bumper Brace.

New one-piece low profile upper front bumper lowers CG and further improves the aesthetics of the car. The new front upper bumper brace was created to match the 3D printed rubber bumper.

Top Deck Shims.

All-new flex limiting top deck shims improve stability. The specially made steel shims can be fitted under the top deck flex screws for reduced flex. The shims provide an additional method to fine tune the car’s handling for different conditions. The shims can be used independently between the front and rear top decks.

Wheel Hubs.

Wider wheel hubs now included in the kit for the best all-around performance out of the box. The wider wheel hubs provide more forgiving handling with improved cornering speed & stability.
